Gardner Spring MW1235-014 Wave Disc Spring 1.235 Od

Product Description

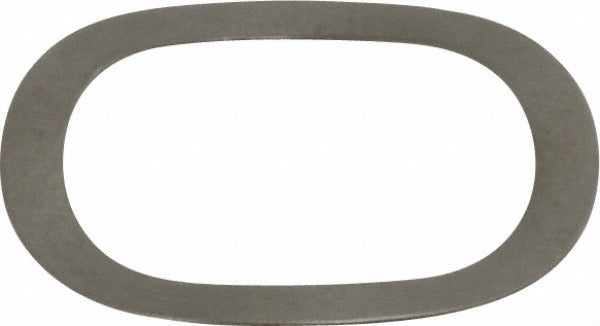

The GARDNER SPRING MW1235-014 is a wave disc spring designed to deliver controlled axial load in compact mechanical assemblies. With a 1.235-inch outside diameter, 0.961-inch inside diameter, and an overall height of 0.087 inches, this spring fits tight tolerances in precision applications. It delivers a load of 15 pounds at deflection and 10.80 pounds at flat, making it well suited for applications that require consistent preload or cushioning across a very short travel distance. Constructed from Grade 1074 steel, this spring offers reliable performance in industrial and mechanical service environments. Machinists, mechanical assemblers, and maintenance technicians are the typical installers.

Wave disc springs are commonly used in rotating assemblies, shaft retention systems, bearing preload applications, and valve mechanisms where axial space is limited. The MW1235-014 is sized for inch-measurement systems and fits assemblies requiring a 1.235-inch OD seat. Its 0.014-inch thickness and low overall height of 0.087 inches make it appropriate for stacked configurations or single-spring preload setups in both industrial equipment and precision mechanical devices.

Key Features

• 1.235-inch outside diameter for precise bore fitment
• 0.961-inch inside diameter accommodates standard shaft sizes
• 15 lb load at deflection and 10.80 lb load at flat for predictable spring rate
• 0.087-inch overall height enables use in space-constrained assemblies
• Grade 1074 steel construction for consistent mechanical performance
• Inch measurement system for direct compatibility with standard engineering drawings

Compatibility

Designed as an OEM-style replacement or standard component for mechanical assemblies requiring a wave disc spring with a 1.235-inch OD, 0.961-inch ID, and 0.087-inch overall height in inch-dimensioned systems.

Installation Notes

Wave disc springs are installed by qualified mechanical assemblers or maintenance technicians working on rotating or static shaft assemblies. Always depressurize or de-energize the assembly before disassembly and spring replacement. Verify bore and shaft dimensions against spring OD and ID before installation to ensure proper seating. Do not exceed the rated deflection load to avoid permanent deformation of the spring.
