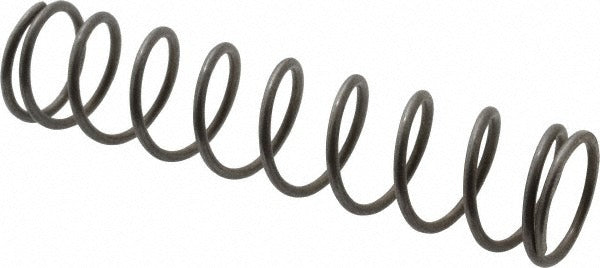

Gardner Spring MC106-0625-M Compression Spring 0.541in Od

Product Description

The GARDNER SPRING MC106-0625-M is a precision compression spring manufactured from stainless steel with a plain finish. It features a 0.541-inch outside diameter and a 2.461-inch free length, with closed and ground ends for consistent seating and load transfer. The spring delivers a maximum work load of 69.04 pounds and a spring rate of 7.60 pounds per inch, making it well-suited for applications that demand repeatable, controlled deflection. Licensed trades and mechanical assembly professionals working with precision spring-loaded mechanisms will find this part meets tight dimensional and load tolerances.

This compression spring is used in mechanical assemblies requiring reliable axial force across a defined travel range. Its closed and ground ends allow it to seat flat against mating surfaces without tipping, making it appropriate for valves, actuators, clamps, tooling fixtures, and similar industrial or trade-service equipment. The spring conforms to DIN 17223, DIN 17224, and DIN 2095 standards, which is relevant for applications where dimensional traceability or material certification is required.

Key Features

• Closed and ground ends for flat, stable seating against mating surfaces
• Maximum work load of 69.04 pounds with a spring rate of 7.60 pounds per inch
• Stainless steel construction with plain finish for corrosion resistance in service environments
• Meets DIN 17223, DIN 17224, and DIN 2095 dimensional and material standards
• Solid height of 0.517 inches limits over-compression during install and operation
• Wire diameter of 0.0492 inches provides consistent coil geometry across the spring body

Compatibility

Designed as an OEM-style precision compression spring for mechanical assemblies requiring a 0.541-inch OD, 2.461-inch free length, closed and ground end configuration.

Installation Notes

Install this spring after depressurizing or de-energizing any system or mechanism it will be seated in. Confirm the mating bore or spring pocket dimensions match the outside diameter before seating to prevent lateral buckling under load. Do not compress the spring beyond its solid height of 0.517 inches. Mechanical or industrial technicians should verify load and rate requirements against the assembly specification before substituting this part.
