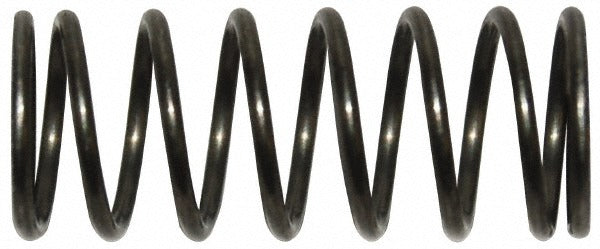

Gardner Spring MC060-0162-M Compression Spring 0.433in Od

Product Description

The GARDNER SPRING MC060-0162-M is a precision compression spring designed for applications requiring consistent, repeatable force in a compact form factor. Built from stainless steel with a plain finish, this spring measures 0.433 inches in outside diameter and 0.638 inches in free length. It delivers a maximum work load of 337.35 pounds and a spring rate of 100.03 pounds per inch, making it suited to mechanical assemblies where accurate load response is critical. End type is closed and ground for flat, stable seating against mating surfaces. Licensed technicians and mechanical assemblers working in precision equipment will find this spring a direct-fit solution for demanding environments.

This spring is appropriate for use in precision mechanical, industrial, and OEM assembly applications. Its compact dimensions and stainless steel construction make it a strong candidate for environments where corrosion resistance is needed alongside tight dimensional tolerances. The closed and ground ends allow consistent contact with spring seats or retainer pockets. It is sold in packages of five, with a minimum order quantity of one package, which suits both service and production-line use cases.

Key Features

• Stainless steel construction provides corrosion resistance in demanding environments
• Closed and ground ends ensure flat, stable seating and accurate load transfer
• Outside diameter of 0.433 inches and free length of 0.638 inches for compact fitment
• Maximum work load of 337.35 pounds supports high-load precision assemblies
• Spring rate of 100.03 pounds per inch delivers predictable, linear force response
• Meets DIN 17223, DIN 17224, and DIN 2095 standards for precision spring manufacturing

Compatibility

Designed as an OEM-style precision compression spring suitable for mechanical assemblies, industrial equipment, and engineered systems requiring a closed and ground end spring with a 0.433-inch outside diameter.

Installation Notes

Installation is typically performed by mechanical assemblers or maintenance technicians working on precision equipment. Power down or de-energize any associated equipment before servicing spring-loaded assemblies. Verify that the spring seat or retainer pocket matches the outside diameter and solid height to prevent binding or misalignment during compression. Do not exceed the rated maximum work load to avoid permanent set or component damage.
