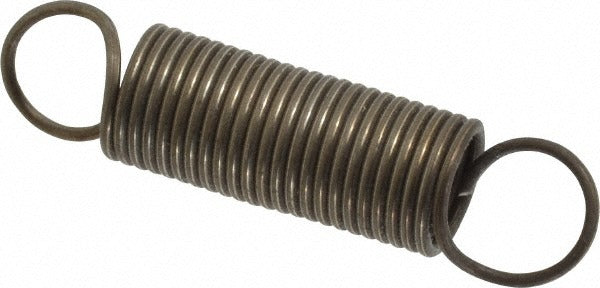

Gardner Spring GE0360-037-1500 Extension Spring 0.36 in Od

Product Description

The GARDNER SPRING GE0360-037-1500 is a close-wound extension spring designed for light-duty mechanical and industrial applications. It features a 0.36 inch outside diameter, a 0.037 inch wire diameter, and a free length of 1.5 inches. The spring rate is 3.4 pounds per inch, with an initial tension of 0.5 pounds and a maximum extended length of 3.06 inches. The plain finish indicates no additional coating, making it suitable for dry or controlled environments. Sold in a package of three pieces, this spring is a practical choice for technicians who need on-hand stock for service calls or small equipment repairs.

This extension spring is appropriate for use in residential and light commercial mechanical assemblies, including HVAC components, control linkages, damper mechanisms, and small appliance or equipment applications. Its compact outside diameter and moderate spring rate suit installations where precise tension control over a short travel range is required. Service technicians and equipment maintenance professionals typically select this spring for OEM-style replacements or general-purpose tension applications in mechanical systems.

Key Features

• 0.36 inch outside diameter for compact fitment in tight assemblies
• 3.4 lb/in spring rate provides consistent, predictable tension
• 0.037 inch wire diameter suited for light-duty load requirements
• 1.5 inch free length with maximum extended length of 3.06 inches
• Initial tension of 0.5 pounds holds coils closed without preload
• Plain finish construction - no coating, suitable for controlled environments
• Packaged in quantities of three for efficient stock management

Compatibility

Designed as an OEM-style replacement extension spring for light-duty mechanical, HVAC control, and small equipment applications requiring a 0.36 inch outside diameter and 1.5 inch free length.

Installation Notes

Extension springs should be installed by a qualified technician familiar with the equipment being serviced. Always de-energize or shut down the system before removing or replacing tension springs to prevent injury from sudden release. Use appropriate hand tools and eye protection when stretching or seating the spring hooks. Verify the replacement spring rate and dimensions match the original specification before completing installation.
