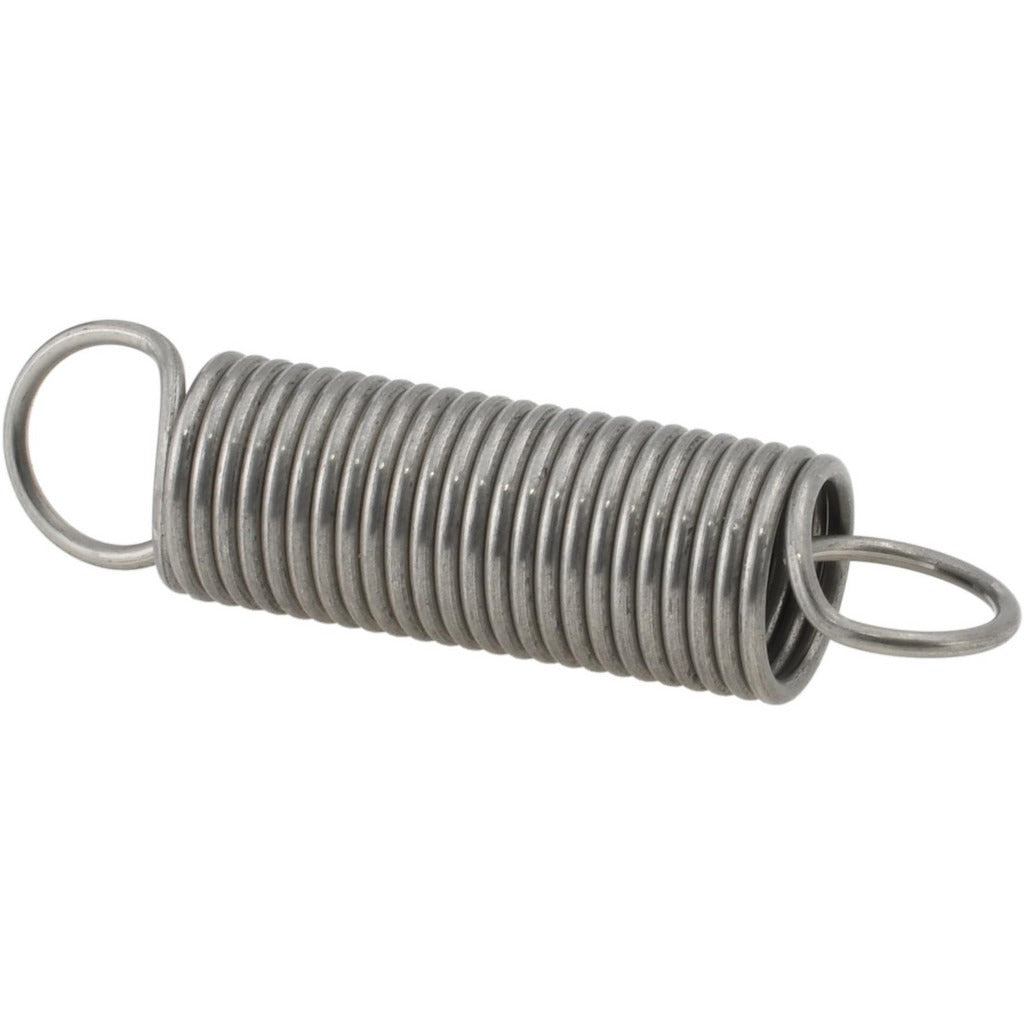

Gardner Spring GE0240-0220880S Extension Spring 0.24in Od

Product Description

The GARDNER SPRING GE0240-0220880S is a small-diameter stainless steel extension spring designed for light-duty tensioning and return applications across mechanical, HVAC, and industrial assemblies. It measures 0.24 inches in outside diameter with a free length of approximately 0.88 inches and a maximum extended length of 2 inches. The wire diameter is 0.022 inches, and the spring rate is 1.4773 pounds per inch. The plain finish stainless steel construction resists corrosion in demanding or exposed service environments. This spring is sold in a package of 3 pieces, making it suitable for small-batch repairs or prototype builds handled by mechanical technicians and field service professionals.

This extension spring is suited for compact mechanical linkages, control assemblies, and light-load return mechanisms found in residential and commercial HVAC equipment, plumbing controls, and general industrial hardware. The small OD and fine wire diameter make it appropriate for tight-clearance installations where a lightweight tensioning element is required. Technicians working on damper linkages, valve return assemblies, or similar control components will find this spring a direct fit for applications requiring a consistent, low-force pull.

Key Features

• 0.24 inch outside diameter for use in compact, tight-clearance assemblies
• 1.4773 lb/in spring rate provides consistent, predictable tensioning force
• Maximum extended length of 2 inches with 0.022 inch wire diameter
• Initial tension of 0.1651 pounds for controlled preload behavior
• Maximum work load rated at 1.870 pounds
• Plain finish stainless steel construction for corrosion resistance in exposed environments

Compatibility

Designed as an OEM-style replacement or service spare for light-duty extension spring applications in mechanical and HVAC control assemblies requiring a 0.24 inch OD stainless steel spring with a 1.4773 lb/in spring rate.

Installation Notes

Installation should be performed by a qualified technician familiar with the mechanical assembly being serviced. De-energize or shut down the equipment and relieve any existing spring tension before removing the old spring. Stretching extension springs beyond their rated maximum extended length of 2 inches may cause permanent deformation or failure. Use appropriate small-component pliers or hook tools to seat the spring ends securely in their anchor points.
