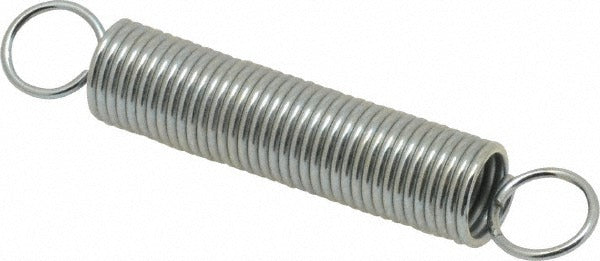

GARDNER SPRING Gardner Spring E44C Extension Spring 8.03 Lb Cross-over

Gardner Spring E44C Extension Spring 8.03 Lb Cross-over

SKU: E44C
Availability: In Stock

Ships same day if ordered by 12 pm

$28.02
$28.02
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The GARDNER SPRING E44C is a zinc-plated steel extension spring designed to store and release tension energy in mechanical assemblies. It features a cross-over end style, a 0.437 inch outside diameter, and a 0.0475 inch wire diameter. The spring delivers a rated spring rate of 3.08 lb/in and supports a maximum work load of 8.03 pounds. At maximum extension, the working length reaches 4.82 inches, while the free overall length is 2.75 inches. This spring is suited for light-duty mechanical applications and is installed by maintenance technicians, equipment service professionals, and mechanical trades workers.

The E44C is appropriate for use in light mechanical equipment, HVAC components, access panels, latching mechanisms, and similar assemblies requiring a compact tension spring. The cross-over end style allows for straightforward hook engagement in standard spring anchor points. Sold in packages of 12 units, making it practical for service fleets and shops that replace these springs regularly.

Key Features

  • Cross-over end style for standard hook engagement in mechanical assemblies
  • Zinc-plated steel construction for corrosion resistance in typical service environments
  • 3.08 lb/in spring rate for consistent, predictable tension across the working range
  • Maximum work load of 8.03 pounds with a maximum extended length of 4.82 inches
  • Compact free length of 2.75 inches for installations with limited clearance
  • Packaged in quantities of 12 for shop and fleet service use

Compatibility

Designed as a direct-replacement extension spring for light mechanical assemblies requiring a 0.437 inch OD, cross-over end, zinc-plated steel tension spring with a 3.08 lb/in spring rate.

Installation Notes

Extension springs should be installed and removed by qualified mechanical or HVAC service technicians. Disconnect or de-energize the host equipment before servicing any spring-loaded components to prevent injury from stored tension energy. Use appropriate spring installation tools to seat the cross-over ends fully into anchor points. Inspect anchor hardware for wear or deformation before installing a replacement spring.

Technical Specifications
Maximum Work Load
8.03 pounds
Spring Rate
3.08 lb/in
Maximum Extended Length
4.82 inches
Overall Free Length
2.75 inches
Outside Diameter
0.437 inches
Wire Diameter
0.0475 inches
End Style
Cross-Over
Material
Steel
Finish
Zinc-Plated
Package Quantity
12 pieces
Weight
0.05 pounds
Brand
GARDNER SPRING
Manufacturer Part Number
E44C
