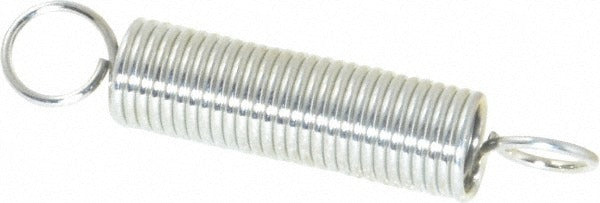

Gardner Spring E24C Extension Spring 0.312in Od Cross-over

Product Description

The GARDNER SPRING E24C is a small-diameter steel extension spring designed for light-duty tensioning and return applications across mechanical assemblies and equipment maintenance scenarios. It measures 0.312 inches in outside diameter with an overall length of 1.75 inches and a maximum extended length of 2.98 inches. The wire diameter is 0.0348 inches, and the spring delivers a rate of 2.98 pounds per inch with a maximum work load of 4.64 pounds. A zinc-plated finish provides basic corrosion resistance for general indoor use. HVAC technicians, equipment repair professionals, and maintenance trades stock these springs as replacement components in control linkages, damper mechanisms, and light tensioning assemblies.

This spring is suited for residential and light commercial applications where a small, precise extension spring is required. Typical installations include HVAC control linkages, door latching mechanisms, panel retainers, and similar assemblies that require consistent return tension. The cross-over end style facilitates straightforward attachment to hooks, pins, or slots in both original-equipment and field-fabricated mounting arrangements. Sold in packages of 12, the E24C is a practical stocking item for technicians who service equipment with small spring components.

Key Features

• Cross-over end style for easy attachment to hooks, pins, and standard mounting slots
• 0.312 inches outside diameter with 0.0348 inches wire diameter for precise, consistent tensioning
• 2.98 lb/in spring rate with 4.64 lb maximum work load
• Zinc-plated steel construction for corrosion resistance in general service environments
• Maximum extended length of 2.98 inches from an overall length of 1.75 inches
• Packaged in quantities of 12 to support stocking and field service needs

Compatibility

Designed as an OEM-style replacement extension spring for light-duty mechanical assemblies, control linkages, and tensioning applications requiring a 0.312 inch OD cross-over end spring with a 2.98 lb/in rate.

Installation Notes

Installation is typically performed by HVAC technicians or general mechanical maintenance personnel. Always de-energize or shut down the equipment before servicing spring-loaded components to prevent unexpected movement or injury. Use appropriate hand tools and safety glasses when stretching or seating extension springs, as sudden release can cause injury. Verify the replacement spring rate and maximum load against the original equipment specification before installation.
