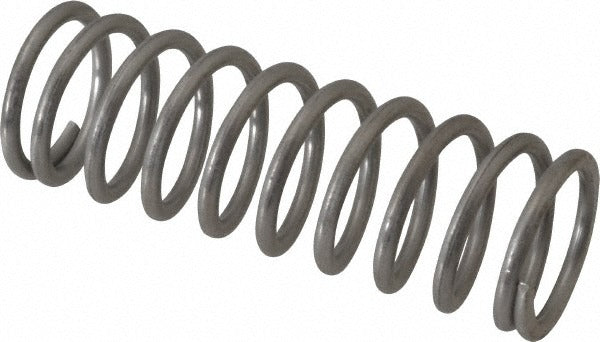

Gardner Spring 36602GS Precision Compression Spring

Product Description

The GARDNER SPRING 36602GS is a precision compression spring manufactured from AISI 302 stainless steel with a plain finish. It features a 0.845 inch outside diameter, a free length of 2.5 inches, and a wire diameter of 0.091 inches. The spring delivers a maximum work load of 42 pounds and a spring rate of 24.35 pounds per inch, making it suitable for applications requiring consistent, repeatable force over a defined travel range. Closed and ground ends provide stable seating and accurate load transfer. This part is typically installed by mechanical technicians, maintenance professionals, and trade workers in industrial and mechanical assemblies.

This compression spring is appropriate for use in light to medium-duty mechanical applications where a compact, corrosion-resistant spring is required. The stainless steel construction makes it well-suited for environments with moisture exposure or chemical contact. With a solid height of 0.975 inches and a recommended hole diameter of 0.875 inches, it fits standard spring pockets in valves, actuators, fluid-handling components, and general mechanical assemblies across HVAC, plumbing, and industrial equipment.

Key Features

• Outside diameter of 0.845 inches with a recommended hole diameter of 0.875 inches for precise pocket fit
• Free length of 2.5 inches and solid height of 0.975 inches for defined compression travel
• Maximum work load of 42 pounds with a spring rate of 24.35 pounds per inch
• Wire diameter of 0.091 inches wound to closed and ground ends for stable load seating
• AISI 302 stainless steel construction with plain finish for corrosion resistance
• Meets AISI 302, ASTM A228, and ASTM A313 standards

Compatibility

Designed as an OEM-style precision compression spring for use in mechanical assemblies requiring a 0.845 inch OD closed and ground end spring in stainless steel construction.

Installation Notes

Installation is typically performed by qualified mechanical or maintenance technicians. Depressurize or de-energize the assembly before replacing any spring component. Confirm the spring pocket diameter and seating surface are clean and free of debris before installing. Verify the replacement spring free length and rate match the application requirements before returning the system to service.
