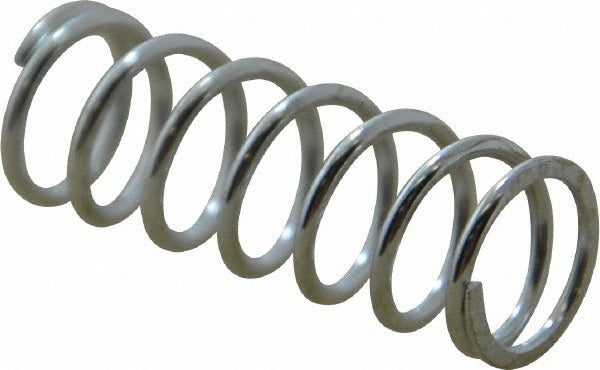

Gardner Spring 36416G Precision Compression Spring

Product Description

The GARDNER SPRING 36416G is a precision compression spring manufactured from AISI 302 music wire with a plain silver finish. It features a 0.36-inch outside diameter, a 1-inch free length, and a 0.0382-inch wire diameter. The spring delivers a maximum work load of 10 pounds and a spring rate of 15 pounds per inch. Closed and ground ends provide stable, flat seating under load. This type of spring is commonly installed by mechanical technicians, HVAC technicians, and industrial maintenance professionals working on equipment requiring reliable, repeatable compression force.

This precision compression spring suits residential and light commercial mechanical assemblies where consistent spring rate and accurate dimensional tolerances are required. Its compact profile and closed-ground end configuration make it well suited for use in valve assemblies, actuators, latching mechanisms, and similar applications where controlled axial load is critical. The 3/8-inch hole diameter compatibility allows straightforward installation over standard guide pins.

Key Features

• Closed and ground ends for flat, stable seating under axial load
• Music wire construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Spring rate of 15 pounds per inch for consistent, predictable compression response
• Maximum work load of 10 pounds with a solid height of 0.324 inches
• Plain silver finish suitable for general-purpose mechanical environments
• Fits guide holes up to 0.375 inches in diameter

Compatibility

Designed as an OEM-style precision compression spring for mechanical assemblies requiring a 0.36-inch outside diameter and 1-inch free length compression spring with closed and ground ends.

Installation Notes

Installation is typically performed by qualified mechanical or HVAC technicians. Ensure the mating bore or guide pin dimensions are confirmed before installation to prevent spring misalignment under load. Do not compress the spring beyond its solid height of 0.324 inches during installation or operation. Follow applicable equipment manufacturer guidelines and relevant codes when replacing springs in pressurized or safety-critical assemblies.
