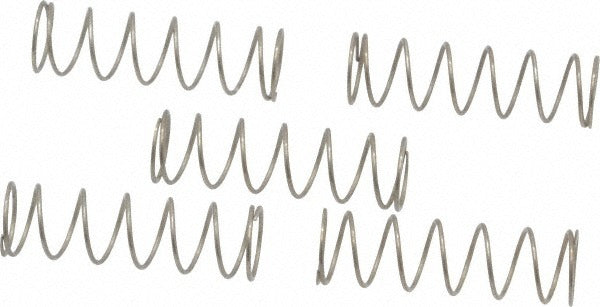

Gardner Spring 36347GS Compression Spring Stainless Steel

Product Description

The GARDNER SPRING 36347GS is a precision compression spring manufactured from stainless steel with a plain finish. It measures 0.3 inches outside diameter and 1 inch free length, with a wire diameter of 0.022 inches and a solid height of 0.181 inches. The spring delivers a rated spring rate of 2.43 pounds per inch and a maximum work load of 2 pounds (9.66 N). Featuring closed and ground ends, it is suited for applications requiring consistent, repeatable force in compact assemblies. Licensed technicians and precision assembly professionals install this component in mechanical systems across HVAC, plumbing, and industrial equipment.

This compression spring is intended for use in precision mechanical assemblies where a low-profile, small-diameter spring with controlled deflection is required. Its stainless steel construction makes it appropriate for environments with moisture exposure or corrosion risk, such as those found in HVAC equipment, valve assemblies, and fluid-control components. The closed and ground ends provide flat, stable seating surfaces, making it compatible with standard spring pockets and guide pins in residential and light commercial equipment.

Key Features

• Stainless steel construction resists corrosion in wet or humid service environments
• Closed and ground ends provide flat seating for stable, consistent load transfer
• 0.3 inches outside diameter fits into a 0.313-inch hole diameter for guided installation
• Spring rate of 2.43 pounds per inch delivers predictable, linear force across the travel range
• Maximum work load of 2 pounds (9.66 N) suits light-duty precision mechanism applications
• Precision spring type ensures tight dimensional tolerances for repeatable performance

Compatibility

Designed as an OEM-style precision compression spring for use in compact mechanical assemblies requiring a 0.3-inch OD, 1-inch free length spring with closed and ground ends.

Installation Notes

Installation is performed by qualified technicians as part of a mechanical assembly or repair procedure. De-energize and isolate all relevant systems before disassembly. Verify the spring pocket or guide pin diameter against the 0.313-inch hole diameter specification before installation. Do not stretch or preload the spring beyond its maximum work load rating during installation.
