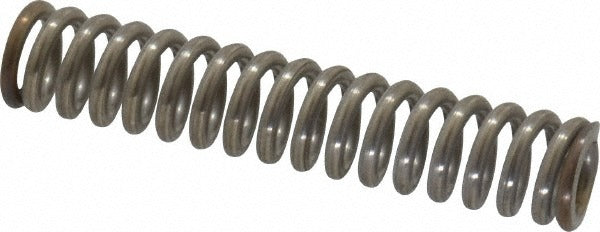

Gardner Spring 36344GS Precision Compression Spring

Product Description

The GARDNER SPRING 36344GS is a precision compression spring manufactured from stainless steel to AISI 302 and ASTM A313 standards. It features a 0.24 inch outside diameter, a 1.25 inch free length, and a 0.0421 inch wire diameter. The spring delivers a spring rate of 33.04 pounds per inch and supports a maximum work load of 18 pounds. Closed and ground ends provide consistent seating and accurate load distribution. This spring suits applications in HVAC controls, valve assemblies, plumbing components, electrical enclosures, and general mechanical assemblies where repeatable force characteristics are required.

This compression spring is suited for use in light-duty mechanical assemblies across residential and commercial trade applications. Its compact 0.24 inch OD fits standard 0.25 inch hole diameters, making it a direct-fit choice for switch mechanisms, valve actuators, pressure-relief assemblies, and similar components. Licensed tradespeople and equipment assemblers working with HVAC units, plumbing fixtures, or electrical control panels are the typical end users. The plain finish and silver color indicate no additional coating, which is appropriate for corrosion-resistant stainless steel stock.

Key Features

• Precision spring type with closed and ground ends for consistent load transfer and flat seating
• 0.24 inch outside diameter fits standard 0.25 inch hole diameters
• 33.04 lb/in spring rate provides predictable deflection under load
• Maximum work load rated at 18 pounds (73.45 N)
• Stainless steel construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Solid height of 0.756 inches limits compression travel and prevents coil bind

Compatibility

Designed as a precision OEM-style compression spring for mechanical assemblies requiring a 0.24 inch OD, 1.25 inch free length spring in a 0.25 inch hole diameter.

Installation Notes

Installation of compression springs should be performed by qualified technicians familiar with the equipment being serviced. De-energize and isolate all equipment before disassembling spring-loaded assemblies to prevent uncontrolled release of stored energy. Verify that the replacement spring rate and free length match the original specification before installation. Inspect mating seats and guide holes for wear or damage prior to assembly.
