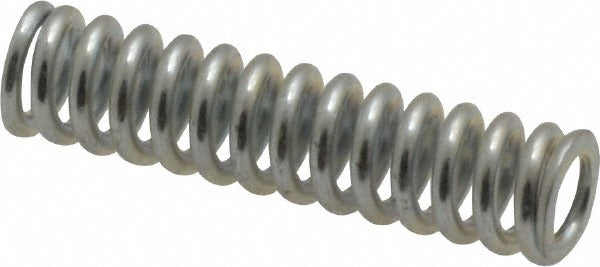

Gardner Spring 36341G Precision Compression Spring

Product Description

The GARDNER SPRING 36341G is a precision compression spring manufactured from music wire with a plain silver finish. It features a 0.24-inch outside diameter, a 1-inch free length, and a 0.0421-inch wire diameter. The spring delivers a rated spring rate of 48 pounds per inch and a maximum work load of 18 pounds (84.52 N). Closed and ground ends provide consistent seating and load transfer. This spring suits applications requiring tight dimensional tolerances and repeatable elastic performance across industrial, HVAC, plumbing, and mechanical assembly contexts.

This compression spring is suited for use in valve assemblies, actuator mechanisms, fluid control components, and general mechanical applications where a compact, high-tolerance spring is required. Its 0.25-inch hole diameter fitment and 0.621-inch solid height make it practical for confined spaces within equipment housings. Technicians and assemblers working on HVAC controls, plumbing valves, electrical actuators, or light industrial machinery will find this spring appropriate for precision replacement and OEM-style repair work.

Key Features

• Closed and ground ends for consistent load distribution and stable seating
• 48 pounds per inch spring rate for predictable, repeatable compression force
• 18-pound maximum work load with 84.52 N equivalent rating
• Music wire construction meets AISI 302, ASTM A228, and ASTM A313 standards
• 0.0421-inch wire diameter with plain silver finish - no coating to affect fit tolerances
• Compact 0.621-inch solid height suits tight-clearance assemblies

Compatibility

Designed as an OEM-style precision compression spring for mechanical, HVAC, plumbing, and industrial valve or actuator assemblies requiring a 0.24-inch OD and 1-inch free length compression spring.

Installation Notes

Installation is typically performed by licensed mechanical technicians or qualified assemblers. Relieve all system pressure or de-energize the assembly before replacing any spring component. Verify that the mating bore or housing matches the 0.25-inch hole diameter specification before installation. Avoid overcompressing the spring beyond its solid height of 0.621 inches, as doing so can permanently deform the coils and reduce rated performance.
