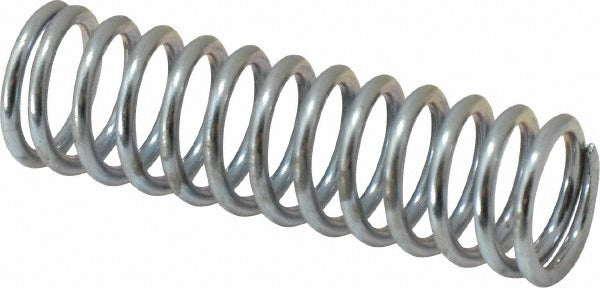

Gardner Spring 36113G Precision Compression Spring

Product Description

The GARDNER SPRING 36113G is a precision compression spring manufactured from music wire with a plain silver finish. It features a 0.6-inch outside diameter, a 2-inch free length, and a 0.072-inch wire diameter. The spring delivers a 26 lb/in spring rate and supports a maximum work load of 30 pounds (133.45 N). Closed and ground ends provide stable seating and consistent load transfer across the spring's working range. This type of spring is installed by mechanical technicians, maintenance professionals, and OEM assembly operations where precise load and deflection characteristics are required.

This compression spring is suited for light-duty mechanical assemblies in industrial, commercial, and OEM manufacturing applications. Its solid height of 0.939 inches and 5/8-inch hole diameter make it a practical fit for standard spring pockets. The music wire construction performs reliably in environments where consistent spring force and dimensional accuracy are priorities. Available in a package quantity of five units per order.

Key Features

• Precision spring type with closed and ground ends for flat, stable seating
• 26 lb/in spring rate for predictable deflection under load
• 30-pound maximum work load (133.45 N)
• Music wire construction conforming to AISI 302, ASTM A228, and ASTM A313 standards
• Plain silver finish suitable for general mechanical use
• 0.072-inch wire diameter with 0.939-inch solid height

Compatibility

Designed as an OEM-style precision compression spring for mechanical assemblies requiring a 0.6-inch outside diameter and 2-inch free length with a 5/8-inch hole diameter fitment.

Installation Notes

Compression springs should be installed by qualified mechanical or maintenance technicians familiar with spring-loaded assemblies. Relieve all tension and de-energize any associated equipment before removing or replacing springs. Verify that the spring pocket diameter and depth match the hole diameter and solid height specifications before installation. Do not compress the spring beyond its solid height during assembly or testing.
