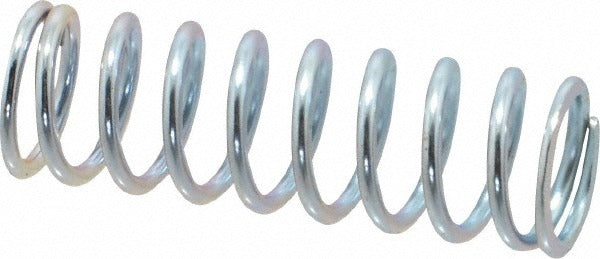

Gardner Spring 36095G Precision Compression Spring

Product Description

The GARDNER SPRING 36095G is a precision compression spring manufactured from music wire (AISI 302 / ASTM A228 / ASTM A313) with a plain silver finish. It delivers a spring rate of 22 lb/in and a maximum work load of 20 lb (88.97 N). The outside diameter measures 0.48 inches, the free length is 1.5 inches, and the wire diameter is 0.0551 inches. Closed and ground ends provide stable, flat seating under load. This spring suits engineers, maintenance technicians, and trade professionals who require consistent, repeatable force characteristics in mechanical assemblies.

This compression spring is used in a wide range of light-duty mechanical and industrial applications where controlled axial force is required. Typical install scenarios include valve assemblies, HVAC actuator mechanisms, pump components, and general equipment maintenance. The compact 0.48-inch OD fits inside a hole diameter of 0.50 inches, making it compatible with standard bored housings common in commercial and residential mechanical equipment. It is sold in packages of 5 with a minimum order quantity of 1 package.

Key Features

• Spring rate of 22 lb/in for predictable, linear force response
• 20 lb maximum work load (88.97 N) suitable for light-duty mechanical applications
• Music wire construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Closed and ground end type ensures flat, stable seating and accurate load transfer
• 0.0551-inch wire diameter with a solid height of 0.565 inches
• Plain silver finish with no coating that could affect dimensional tolerances

Compatibility

Designed as a precision OEM-style replacement or new-installation compression spring for mechanical assemblies requiring a 0.48-inch OD, 1.5-inch free length, closed and ground end spring in a 0.50-inch bore diameter housing.

Installation Notes

Installation is performed by mechanical or maintenance technicians using standard hand tools. De-energize and fully depressurize or de-load any assembly before removing or installing the spring. Confirm the housing bore diameter and free length clearance match the spring dimensions before seating. Do not compress the spring beyond its solid height of 0.565 inches during installation or operation.
