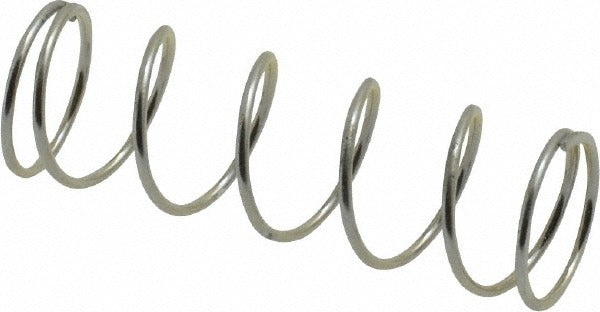

Gardner Spring 36059G Precision Compression Spring

Product Description

The GARDNER SPRING 36059G is a precision compression spring manufactured from music wire to AISI 302, ASTM A228, and ASTM A313 standards. It features a 0.36 inch outside diameter, a free length of 1.125 inches, and a wire diameter of 0.026 inches. The spring delivers a maximum work load of 3.5 pounds at a spring rate of 3.5 pounds per inch. With closed and ground ends and a plain silver finish, it is suited for compact mechanical assemblies requiring consistent, repeatable force. Maintenance technicians, equipment assemblers, and trade professionals working on small mechanisms install this spring in original-equipment and replacement applications.

This spring is appropriate for use in residential and light commercial mechanical systems, precision instruments, and trade equipment where a small-diameter, low-load compression spring is required. Its closed and ground end configuration provides stable seating and consistent axial load distribution. The 3/8 inch hole diameter clearance allows it to fit inside bored housings commonly found in valve assemblies, actuator mechanisms, and control components. Package quantity is 5 springs per unit with a minimum order quantity of 1 package.

Key Features

• Precision-wound to AISI 302, ASTM A228, and ASTM A313 standards
• Music wire construction for consistent tensile strength and fatigue resistance
• Closed and ground ends for flat, stable seating under load
• Spring rate of 3.5 pounds per inch with a maximum work load of 3.5 pounds
• Solid height of 0.19 inches minimizes compressed footprint in tight assemblies
• Plain silver finish suitable for indoor mechanical and light-duty applications

Compatibility

Designed as an OEM-style precision compression spring for mechanical assemblies requiring a 0.36 inch outside diameter spring with a 3/8 inch hole diameter fit and closed and ground ends.

Installation Notes

Installation is typically performed by mechanical technicians or assemblers working on small-force spring-loaded mechanisms. Depressurize or de-energize any assembly before removing or installing the spring to prevent uncontrolled release of stored energy. Verify the housing bore diameter and seating surface condition before installation. Do not compress the spring beyond its solid height of 0.19 inches during assembly.
