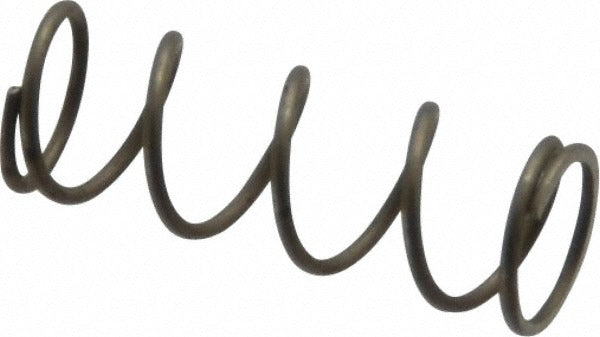

Gardner Spring 36013GS Compression Spring Stainless Steel

Product Description

The GARDNER SPRING 36013GS is a precision compression spring manufactured from stainless steel to AISI 302, ASTM A228, and ASTM A313 standards. It measures 0.18 inches outside diameter with a free length of 0.5 inches and a wire diameter of 0.0181 inches. The spring delivers a rate of 6.09 pounds per inch and a maximum working load of 2.07 pounds. Closed and ground ends provide flat, stable seating surfaces for consistent load transfer. Maintenance technicians, assemblers, and field service professionals working with small mechanical assemblies, valves, or instrumentation components use this part in precision applications where consistent spring force is critical.

This compression spring suits precision mechanical assemblies requiring a compact, corrosion-resistant return or load element. Its small outside diameter of 0.18 inches and short free length of 0.5 inches make it appropriate for tight-clearance installations in valves, switches, latches, fluid-control components, and similar light-duty mechanisms. The plain silver finish and stainless steel construction make it suitable for environments where mild corrosion resistance is required. It is sold in packages of five units with a minimum order quantity of one package.

Key Features

• Closed and ground ends for flat seating and accurate load application
• Stainless steel construction meets AISI 302, ASTM A228, and ASTM A313 standards
• Spring rate of 6.09 pounds per inch for predictable, linear deflection
• Maximum working load of 2.07 pounds within rated travel
• Outside diameter of 0.18 inches fits a hole diameter of 0.187 inches
• Solid height of 0.132 inches limits coil bind under full compression

Compatibility

Designed as a precision OEM-style compression spring for small mechanical assemblies, valves, instrumentation, and similar components requiring a 0.18-inch OD, 0.5-inch free length stainless steel spring.

Installation Notes

Installation is performed by mechanical assemblers or field service technicians during assembly or component rebuild. Verify the mating bore diameter and rod diameter against the spring outside diameter and solid height before installation to prevent coil bind or misalignment. Confirm that operating deflection does not exceed the range corresponding to the maximum working load of 2.07 pounds. Depressurize or de-energize any assembly before removing or replacing springs in fluid-control or electrical switch applications.
