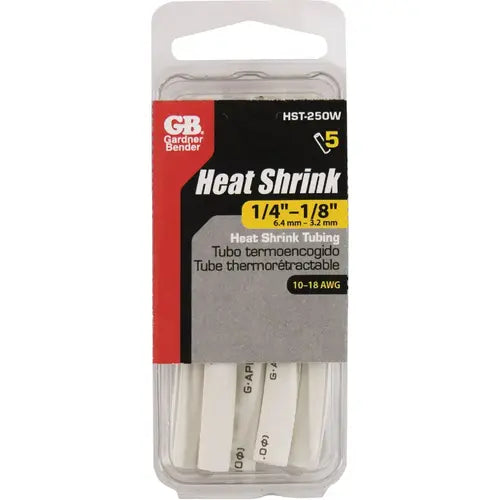

Gardner Bender HST-250W Heat Shrink Tubing 1/4 In. x 4 In.

Product Description

Gardner Bender HST-250W is a heat shrink tubing designed for various electrical applications. With a size of one quarter inch by four inches, this tubing provides effective insulation and protection for wires and cables.

• Compatible with 18 to 10 AWG wires
• Two to one shrink ratio for secure fit
• UL 224, CSA C22.2 approved

Product Highlights

This tubing is made from polyolefin material and is ideal for thin wall applications. The tubing shrinks at temperatures between two hundred fifty-seven degrees Fahrenheit to four hundred eighty degrees Fahrenheit, providing a reliable seal for electrical connections.

Product Information

Standard Information

• Manufacturer: Gardner Bender
• Brand: Gardner Bender

Technical Specifications

• Expanded Diameter: 1/4 inch
• Recovered Diameter: 1/8 inch
• Temperature Rating: 40 to 257 degrees Fahrenheit
• Shrink Ratio: 2:1
• Dielectric Strength: 600 volts per mil
• Standards: MIL-DTL-23053/5, AMS 3636/3637, Def Stan 59-79
• Unique Product Key: 6099294
