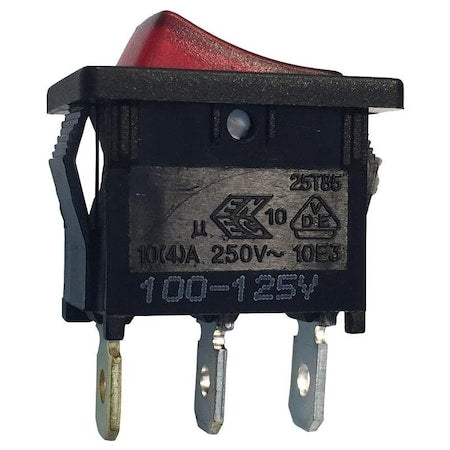

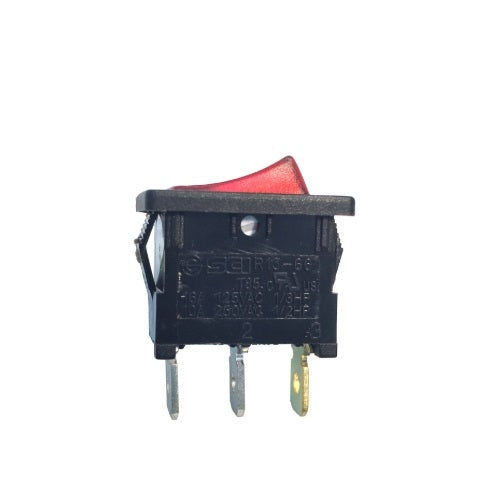

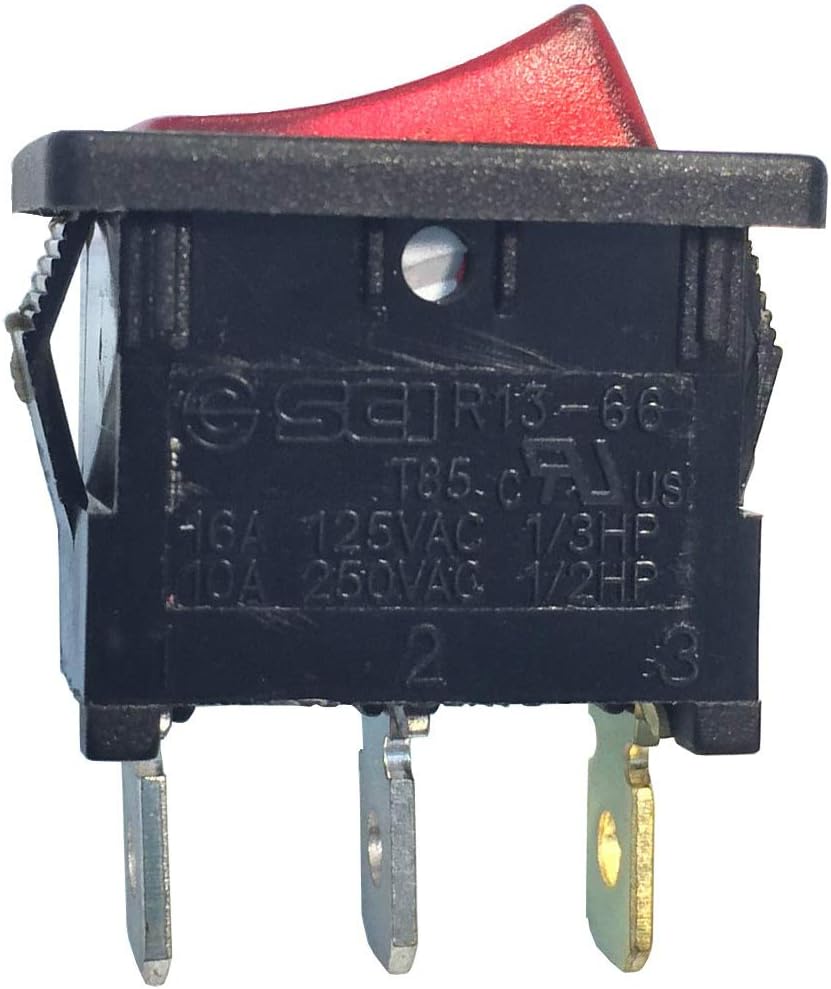

Gardner Bender GSW-48 Electrical Mini-Rocker Switch SPST ON-OFF 13 A/125V AC Spade Terminal

Product Description

The Gardner Bender GSW-48 Electrical Mini-Rocker Switch is a SPST, ON-OFF switch operating at 13 A/125V AC with a spade terminal. This mini rocker switch is suitable for various applications. It features a single pole circuit type and is constructed with brass contact material. The switch is designed for panel mounting.

• SPST, ON-OFF operation
• 13 A/125V AC
• Spade terminal

Product Highlights

This mini rocker switch is ideal for industrial controls, computer equipment, home appliances, van conversions and lighting panels.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: GSW-48
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Color: Red Light
• Style: Mini
• Voltage: 120 Volts
• Circuit Type: 1-way
• Contact Type: Spst
• Actuator Type: Rocker
• Current Rating: 15 Amps
• Contact Material: Brass
• Lower Temperature Rating: 1 Degrees Celsius
• Upper Temperature Rating: 75 Degrees Celsius
• Product Dimensions: 1.52-in X 0.80-in X 0.42-in
• Certificate: cUL/UL Listed, RoHS Compliant
• Switch Type: Rocker
• Mounting Type: Panel Mount
• Part Number: GSW-48
• Item model number: GSW-48
• Current Type: AC
• Operation Method: On/Off
• Switch Style: Decorator/Rocker
• Features: Illuminated
• Model: GSW-48
