Product Description

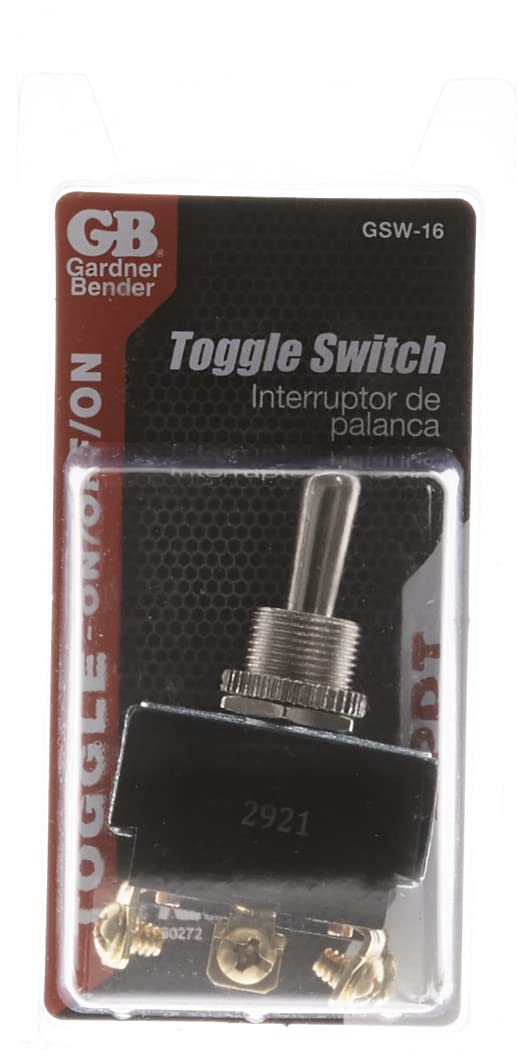

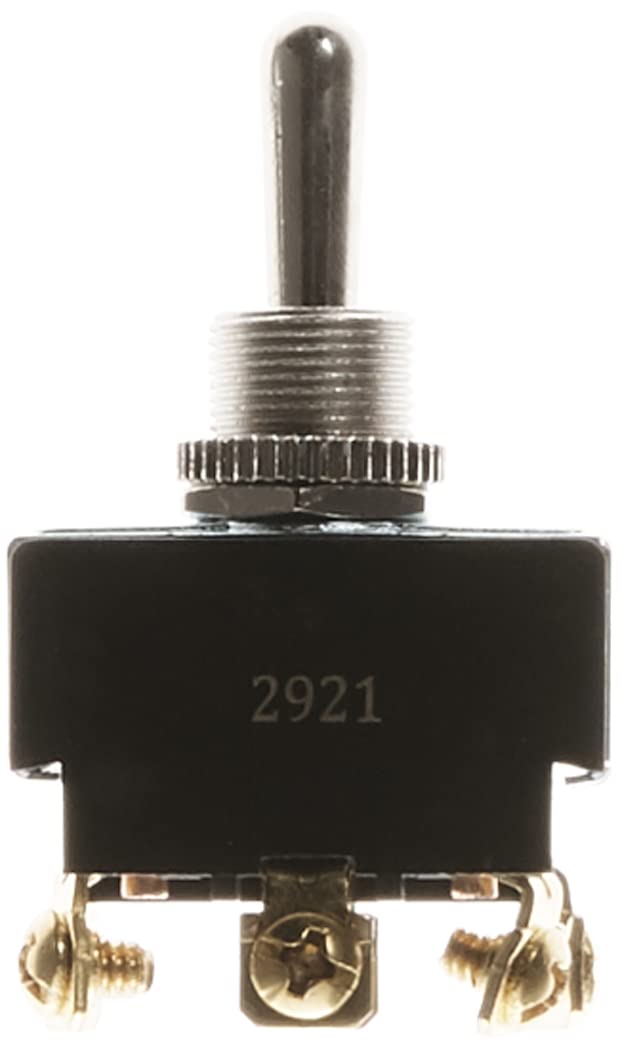

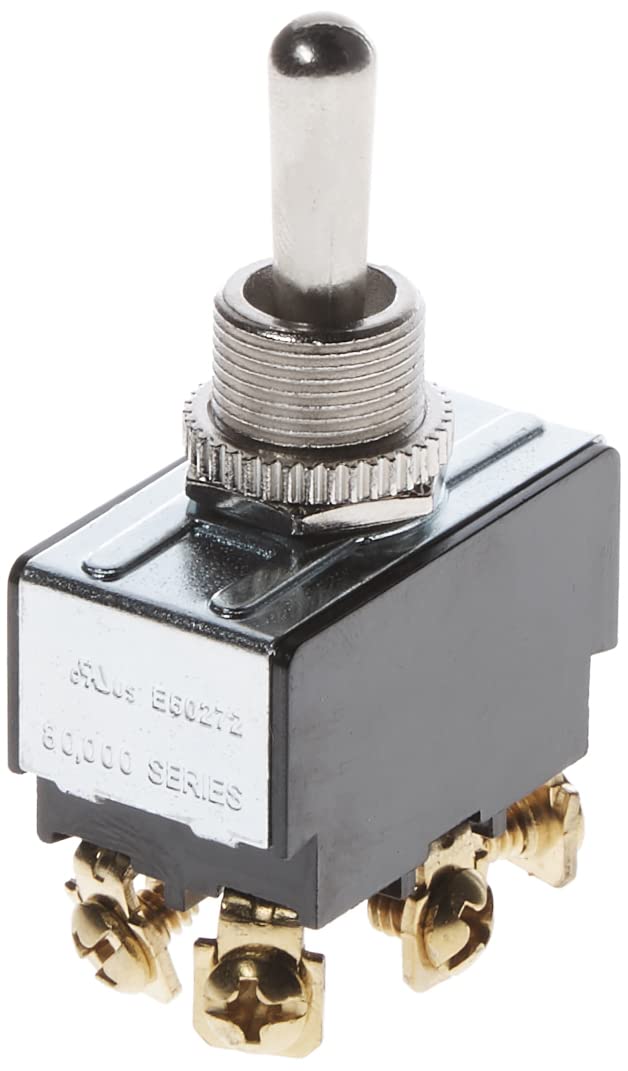

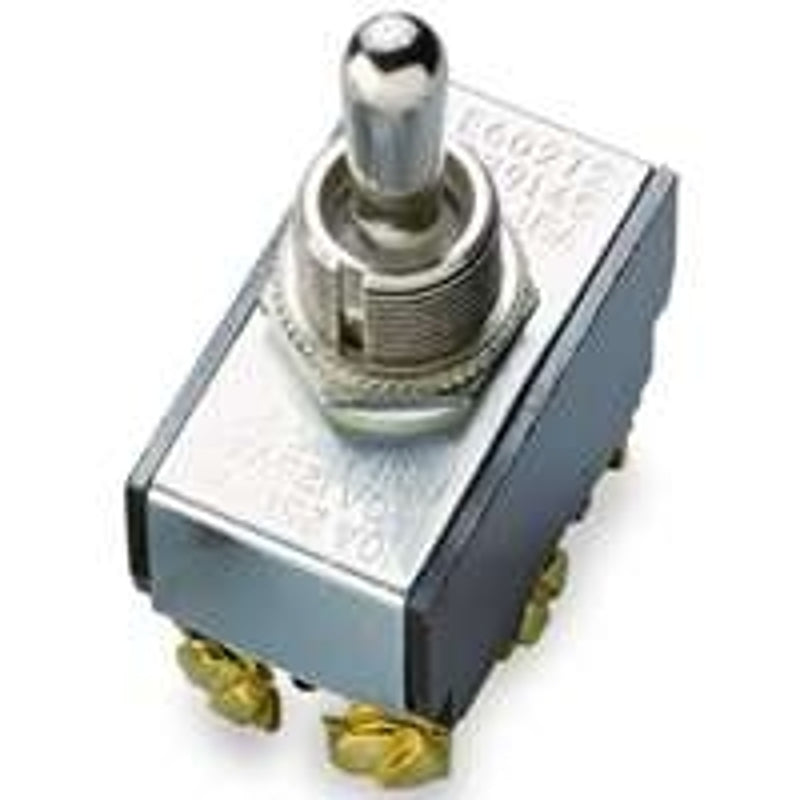

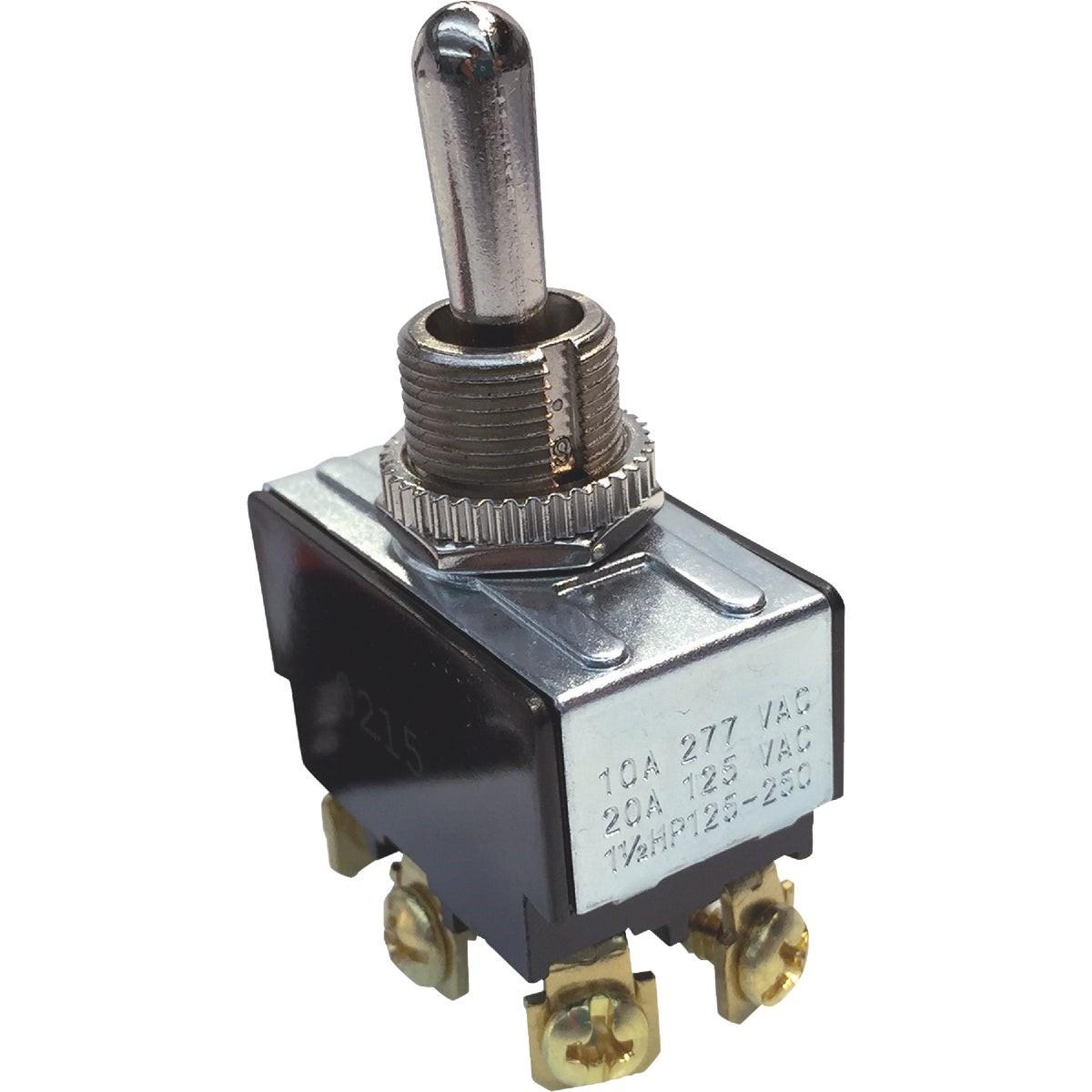

The Gardner Bender GSW-16 heavy-duty DPDT 6-screw toggle switch is designed for various applications. This switch features screw terminals and ON-(OFF)-ON circuitry. It fits standard 1/2 in. mounting holes and is suitable for industrial equipment or emergency lighting. The switch is leading the industry in quality and durability.
Product Highlights
This toggle switch is perfect for industrial equipment, emergency lighting, marine, or automotive applications.
Product Information
Standard Information
-
Brand: GARDNER BENDER
-
Manufacturer Part Number: GSW-16
-
Country of Origin: Taiwan, Province of China
Technical Specifications
-
Brand: Gardner Bender
-
MPN: GSW-16
-
UPCCode: 00032076890162
-
Manufacturer: GB Electrical
-
Model / MPN: GSW-16
-
Size: 1 Count (Pack of 2)
-
Number of Items: 2.0
-
Action: DPDT
-
Actuator: Lever
-
Amperage: 20 Amp
-
Connection Type: Screw Terminal
-
Mounting Type: Panel Mount
-
Standard: CSA,Ul Listed
-
Voltage: 250 Volts
-
HP [Specifications]: 1-1/2 HP @ 125 to 250VAC
-
Amps [Specifications]: 10A @ 227V, 20A @ 125 VAC
-
Terminals [Specifications]: Screw
-
Stem Length [Specifications]: 0.469"
-
Contact Form [Specifications]: DPDT
-
Actuator Length [Specifications]: 0.65"
-
Switch Function [Specifications]: On/Off/On
-
Country of Origin (subject to change) [Specifications]: Taiwan, Province of China
-
Switch Type: DPDT
-
Terminal: Screw
-
Current Rating: 20 Amps
-
AC Adapter Current: 20 Amps
-
Contact Material: Silver Alloy
-
Insulation Resistance: 100 Megaohms
-
Operating Voltage: 125 Volts (AC)
-
Specification Met: Ul, Csa
-
Amperage Rating: 20 A
-
Pole and Throw Configuration: DPDT
-
Number of Poles: 2
-
Temperature Rating: 75 deg C
-
Voltage Rating: 125/250 V
-
Wattage Rating: 0.5 hp
-
Application: For marine, industrial, or automotive
-
Actuator Type: Toggle
-
Terminals: 4 Screw terminals
-
Horsepower: 1 1/2 HP 125-250 Volt AC
-
Material: Plastic
