Product Description

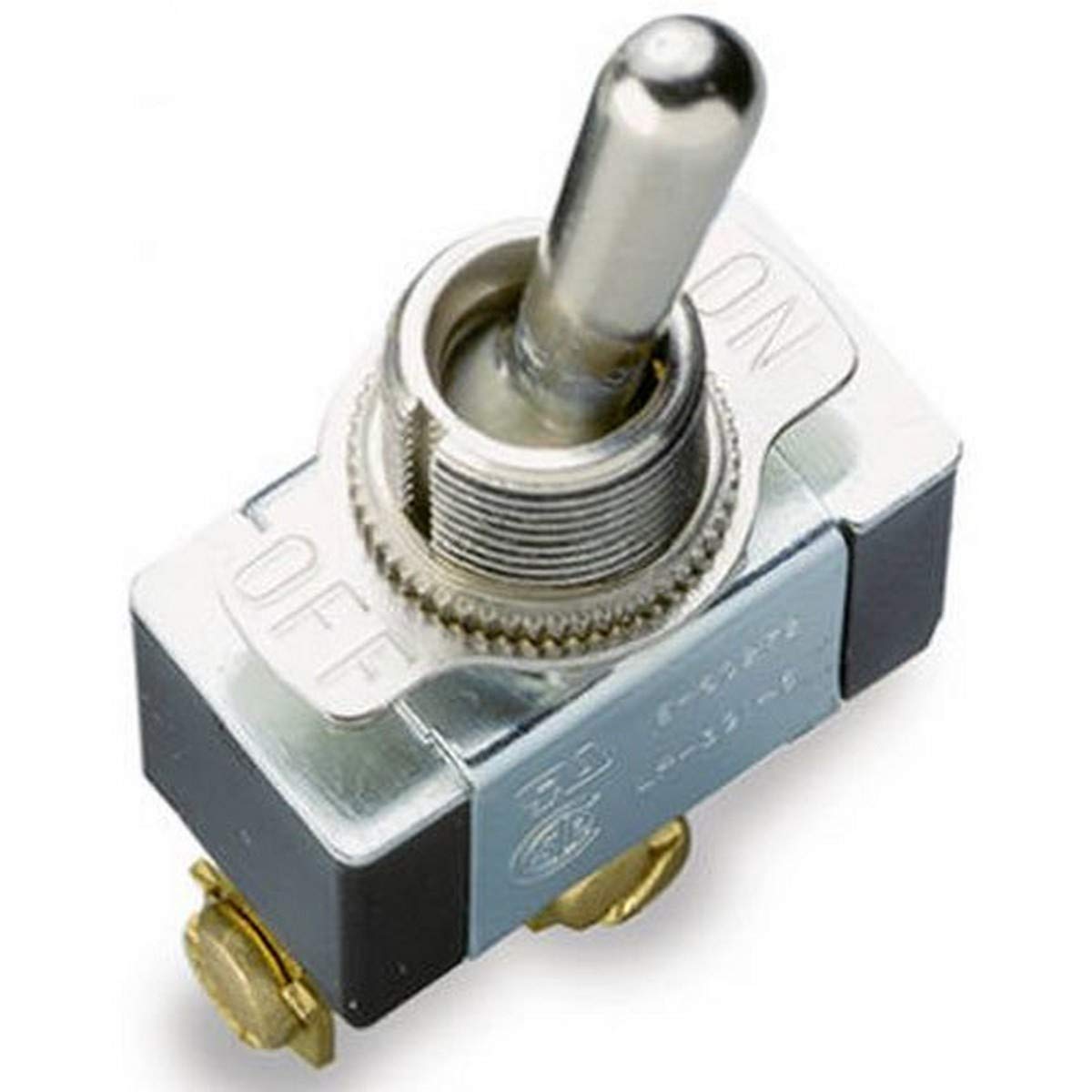

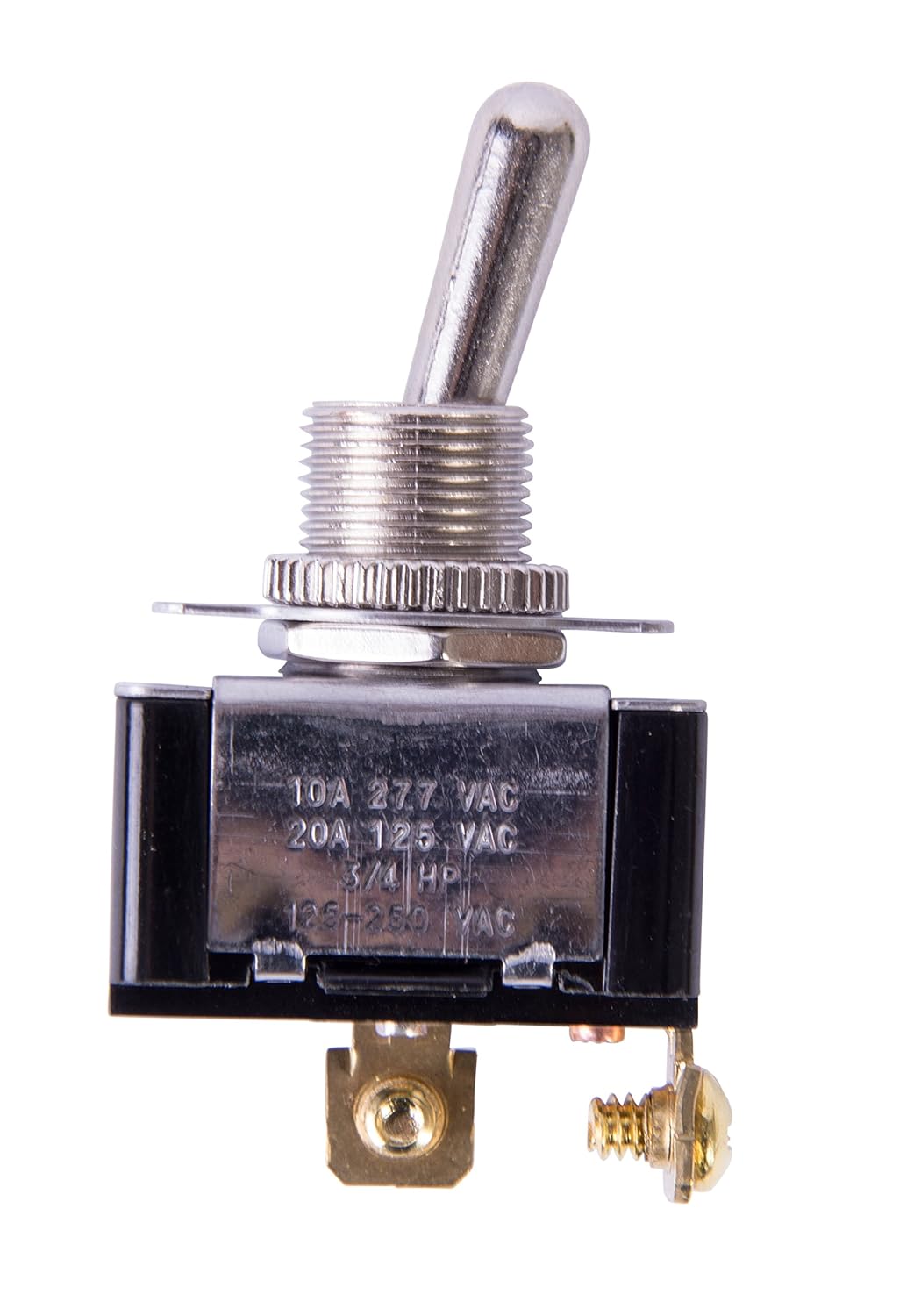

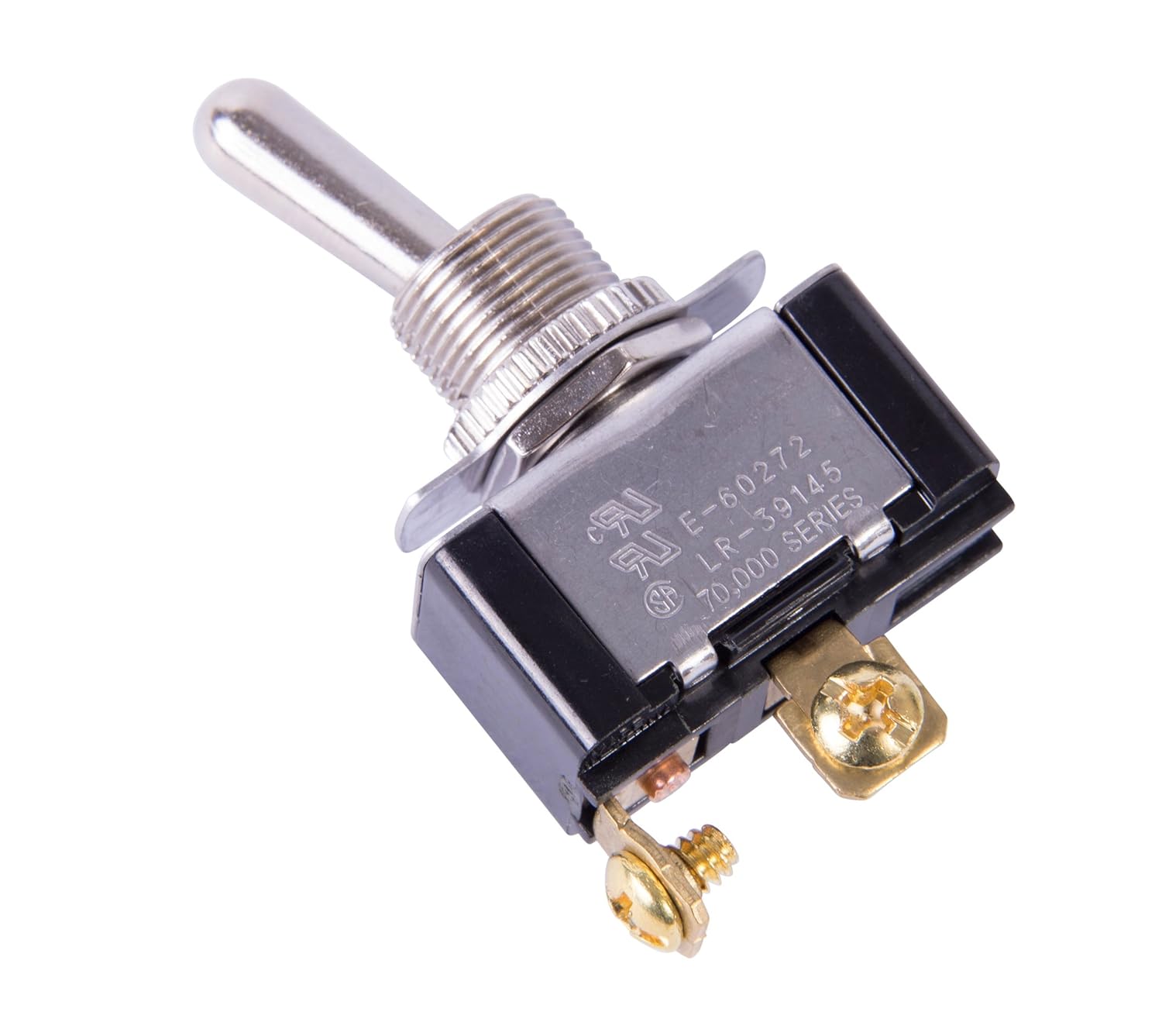

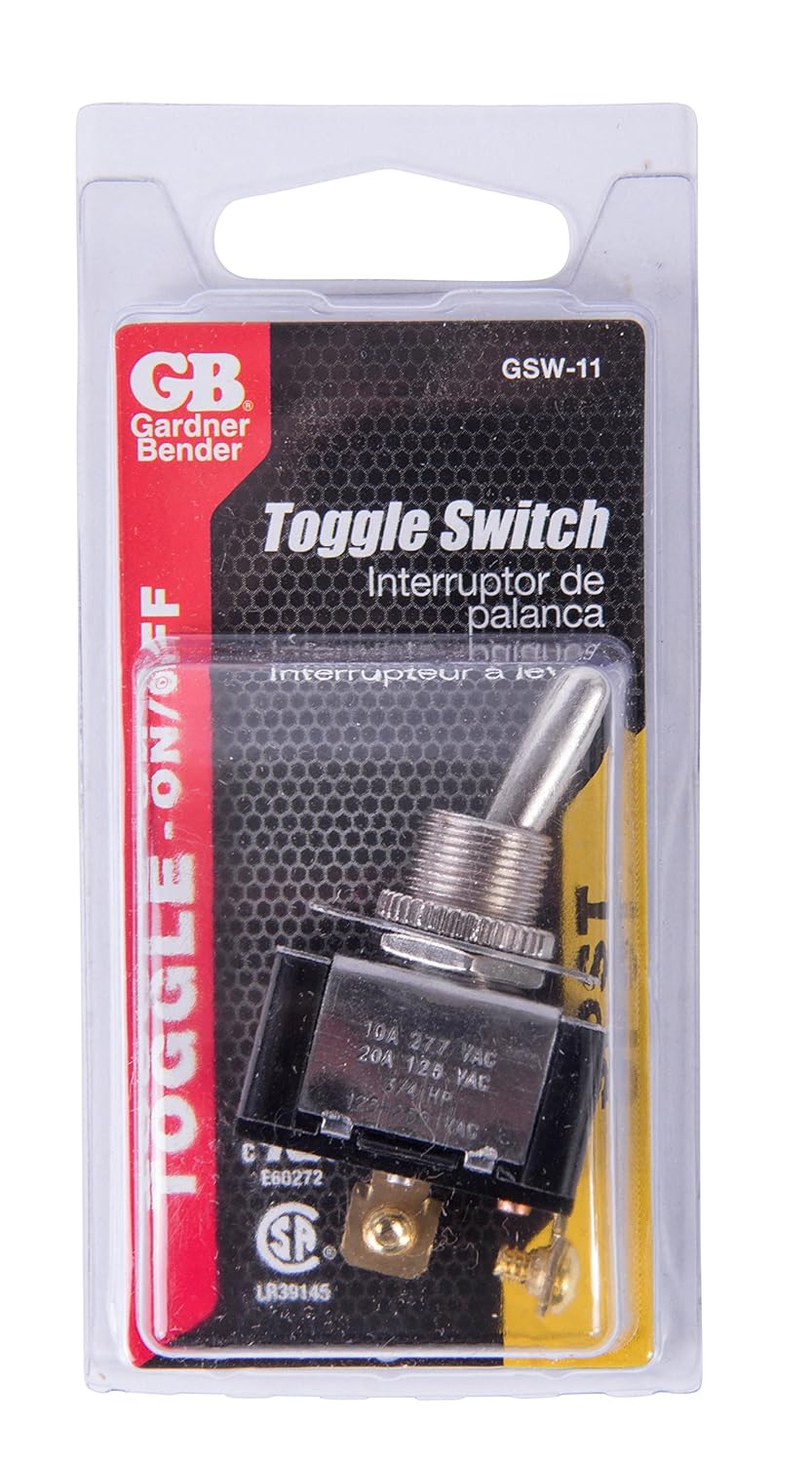

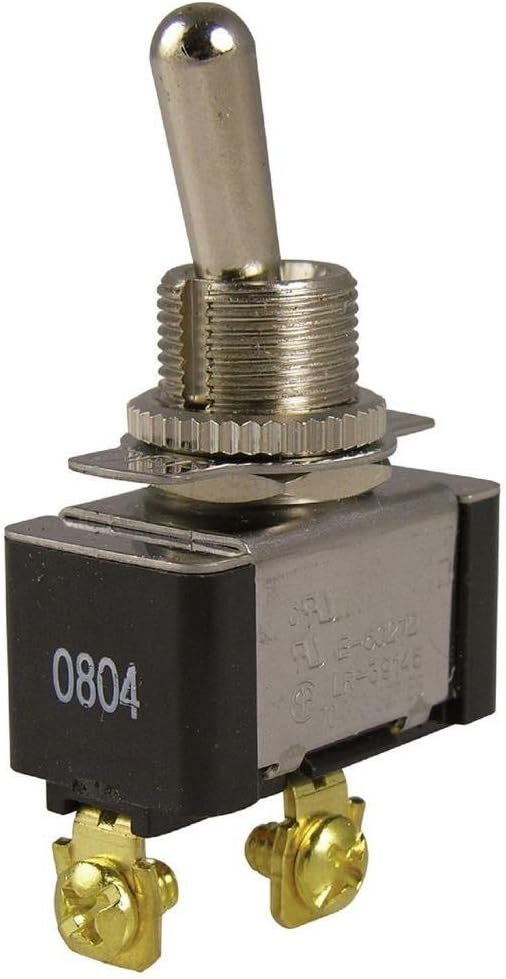

The Gardner Bender GSW-11 is a heavy-duty SPST toggle switch with screw terminals and ON-OFF circuitry. This switch is suitable for industrial equipment or emergency lighting. It fits standard 1/2 in. mounting holes and is perfect for various applications. The switch is leading the industry in quality and durability.
- Suitable for marine, industrial or automotive applications
- Features screw terminals for quick and easy connections
- Compatible with standard, 1/2 in. mounting holes
Product Highlights
This Gardner Bender toggle switch is ideal for various applications, offering durability and ease of installation with screw terminals and compatibility with standard mounting holes.
Product Information
Standard Information
-
Brand: GARDNER BENDER
-
Manufacturer Part Number: GSW-11
-
Country of Origin: China
Technical Specifications
-
MPN: GSW-11
-
Manufacturer: GB Electrical
-
Brand: Gardner Bender
-
Voltage: 125250 V
-
Switch Type: SPST
-
Terminal Type: Screw Terminal
-
HP [Specifications]: 3/4 HP @ 125 to 250VAC
-
Amps [Specifications]: 20A @ 125V, 10A @ 277VAC
-
Switch Function [Specifications]: On/Off
-
Material: Nickel Plated Brass
-
Switch Style: Toggle Switch
-
Amperage Capacity: 20 Amps
-
Product Series: GSW
-
Family Series: Gardner Bender Switches, GSW Series
-
Description: Toggle Switch, SPST, 20A/125VAC, O/F
-
Hole Size: 0.5 "
-
Actuator Type: Bat
-
Contacts: SPST
-
Circuit Configuration: ON-OFF
-
Color: Metallic
-
Illuminated: No
-
Approvals: UL
-
Mounting Type: Screw
-
Number of Poles: 1
-
Temperature Rating: 75 deg C
-
Voltage Rating: 125/250 V
-
Wattage Rating: 0.75 hp
-
Contact Configuration: SPST
-
Specifications: 10 A, 277 V AC / 20 A, 125 V AC / 3/4HP 125-250 V AC
-
Actuator Length [Specifications]: 0.65"
-
Stem Length [Specifications]: 0.469"
