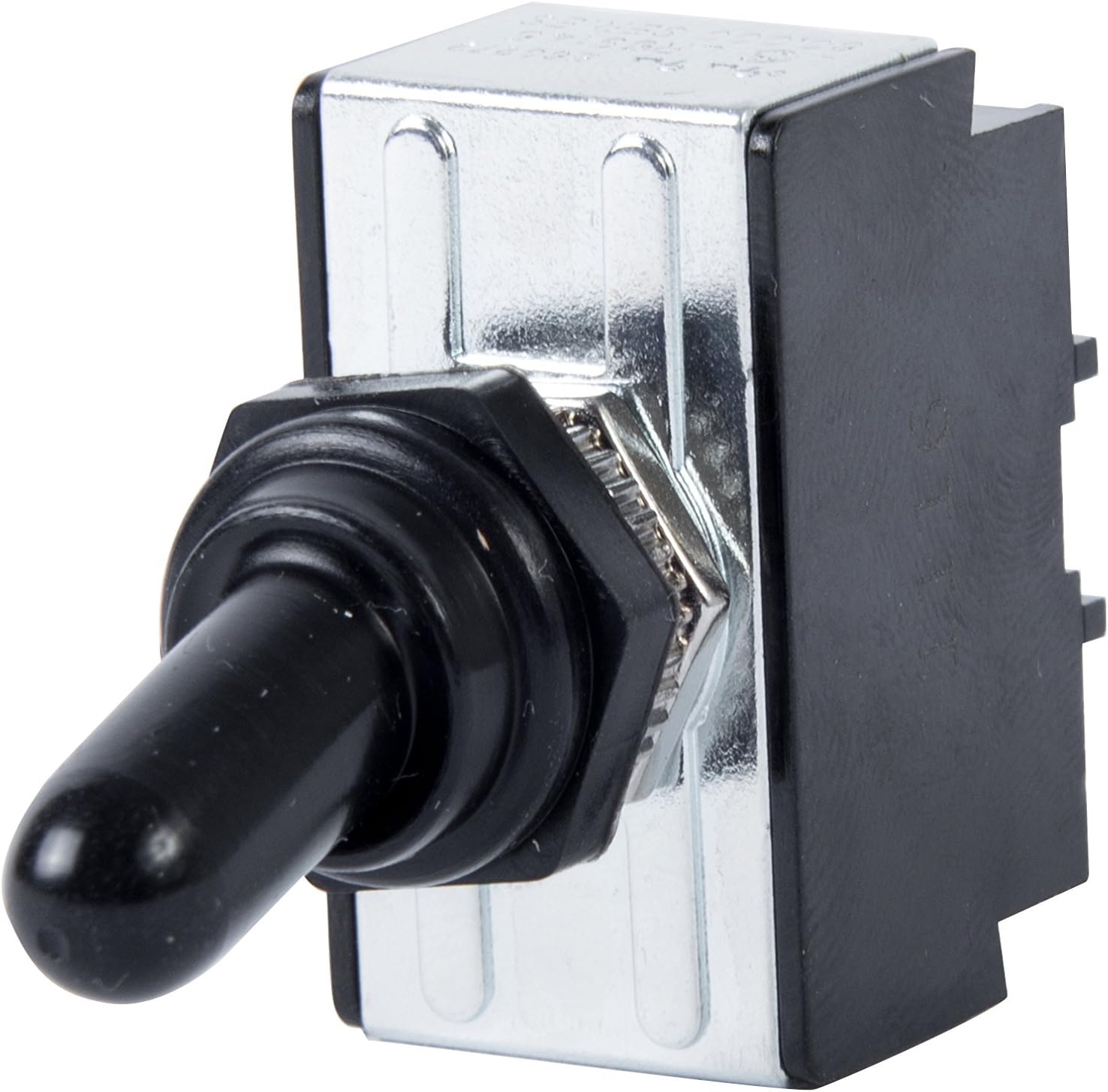

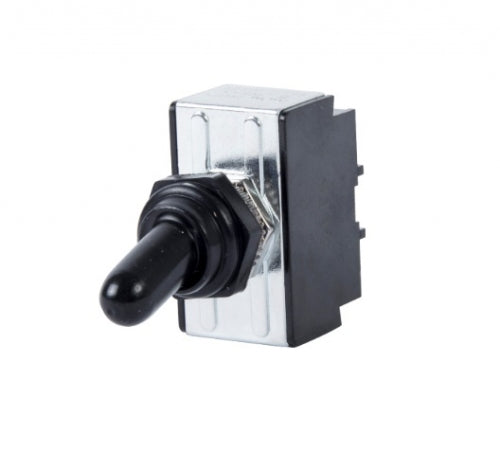

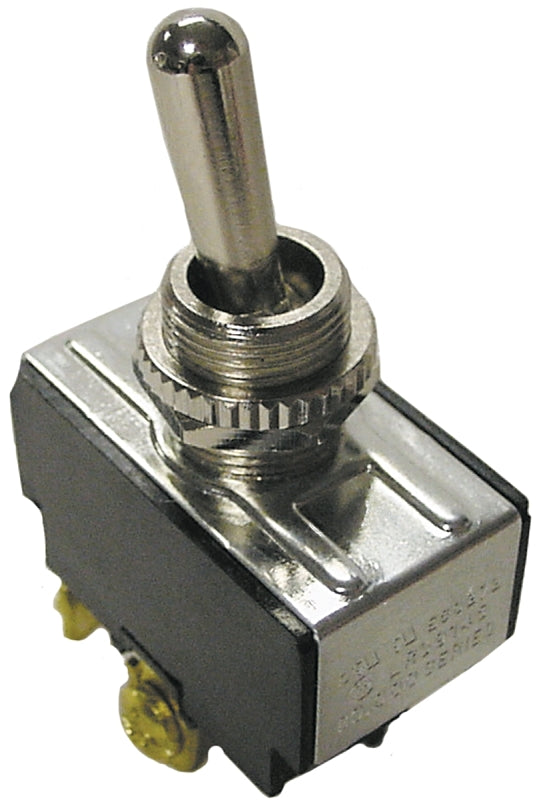

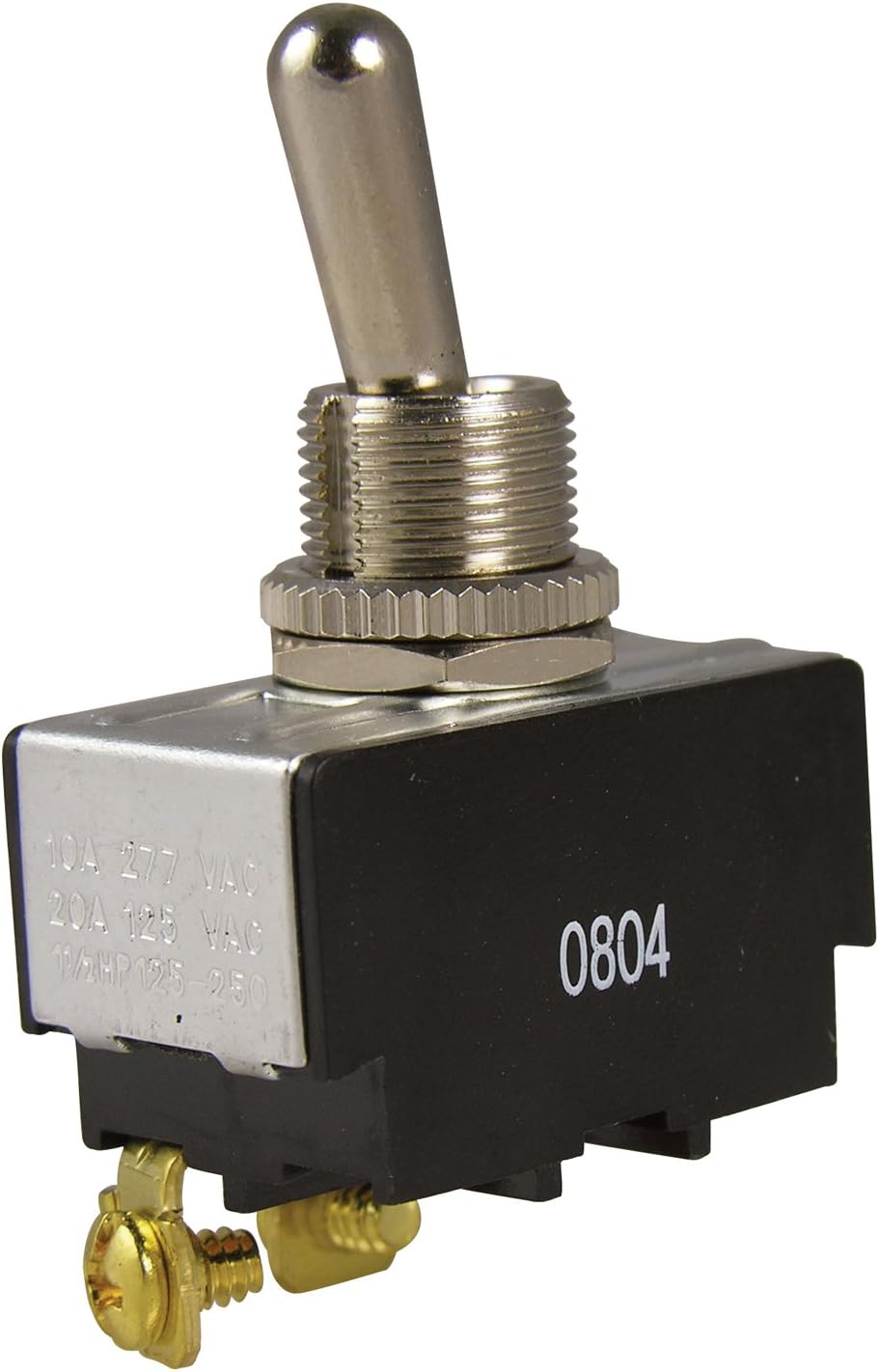

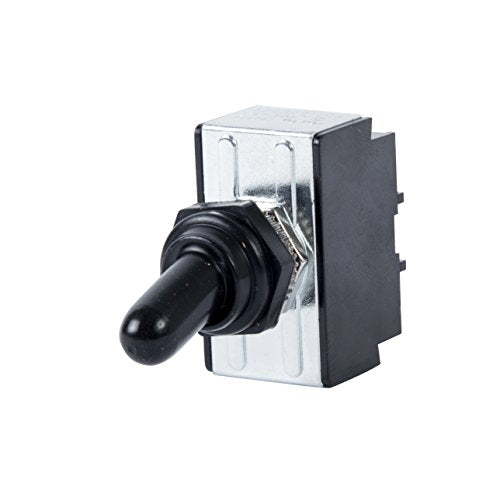

Gardner Bender GSW-10 Electrical Toggle Switch, SPST, ON-OFF, 20 A/125V AC, Screw Terminal

Product Description

The Gardner Bender GSW-10 electrical toggle switch is a SPST, ON-OFF switch with a 20 A/125V AC rating and screw terminals. This toggle switch features flat terminals and is suitable for automotive, marine, and industrial applications. It requires a 1/2" mounting hole and is ideal for electrical connections.

• SPST, ON-OFF configuration
• 20 A/125V AC
• Screw terminals

Product Highlights

This Gardner Bender toggle switch is perfect for industrial equipment or emergency lighting.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: GSW-10
• Country of Origin: United States

Technical Specifications

• Voltage: 125V AC
• Material: Plastic
• Connector Type: Screw
• Current Rating: 20 Amps
• Contact Material: Brass
• Configuration: SPST
• Amperage: 20 A
• Terminal Type: Screw
• Connection Type: Screw Terminal
• Standard: CSA,Ul Listed
• HP [Specifications]: 1-1/2 HP @ 125 to 250VAC
• Amps [Specifications]: 10A @ 227V, 20A @ 125 VAC
• Item [Specifications]: Toggle Switch,SPST,20A,125VAC,On/Off
• Terminals [Specifications]: Flat
• Contact Form [Specifications]: SPST
• Product Type [Specifications]: Toggle Switch,SPST,20A,125VAC,On/Off
• Switch Function [Specifications]: On/Off
• Out of Package Height (in): 1.3
• Out of Package Width (in): 0.5
• Out of Package Length/Depth (in): 1.3
• Manufacturer Part Number: GSW-10
• Manufacturer: Ecm Industries
• MPN: GSW-10
• Brand: Gardner Bender
• Part Number: GSW-10
• Certificate: cUL/UL Listed, RoHS Compliant
• Warranty: 1 Yr
• Product Dimensions: 1.30-in X 0.50-in X 1.30-in
• Contact Configuration: SPST
• Panel Mounting Type: Panel
• Number of Poles: 1
• Temperature Rating: 75 deg C
• Voltage Rating: 125/250 V
• Wattage Rating: 0.5 hp
• Application: For industrial equipment and emergency lighting
• Operation Method: On/Off
• Dimensions: 1-5/16 in L x 1/2 in W x 1-5/16 in H
• Specifications: 10 A, 227 V SC / 20 A, 125 V AC; 75 Degrees Celsius max. Temp rating. Standard nut size (15/32" -32")
