Gardner Bender 25-1H1 Hex-lok Wire Connector 25 Pack

Product Description

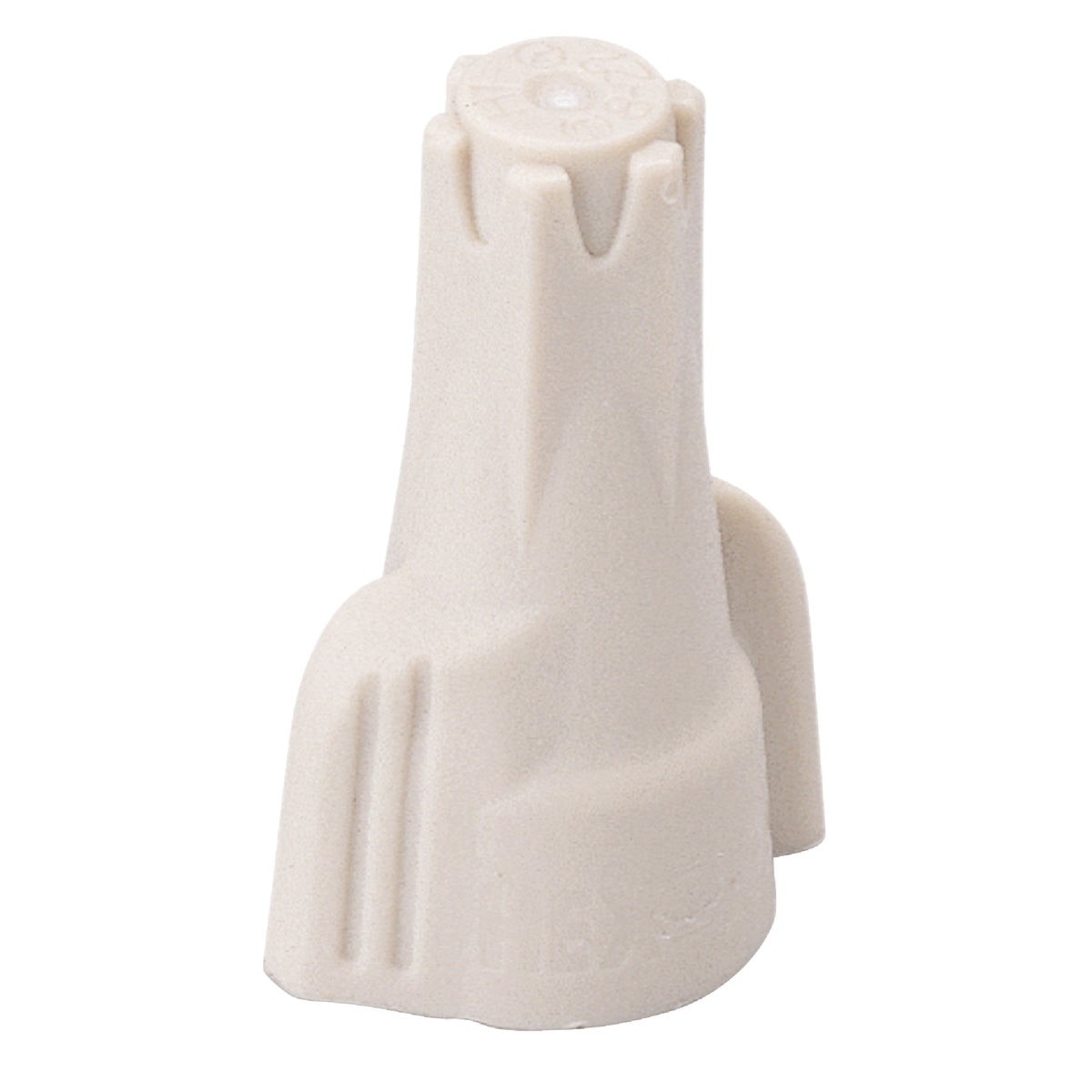

The GARDNER BENDER 25-1H1 Hex-Lok wire connector is a multi-range twist-on connector designed for copper-to-copper electrical connections ranging from 22 AWG to 8 AWG. The hex head design accepts a 7/16-inch socket for automatic or manual driver installation, making it practical for high-volume wiring work. A square wire spring locks conductors firmly in place, while the long skirt covers stripped wire ends and keeps the profile compact. Rated at 600 volts maximum for general use and 1000 volts maximum in lighting fixtures, luminaires, and signs. Sold in a 25-pack.

These connectors are suited for residential and commercial electrical work across a wide range of everyday wiring applications. The multi-range sizing reduces the number of connector types a technician needs on hand. The ivory color and streamlined skirt design make them appropriate for use in junction boxes, panels, and lighting fixture installations where a clean, compact termination is required. Licensed electricians and electrical contractors are the primary installers.

Key Features

• Hex head design accepts a 7/16-inch socket for driver-assisted or manual installation
• Multi-range coverage from 22 AWG to 8 AWG copper-to-copper connections
• Square wire spring provides a secure, reliable grip on conductors
• Long skirt fully covers stripped wire ends for a safer, cleaner termination
• Rated 600 volts maximum general use; 1000 volts maximum in lighting fixtures, luminaires, and signs
• CSA and UL listed

Compatibility

Suitable for copper-to-copper connections in residential and commercial electrical applications from 22 AWG to 8 AWG, including general wiring, junction box terminations, lighting fixtures, luminaires, and signs.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the circuit and verify voltage is absent with a meter before making any connections. Strip conductors to the appropriate length, insert into the connector, and drive or twist to the manufacturer-recommended seating point using a 7/16-inch socket or by hand. Do not use on aluminum conductors.

Technical Specifications

• Wire Range: 22 AWG to 8 AWG
• Voltage Rating (General Use): 600 volts maximum
• Voltage Rating (Fixtures, Luminaires, Signs): 1000 volts maximum
• Socket Size: 7/16 inches
• Conductor Type: Copper to copper
• Color: Ivory
• Package Quantity: 25
• Weight: 0.143 pounds
• Certifications: CSA listed, UL listed

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 25-1H1
