Gardner Bender 25-002 Wire Connector 22 Awg 16 Awg Blue 25-pack

Product Description

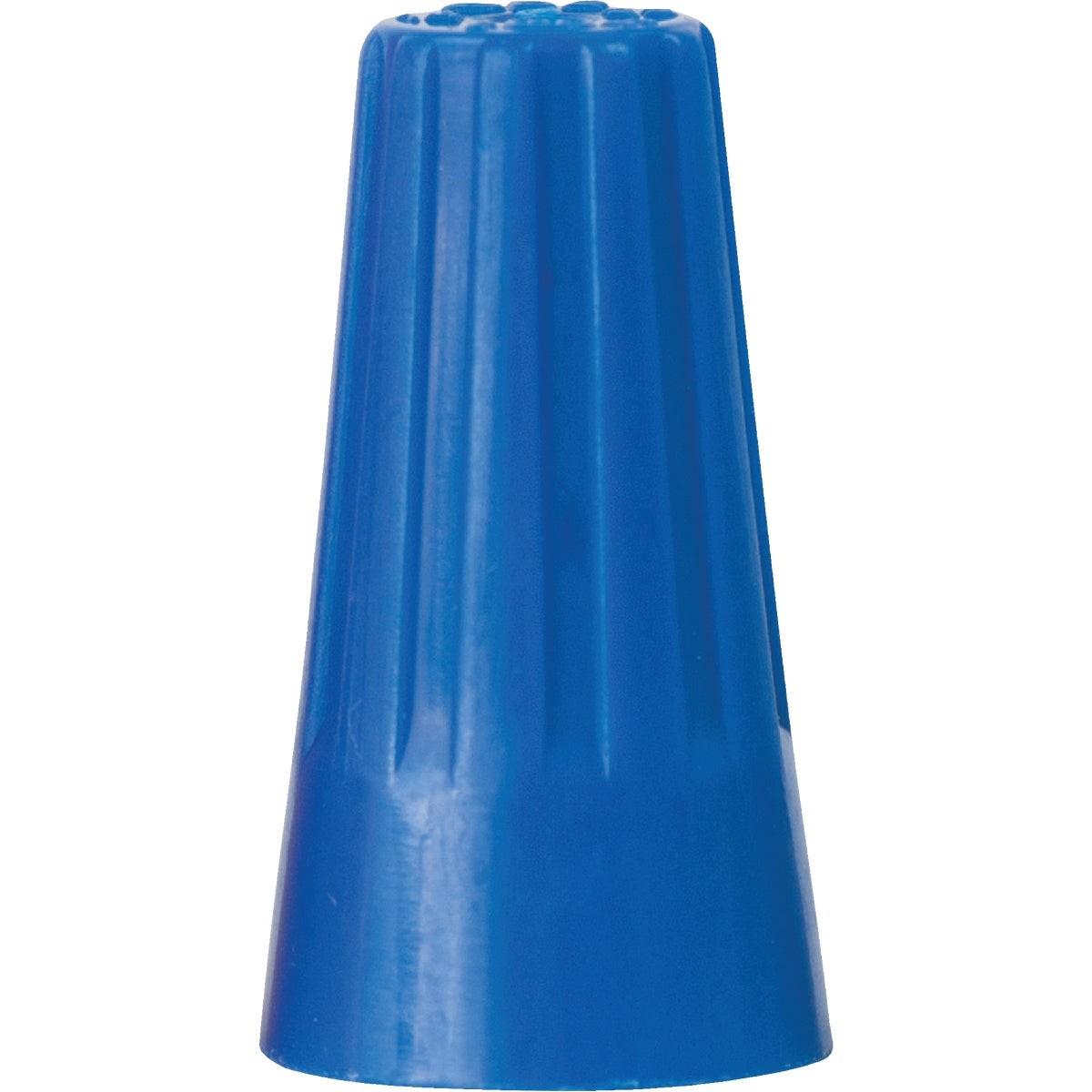

The GARDNER BENDER 25-002 is an extra small, blue twist-on wire connector rated for 22 AWG to 16 AWG copper conductors, sold in a 25-pack. The thermoplastic shell provides high dielectric insulation and is designed with a deep skirt that covers bare wire ends to prevent flash-over and accidental contact. The firm-grip exterior surface allows fast, one-handed tightening during rough-in and finish wiring work. These connectors comply with Federal Specification W-5-610d and are UL 486C listed and CSA certified, making them acceptable for use in residential, commercial, and light industrial wiring applications.

These connectors are suited for copper-to-copper splices in low-voltage control wiring, fixture hookups, and general branch circuit work where small-gauge conductors are common. The color-coded blue shell allows quick identification of the correct connector size on the job. Electricians and HVAC technicians commonly use this size when terminating thermostat wire, light fixture leads, and similar small-gauge connections.

Key Features

• Rated for 22 AWG to 16 AWG copper-to-copper splices
• Deep skirt design prevents exposure of bare wire ends and reduces flash-over risk
• Tough thermoplastic shell withstands environmental extremes
• Firm-grip exterior surface for fast, secure tightening
• UL 486C listed and CSA certified
• Color-coded blue shell for quick connector size identification

Compatibility

Designed as an OEM-style twist-on wire connector for copper-to-copper splices in 22 AWG to 16 AWG general wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified HVAC technicians following NEC guidelines. De-energize the circuit at the breaker or disconnect before making any wire connections. Strip conductors to the appropriate length, twist wires together if required, then thread the connector clockwise until snug. Do not use on aluminum conductors; these connectors are rated for copper-to-copper connections only.

Technical Specifications

• Wire Range: 22 AWG to 16 AWG
• Conductor Type: Copper-to-copper
• Shell Material: Thermoplastic
• Color: Blue
• Package Quantity: 25 per pack
• Weight: 0.063 pounds
• Certifications: UL 486C Listed, CSA Certified, Federal Specification W-5-610d

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 25-002
