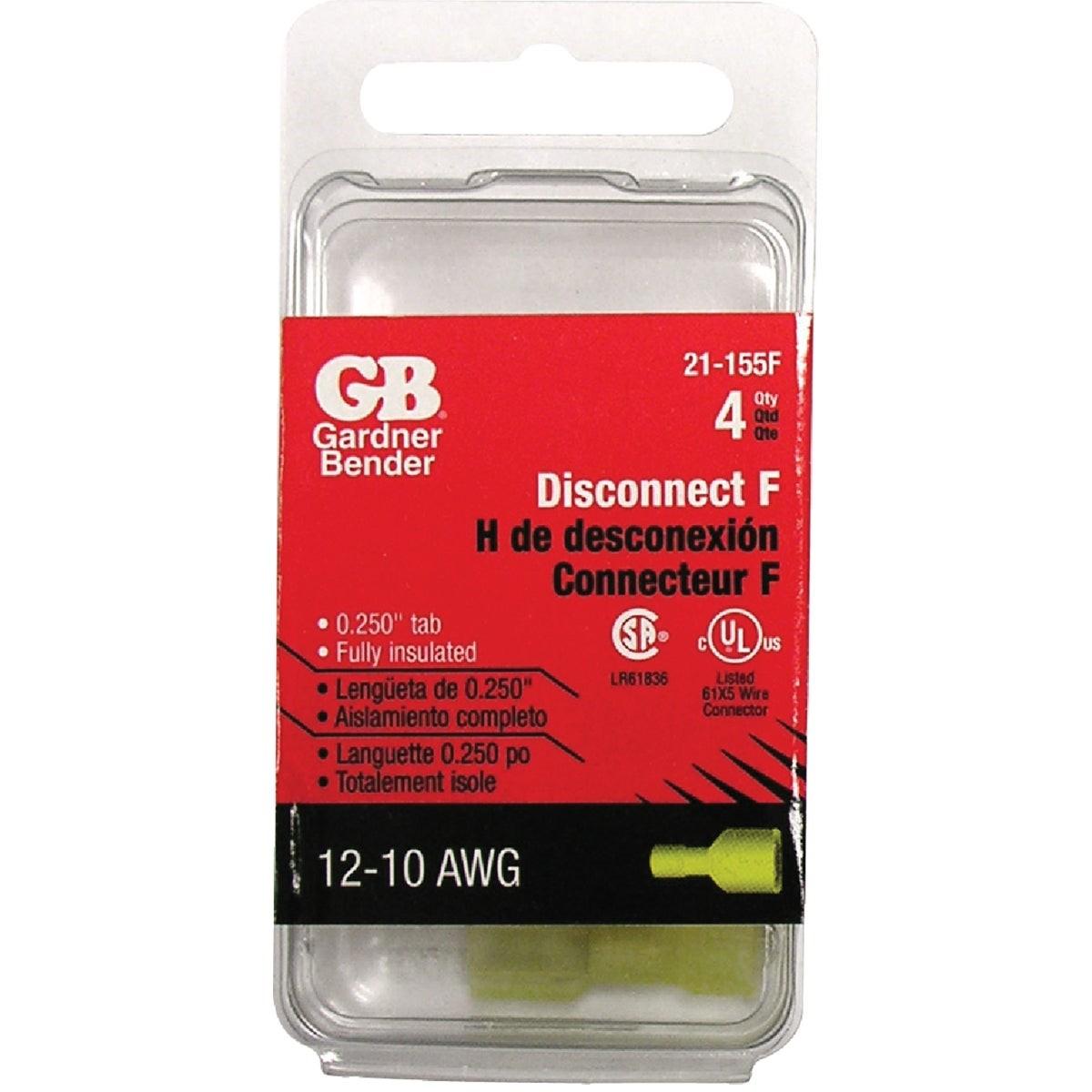

Gardner Bender 21-155F Female Disconnect 12-10 Awg 600V

Product Description

The GARDNER BENDER 21-155F is a fully insulated female disconnect designed for reliable electrical terminations in wire gauge sizes 12 to 10 AWG. Rated at 600 volts maximum with a temperature rating of 167 degrees F, this yellow-coded connector delivers safe, secure connections in residential and commercial wiring applications. The full insulation sleeve covers the entire terminal body, reducing the risk of accidental contact with energized parts. Electricians and low-voltage technicians use these connectors when terminating wires to appliances, control panels, and equipment harnesses. Each pack contains four connectors.

These female disconnects are suited for use in branch circuit wiring, appliance connections, HVAC control wiring, and equipment terminations where 12 or 10 AWG conductors are present. The yellow color coding matches the industry-standard identification for the 12-10 AWG wire range, making it straightforward to select the correct connector on the job. They are appropriate for both new installation work and service replacement in residential and light commercial environments.

Key Features

• Fully insulated sleeve covers entire terminal body for improved safety
• Rated at 600 volts maximum for standard branch circuit applications
• Temperature rated to 167 degrees F for use in typical electrical enclosures
• Yellow color coding indicates compatibility with 12-10 AWG wire range
• Sold in a 4-pack for common single-point or multi-connection service calls

Compatibility

Designed as an OEM-style replacement or new-installation disconnect terminal for 12 to 10 AWG conductors in standard residential and light commercial electrical applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the circuit before terminating or replacing any disconnect connector. Use a calibrated crimping tool sized for the 12-10 AWG wire range to ensure a secure mechanical and electrical connection. Do not use these connectors beyond their rated 600-volt or 167 degrees F limits.

Technical Specifications

• Wire Range: 12-10 AWG
• Voltage Rating: 600 volts maximum
• Temperature Rating: 167 degrees F
• Insulation: Fully insulated
• Color Code: Yellow
• Package Quantity: 4-pack
• Weight: 0.032 pounds

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 21-155F
