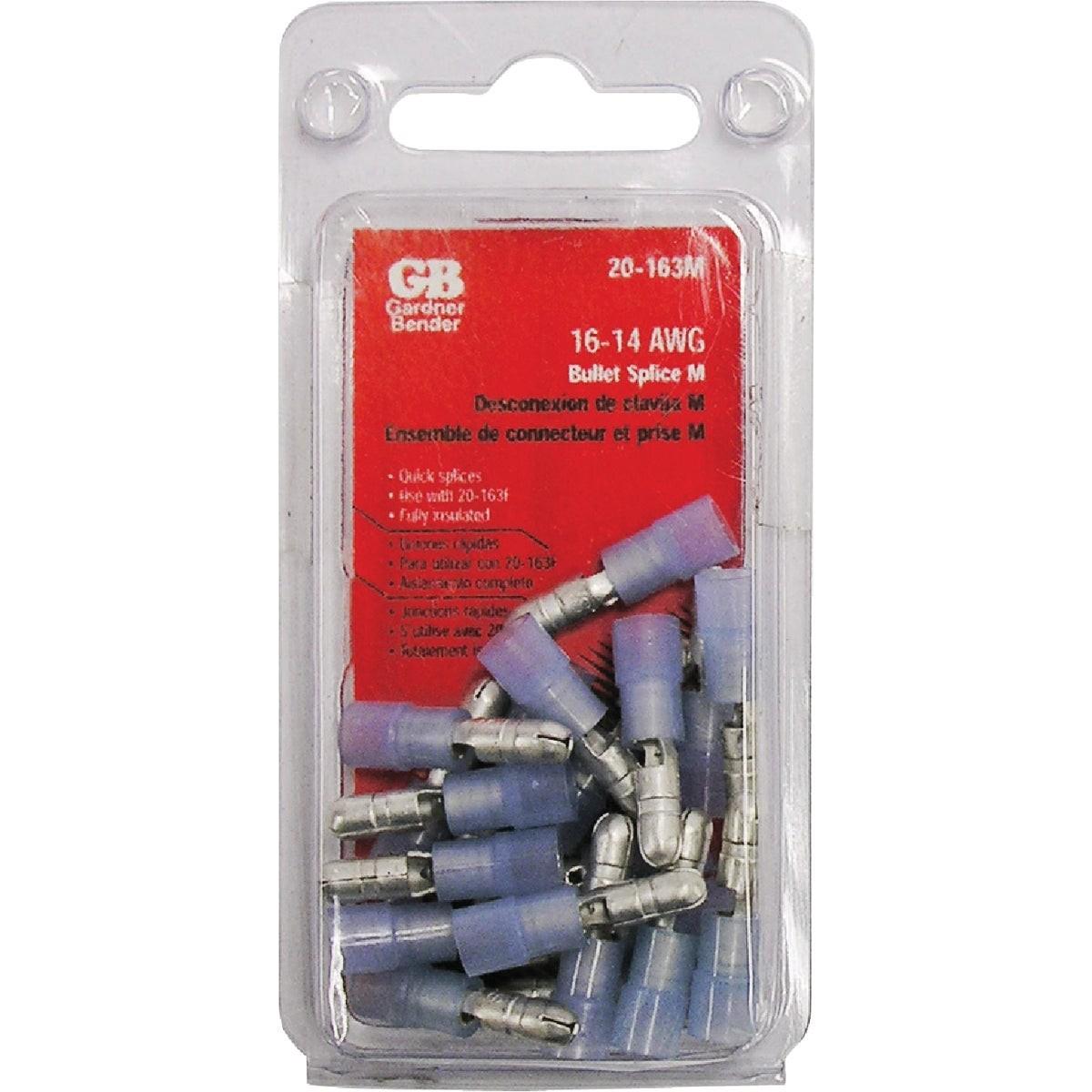

Gardner Bender 20-163M Male Bullet Connector 16-14 Awg

Product Description

The GARDNER BENDER 20-163M is a fully insulated male bullet connector designed for secure, vibration-resistant wire terminations in automotive, marine, and low-voltage electrical applications. Rated at 600 volts maximum and a temperature rating of 167 degrees F, this connector handles 16 to 14 AWG wire and features a 0.156-inch tab for positive engagement with mating female bullet terminals. The full insulation sleeve provides dielectric protection and strain relief at the termination point. Sold in a 20-pack, it suits technicians and electricians completing multi-point wiring jobs where consistent, reliable connections are required throughout the run.

This connector is suited for residential and light commercial wiring, control panel builds, trailer wiring, and equipment harness repairs. Electricians and low-voltage installers use bullet connectors like the 20-163M when a disconnect-style termination is needed without a full multi-pin housing. The 16 to 14 AWG range covers common branch circuit and control wiring gauges found in HVAC controls, lighting, and auxiliary equipment leads.

Key Features

• Fully insulated construction for dielectric protection and wire strain relief
• 600-volt maximum rating for standard low-voltage and control circuit applications
• Temperature rating of 167 degrees F for moderate heat environments
• 0.156-inch tab for positive mating with standard female bullet terminals
• Accepts 16 to 14 AWG conductors
• 20-pack quantity reduces per-unit cost on multi-termination jobs

Compatibility

Designed as an OEM-style replacement and general-use male bullet connector compatible with standard 0.156-inch female bullet terminal receptacles used in residential, commercial, and light industrial wiring applications.

Installation Notes

Installation is typically performed by licensed electricians or qualified low-voltage technicians. De-energize the circuit fully before terminating or inspecting connections. Use an appropriate wire stripper and ratcheting crimp tool sized for 16 to 14 AWG terminals to ensure a cold-weld crimp that meets NEC workmanship standards. Do not solder over a crimped bullet connector, as this can create a stress point and compromise the connection under vibration.

Technical Specifications

• Wire Range: 16 to 14 AWG
• Maximum Voltage Rating: 600 volts
• Temperature Rating: 167 degrees F
• Tab Size: 0.156 inches
• Insulation Type: Fully insulated
• Package Quantity: 20-pack
• Weight: 0.048 pounds

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 20-163M
