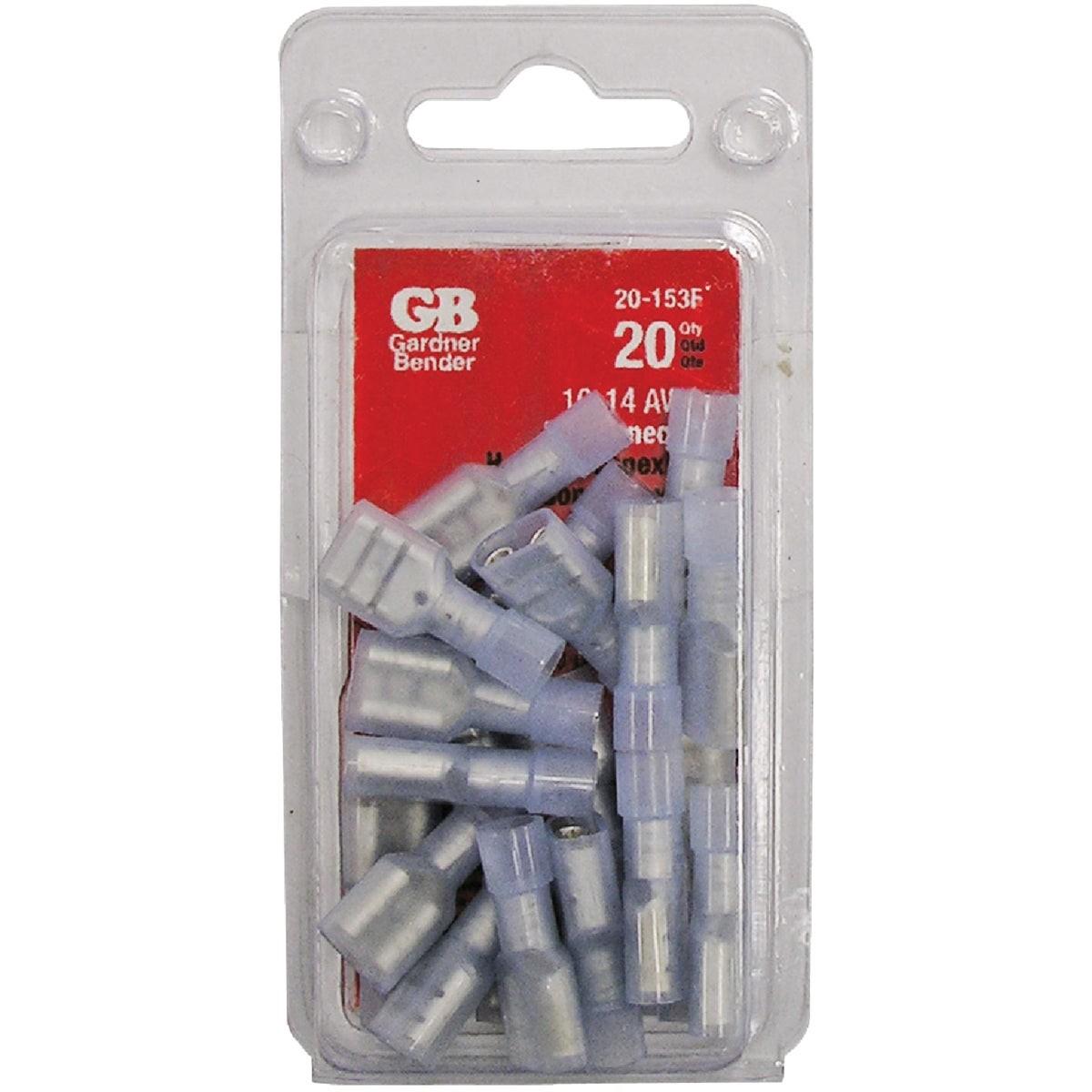

Gardner Bender 20-153F Female Disconnect 16-14 Awg 600V

Product Description

The GARDNER BENDER 20-153F is a fully insulated female disconnect terminal designed for reliable, insulated electrical connections in wire termination applications. Rated at 600 volts maximum with a temperature rating of 167 degrees F, this terminal is built for use on 16 to 14 AWG wire. The blue color coding identifies it as the correct size range for 16-14 AWG conductors, making polarity and gauge identification fast during installation. Sold as a 20-pack, it is suited for electricians and wire technicians who need a consistent supply of terminals for panel wiring, control wiring, and general electrical assembly work.

This disconnect is used in residential and light commercial electrical work wherever a removable, insulated female push-on terminal connection is required. Typical applications include control panel wiring, appliance repair, HVAC low-voltage wiring harnesses, and electrical panel accessory connections. The full insulation sleeve provides an extra margin of safety in tight wiring compartments where bare terminal exposure is a concern.

Key Features

• Fully insulated construction for improved safety in confined wiring spaces
• Rated at 600 volts maximum for broad electrical application compatibility
• Temperature rated to 167 degrees F for standard service environments
• Blue color coding indicates 16-14 AWG wire gauge range
• Sold as a 20-pack to support multi-terminal wiring jobs

Compatibility

Designed as an OEM-style disconnect terminal for use with 16 to 14 AWG copper conductors in standard push-on female disconnect applications.

Installation Notes

Installation is performed by licensed electricians or qualified wire technicians. De-energize and lock out all circuits before terminating or inspecting connections. Use a ratcheting crimp tool sized for insulated terminals to ensure a secure, gas-tight crimp on the wire barrel. Follow NEC requirements for terminal ratings and conductor sizing in the applicable circuit.

Technical Specifications

• Wire Gauge Range: 16-14 AWG
• Voltage Rating: 600 volts maximum
• Temperature Rating: 167 degrees F
• Insulation: Fully insulated
• Color Code: Blue
• Pack Quantity: 20
• Weight: 0.06 pounds

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 20-153F
