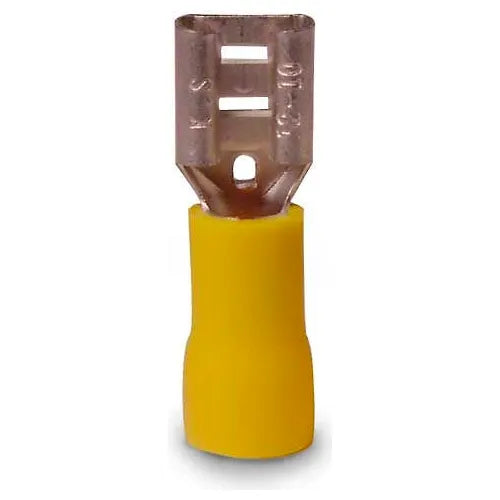

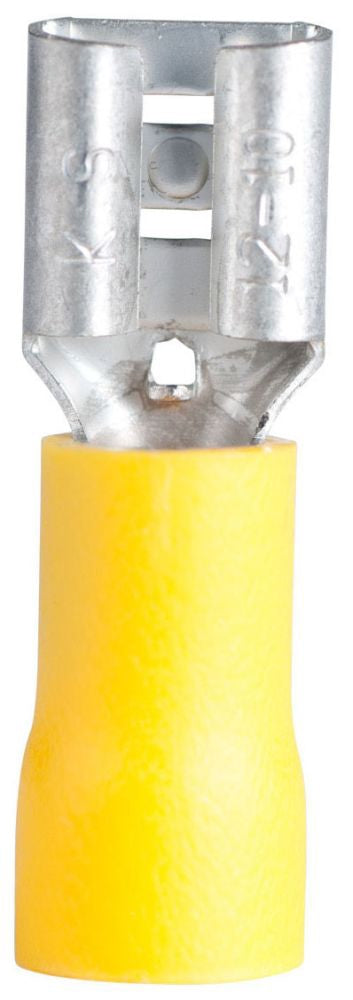

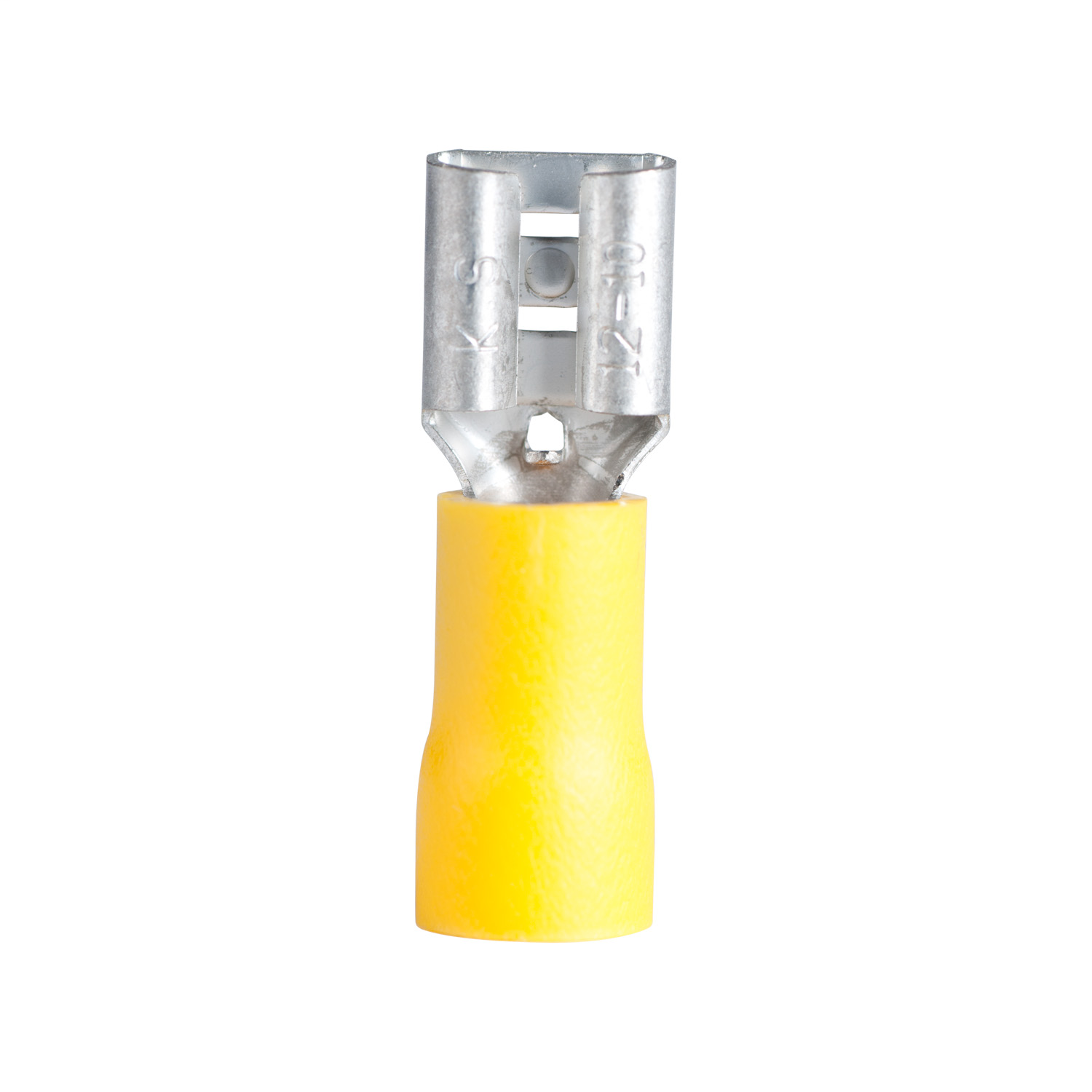

Gardner Bender 20-145F 12-10AWG Yellow Female Disconnect

Product Description

The Gardner Bender 20-145F is a vinyl-insulated female disconnect designed for use with twelve to ten AWG wire sizes. It comes in a standard package of sixteen units. This connector features a tab size of point two five inches, making it ideal for quick and reliable installations in various electrical applications.

• Compatible with wire sizes from twelve to ten AWG.
• Rated for six hundred volts maximum.
• Temperature rating can withstand up to one hundred sixty-seven degrees Fahrenheit.

Product Highlights

This connector is RoHS compliant and features a reliable vinyl insulation that ensures safety and efficiency in electrical projects.

Product Information

Standard Information

• Brand: Gardner Bender
• Manufacturer Part Number: 20-145F

Technical Specifications

• Wire Range: #12 - #10 AWG
• Tab Size: 0.25 inches
• Color: Yellow
• Insulation Type: Vinyl Insulated
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Approval: UL (Canada and US)
• Temperature Rating: 167°F
