Product Description

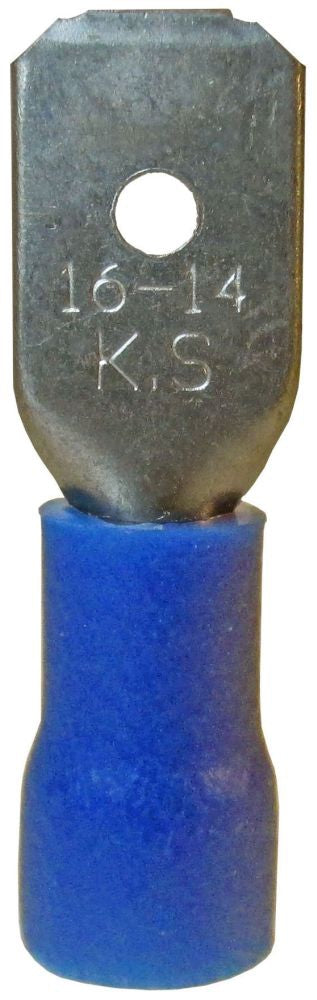

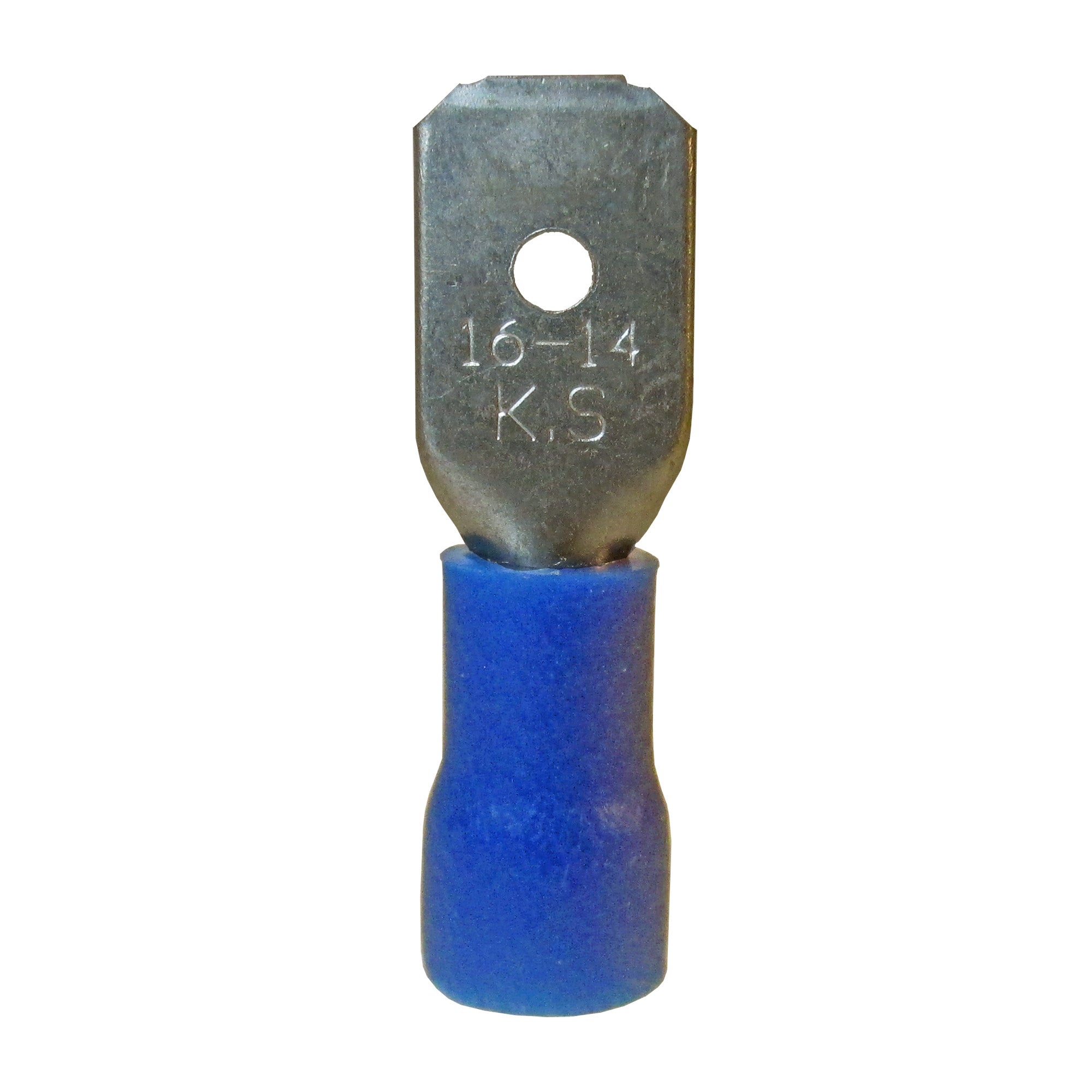

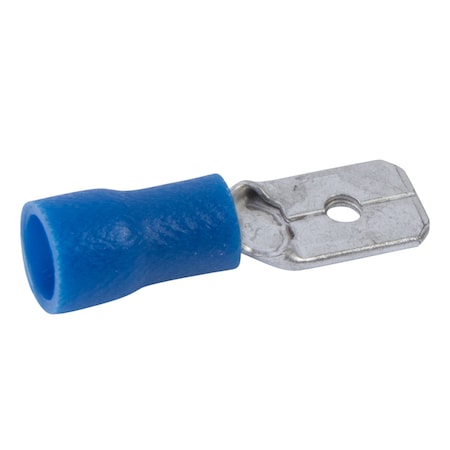

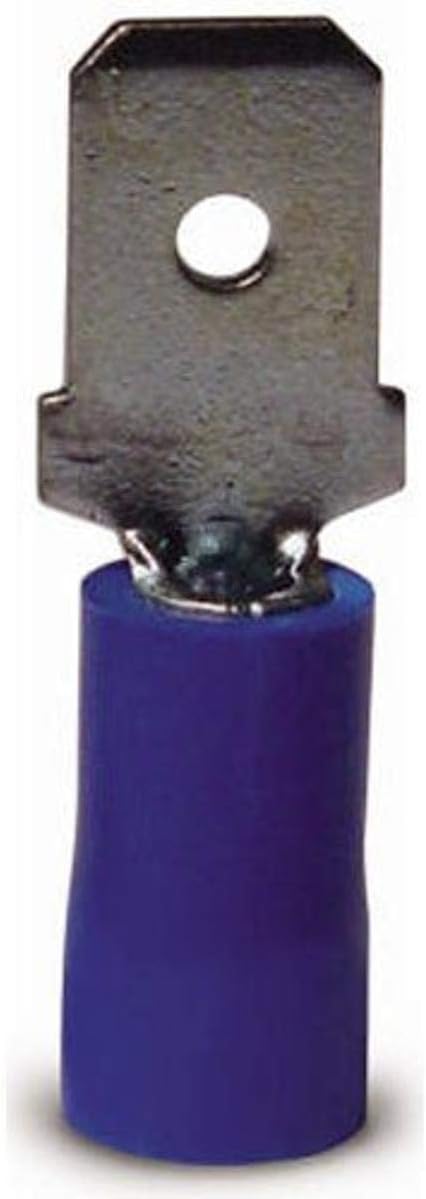

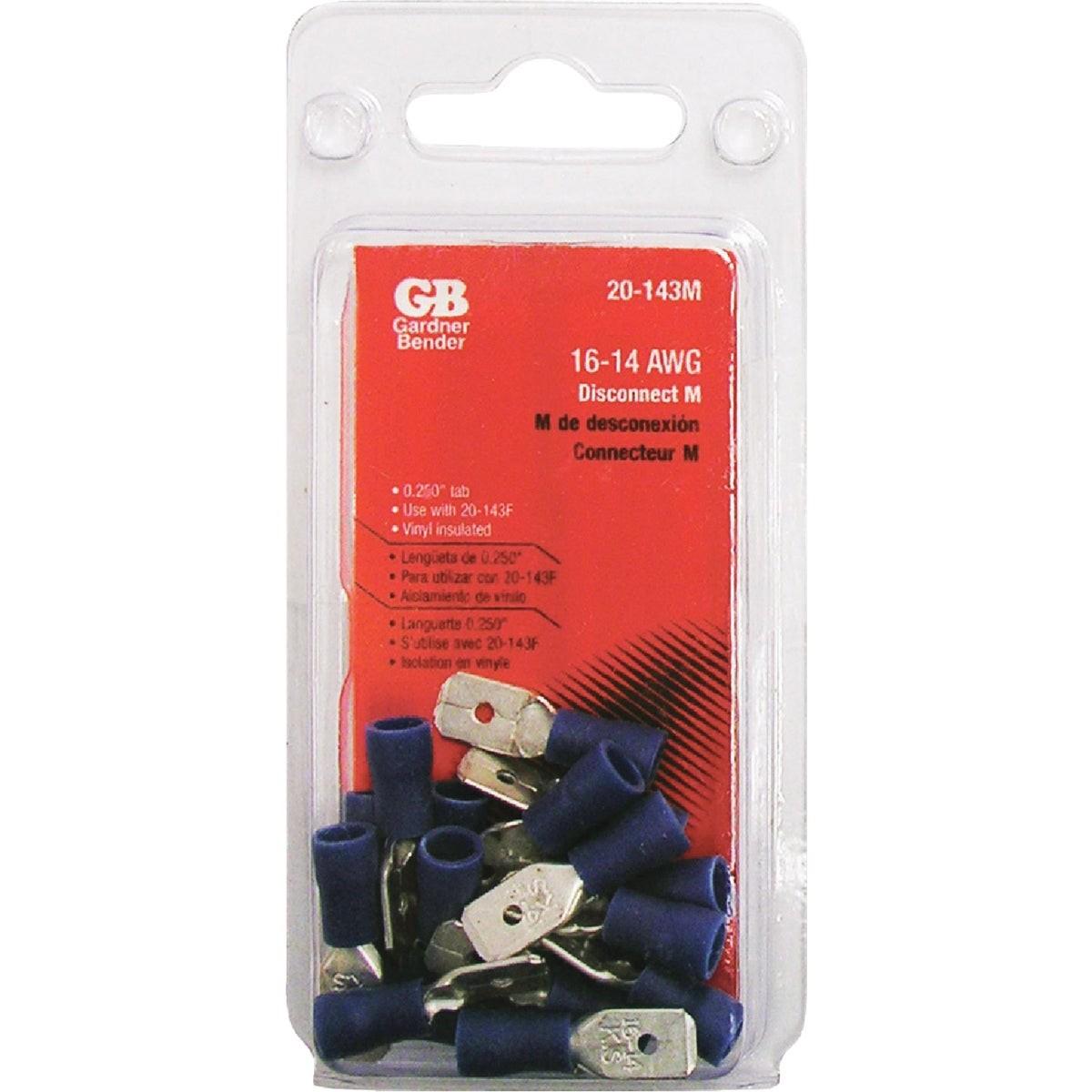

The Gardner Bender 20-143M disconnect is a crimp-type wire connector for 16 to 14 AWG wires. These male disconnects feature a vinyl insulated barrel and are rated at 600V maximum with a temperature rating of 167°F (75°C). These terminals offer high quality and application flexibility for secure wire connections.
- .250" Tab quick and reliable crimp-type wire connector
- Rated at 600V maximum
- Temperature rating is 167°F (75°C)
Product Highlights
These Gardner Bender male disconnects are dependable and easy to use for a variety of applications. They are color-coded by wire gauge size for convenience.
Product Information
Standard Information
-
Brand: GARDNER BENDER
-
Manufacturer Part Number: 20-143M
-
Country of Origin: Taiwan, Province of China
Technical Specifications
-
MPN: 20-143M
-
ItemID: GBE20143M
-
UPCCode: 00032076050146
-
Manufacturer: GB Electrical
-
Brand: Gardner Bender
-
UOM: Pack
-
Country: TW
-
Rating: 600 Volts
-
Wire Range: 16 to 14 AWG
-
Package Quantity: 18
-
Minimum Conductor Size: 16 AWG
-
Maximum Conductor Size: 14 AWG
-
Insulation Type: VINYL INSULATED
-
Category: Small Terminals & Connectors
-
Sub-Category: Male Disconnect
-
UNSPSC: 39121405
-
UPC 12 Digit: 032076050146
-
Unique Product Key: 6098658
-
Voltage: 600 V
-
Stud Size: 1/4 in
-
Insulation: Vinyl
-
Temperature Rating: 75 deg C
-
Type: Male
-
Rated at: 600 Volt Max
-
cULus Listed: Yes
-
RoHS Compliant: Yes
-
Connector Type: Crimp
-
Contact Material: Alloy Steel
-
Insulation Material: Polyvinyl Chloride
-
Terminal: Male
-
Material: Vinyl
-
Specification Met: UL
-
Maximum Voltage: 600 Volts
-
Number of Items: 1
-
Global Trade Identification Number: 00032076050146
-
Unit Count: 1.0 Count
-
Item model number: 20-143M
-
Is Discontinued By Manufacturer: No
-
Size: 18 Pack
-
Style: Fully Insulated - Male
-
Item Package Quantity: 1
-
Measurement System: Imperial
-
Voltage Rating: 600 V
-
Wire Size: 16 to 14 AWG
