Gardner Bender 20-141M Male Disconnect 22-16 Awg 600V

Product Description

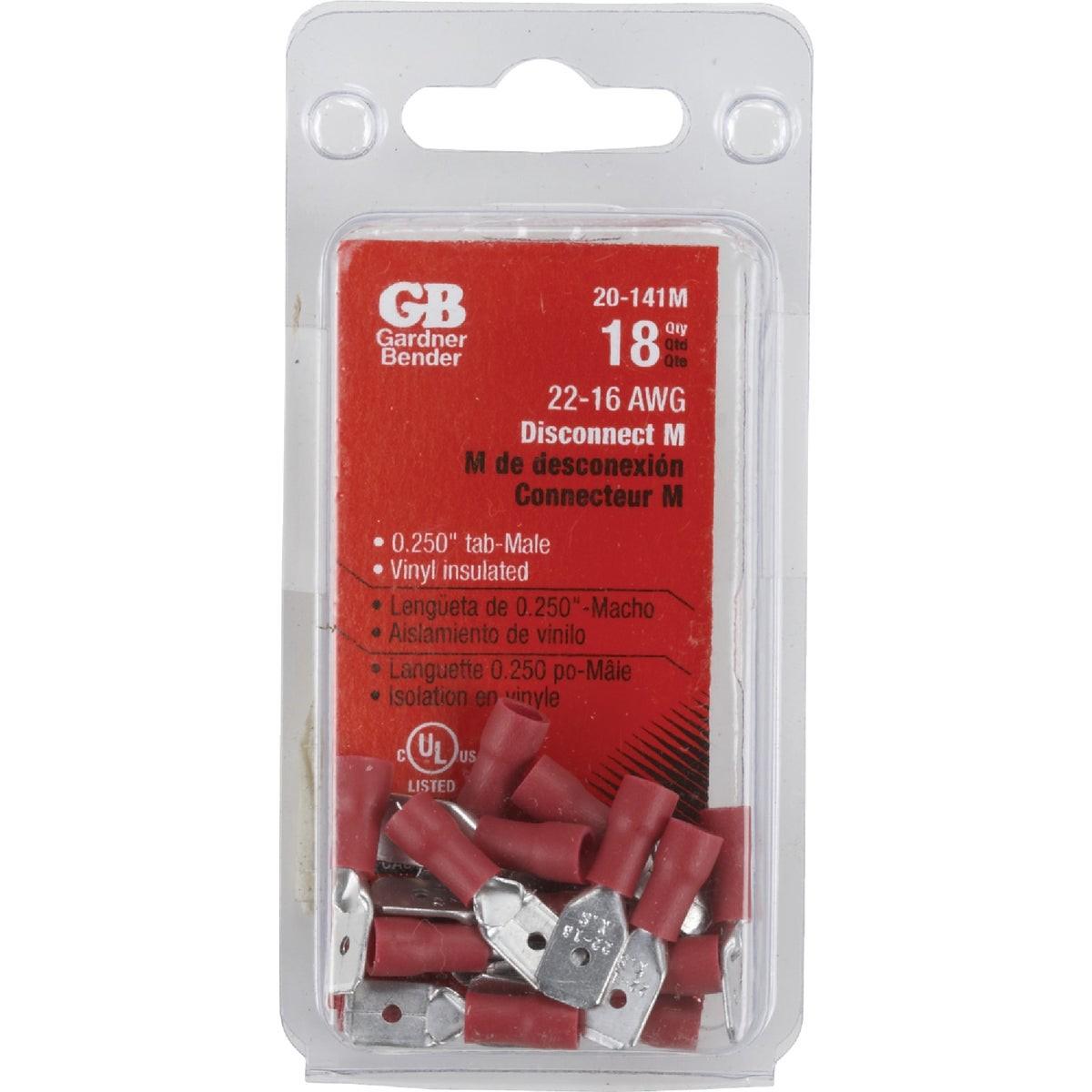

The GARDNER BENDER 20-141M is a vinyl-insulated barrel male disconnect designed for quick, reliable terminations in low-voltage wiring applications. Rated at 600 volts maximum with a temperature rating of 167 degrees F, this connector handles the electrical and thermal demands of standard residential and light commercial wiring work. The red insulation color-codes the connector for 22 to 16 AWG wire gauge range, allowing electricians and installers to identify the correct terminal at a glance. Sold in a 21-pack, these disconnects are suited for jobs requiring multiple terminations in a single run.

These male disconnects are used in residential wiring, panel work, appliance connections, and automotive or equipment harness repairs where a push-on disconnect terminal is required. The barrel design accepts a standard female disconnect receptacle and is appropriate wherever a removable, non-soldered connection is needed on 22 to 16 AWG conductors. Electricians, HVAC technicians, and equipment service pros keep packs of these on hand for both new installation and service calls.

Key Features

• 600-volt maximum rating suitable for standard low-voltage wiring circuits
• Temperature rated to 167 degrees F for use in warm service environments
• Red vinyl insulation color-codes to 22-16 AWG wire range for quick identification
• Barrel male disconnect design accepts standard female push-on receptacles
• 21-pack quantity reduces restocking frequency on multi-termination jobs

Compatibility

Designed as an OEM-style replacement and general-use terminal for 22 to 16 AWG wire in residential and light commercial electrical and low-voltage wiring applications.

Installation Notes

Installation is performed by a licensed electrician or qualified technician. De-energize the circuit completely before crimping or connecting any terminal. Use a ratcheting crimp tool sized for the 22-16 AWG range to ensure a gas-tight crimp and prevent pull-out. Do not solder over a crimped vinyl-insulated terminal, as heat can degrade the insulation and compromise the connection rating.

Technical Specifications

• Wire Gauge Range: 22-16 AWG
• Voltage Rating: 600 volts maximum
• Temperature Rating: 167 degrees F
• Insulation Material: Vinyl
• Insulation Color: Red
• Connector Type: Barrel Male Disconnect
• Pack Quantity: 21
• Weight: 0.043 pounds

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 20-141M
