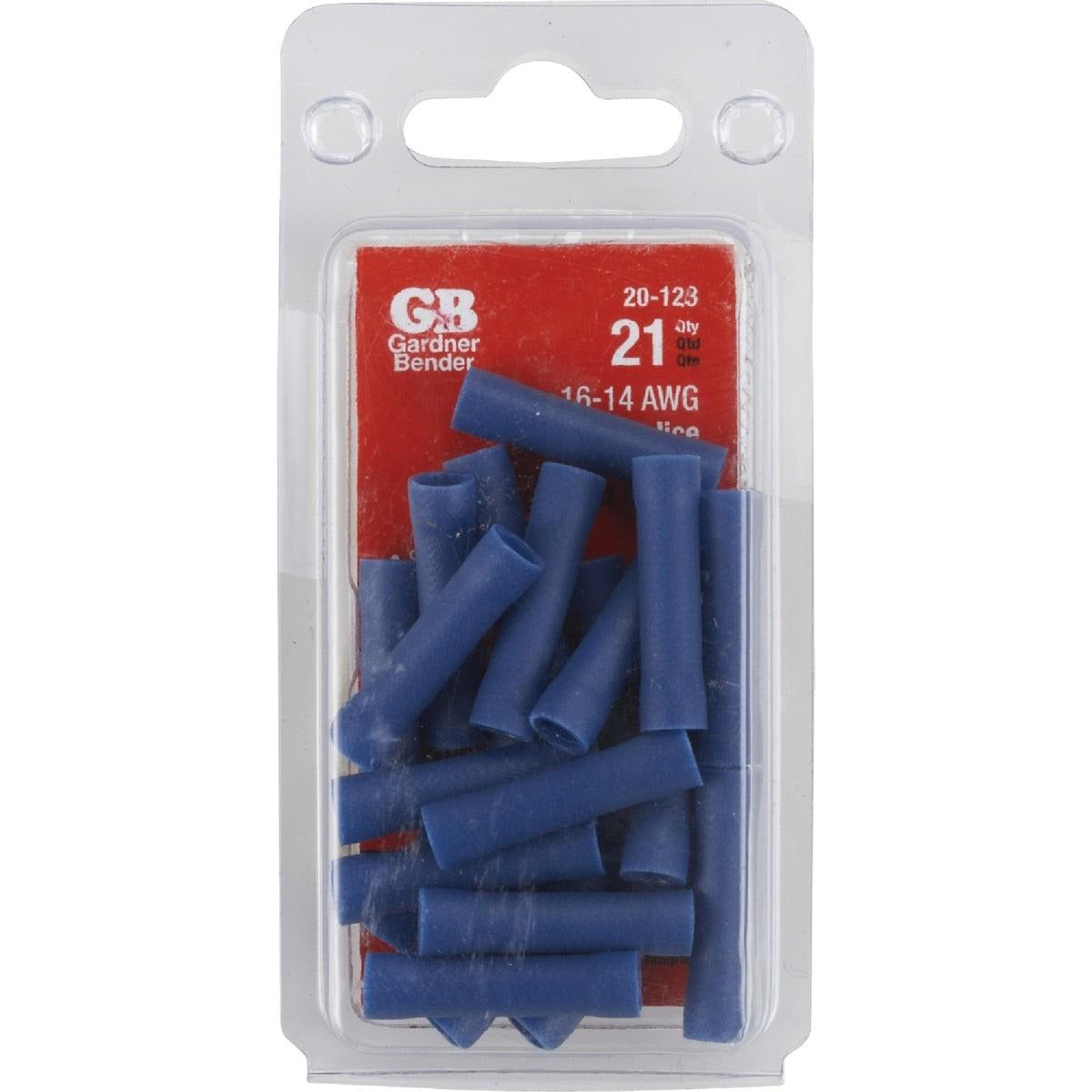

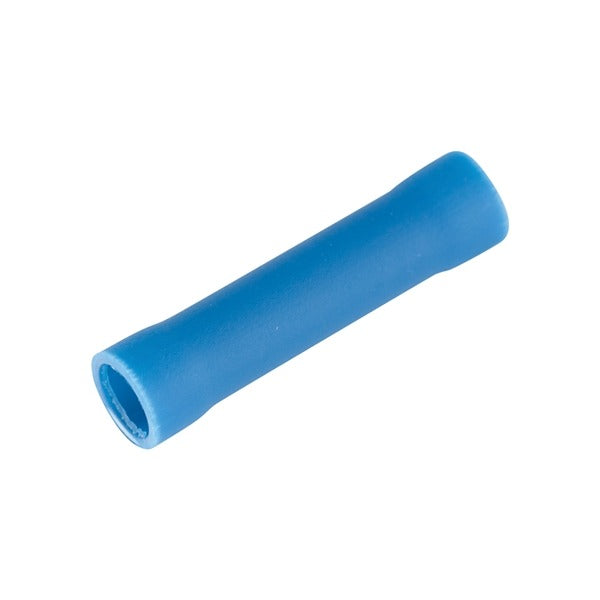

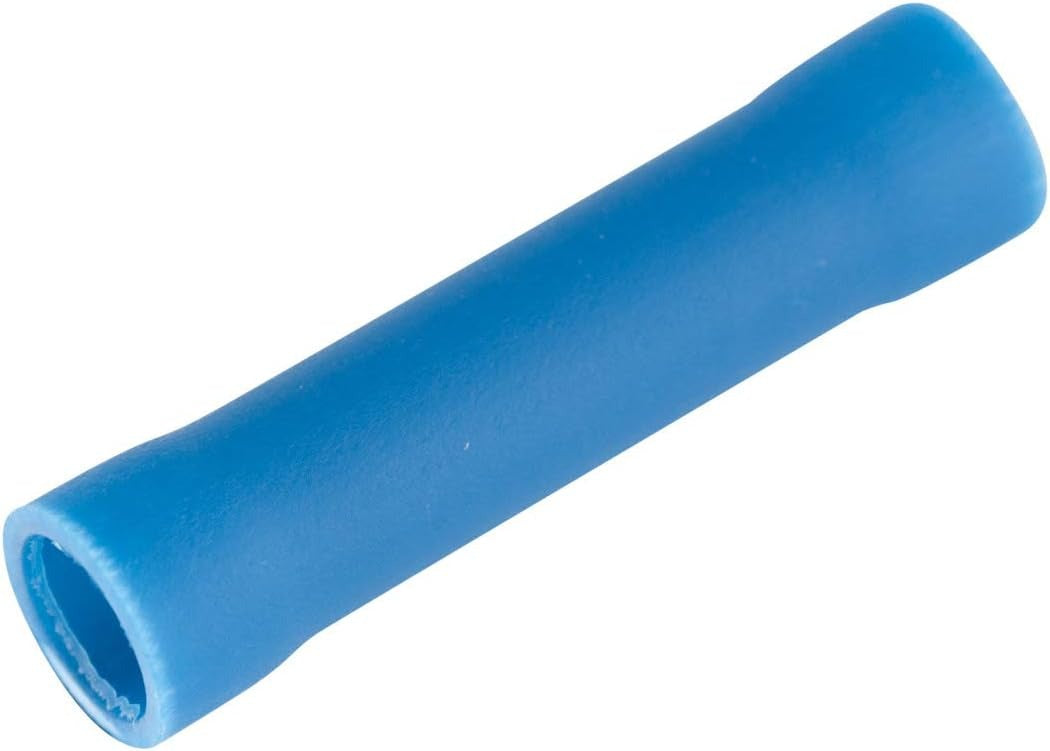

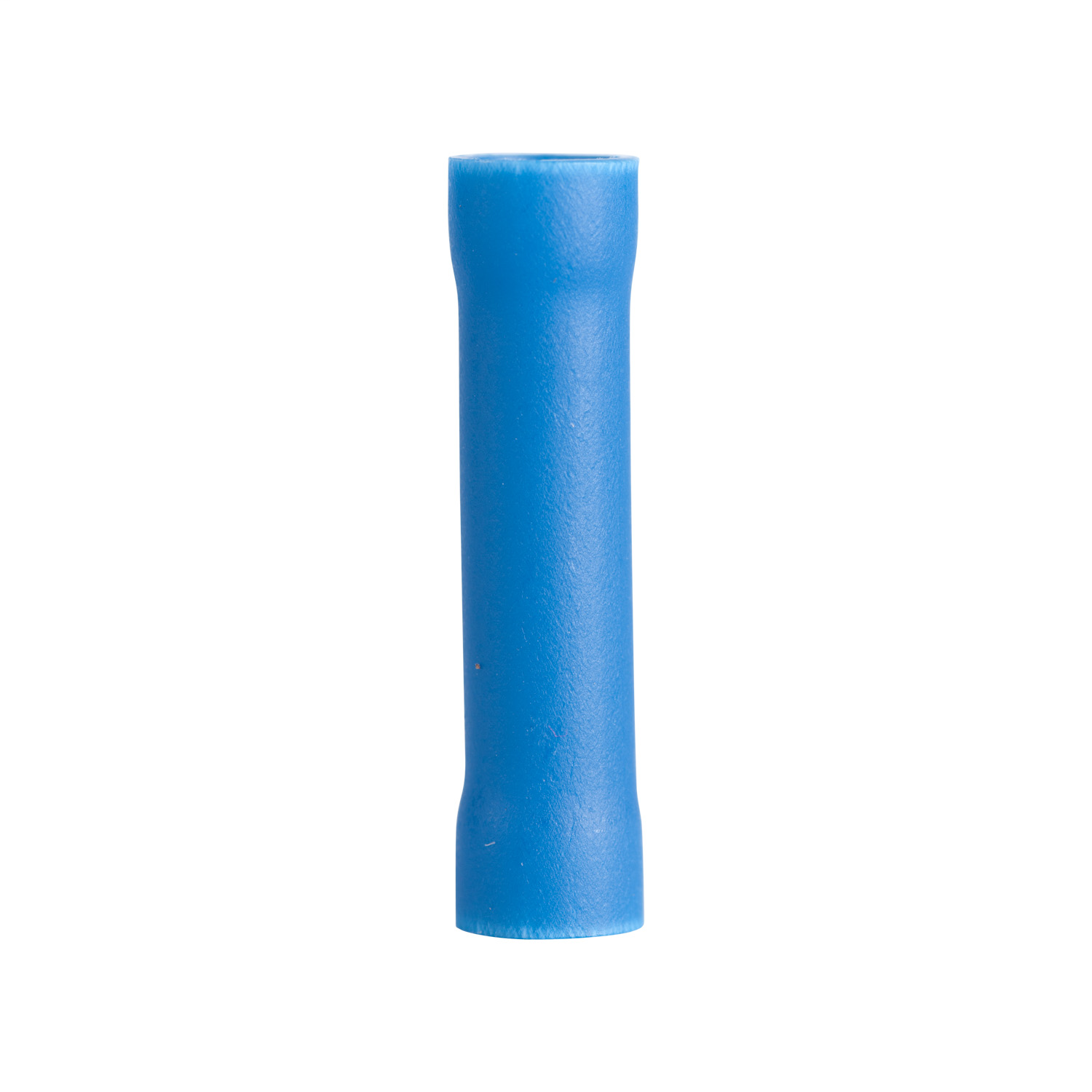

Gardner Bender 20-123 16 AWG to 14 AWG Butt Splice (21-Pack)

Product Description

The Gardner Bender 20-123 is an insulated crimp-type butt splice connector designed to join 16 AWG to 14 AWG stranded wire and is supplied as a 21-pack. It features a copper contact with vinyl (PVC) insulation, a 0.098 inch barrel inner diameter and approximately 0.97 inch length for compact crimp connections. The connector is rated to 600 volts, rated to 167°F, and carries UL/cULus listings for general-purpose electrical splicing.

• Wire range: 16 AWG to 14 AWG; crimp-type insulated butt splice; supplied as a 21-pack
• Electrical ratings: 600 V voltage rating; temperature rating 167°F; UL/cULus listed
• Construction: copper contact, vinyl (PVC) insulation; barrel inner diameter 0.098 in; length ~0.97 in

Product Highlights

Insulated crimp butt splice for 16–14 AWG with copper contact, 600 V rating, 21 per pack

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 20-123
• Country of Origin: Taiwan
