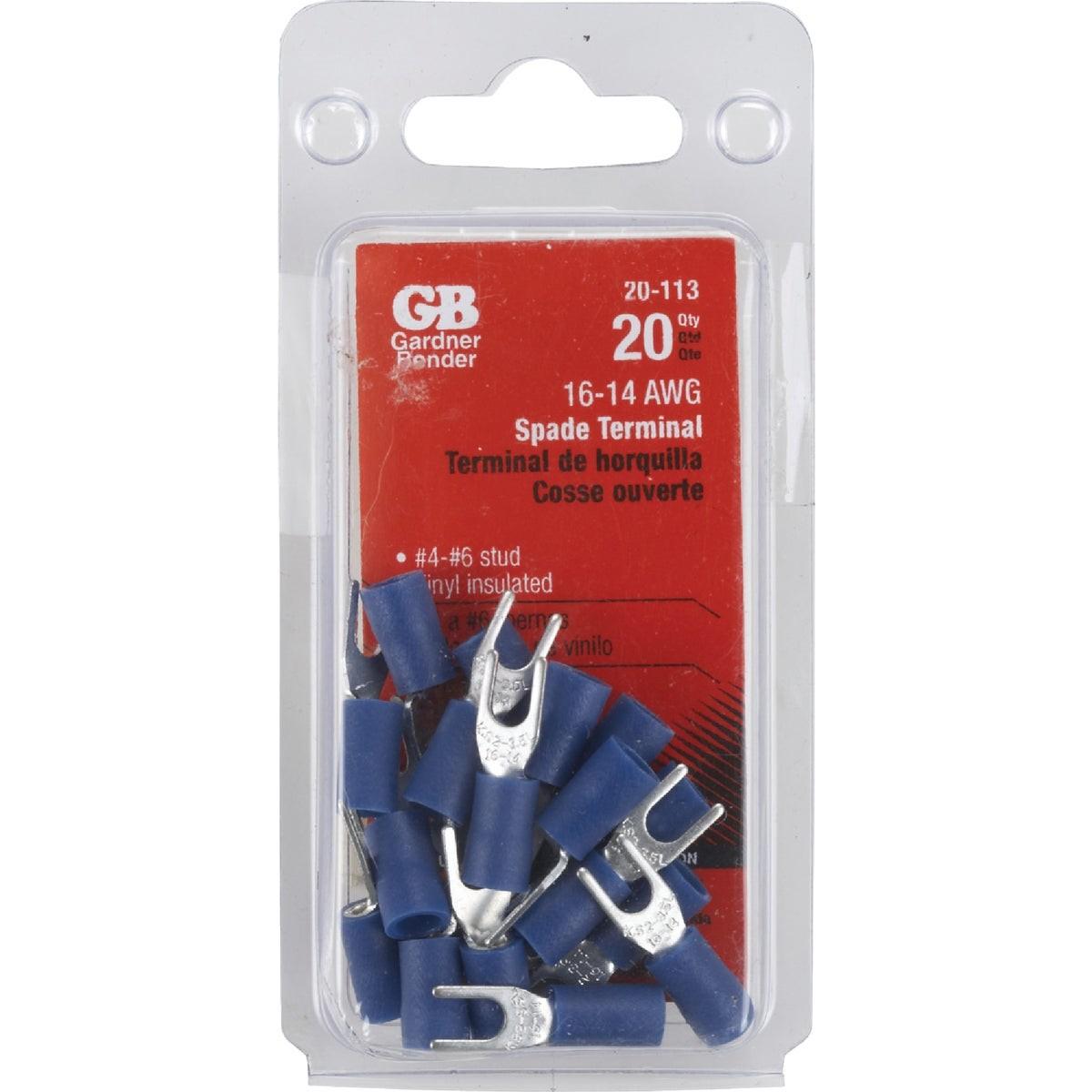

Gardner Bender 20-113 Spade Terminal 16-14 Awg 20-pack

Product Description

The GARDNER BENDER 20-113 is a vinyl-insulated barrel spade terminal designed for crimp-type wire connections in electrical wiring applications. Each terminal accepts 16 to 14 AWG wire and is rated for up to 600 volts maximum. The vinyl insulation provides a secure, protective sleeve over the crimped barrel, keeping the connection insulated and resistant to accidental contact. Sold in a 20-pack, the 20-113 is suited for electricians, HVAC technicians, and panel wiring professionals who need a consistent, reliable mechanical termination on spade-style connectors.

These spade terminals are commonly used in residential and light commercial electrical work, including control wiring, appliance wiring, panel connections, and low-voltage circuit terminations. The crimp barrel accepts 16 to 14 AWG conductors, making them appropriate for branch circuits, fixture wiring, and equipment control leads where a spade lug connection is required at a terminal block or screw-type binding post.

Key Features

• Vinyl-insulated barrel construction for insulated crimp-type terminations
• Wire range: 16 to 14 AWG
• Maximum voltage rating: 600 volts
• Temperature rating: 167 degrees F (75 degrees C)
• Spade tongue fits standard screw-type terminal blocks and binding posts
• 20-pack quantity for stocking and service use

Compatibility

Designed as a standard crimp-style spade terminal compatible with 16 to 14 AWG wire for use at screw-type terminal blocks, binding posts, and equipment lugs requiring a spade-tongue termination.

Installation Notes

Installation is performed by licensed electricians or qualified technicians using a proper ratcheting or calibrated crimp tool rated for insulated terminals in the 16 to 14 AWG range. De-energize and lock out the circuit before terminating any conductors. Confirm that the crimped barrel is fully seated and the insulation sleeve is intact before restoring power. Follow applicable NEC requirements for the circuit type and environment.

Technical Specifications

• Wire Range: 16 to 14 AWG
• Maximum Voltage: 600 volts
• Temperature Rating: 167 degrees F / 75 degrees C
• Insulation Type: Vinyl
• Connection Type: Crimp
• Terminal Style: Spade
• Pack Quantity: 20
• Weight: 0.054 pounds

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 20-113
