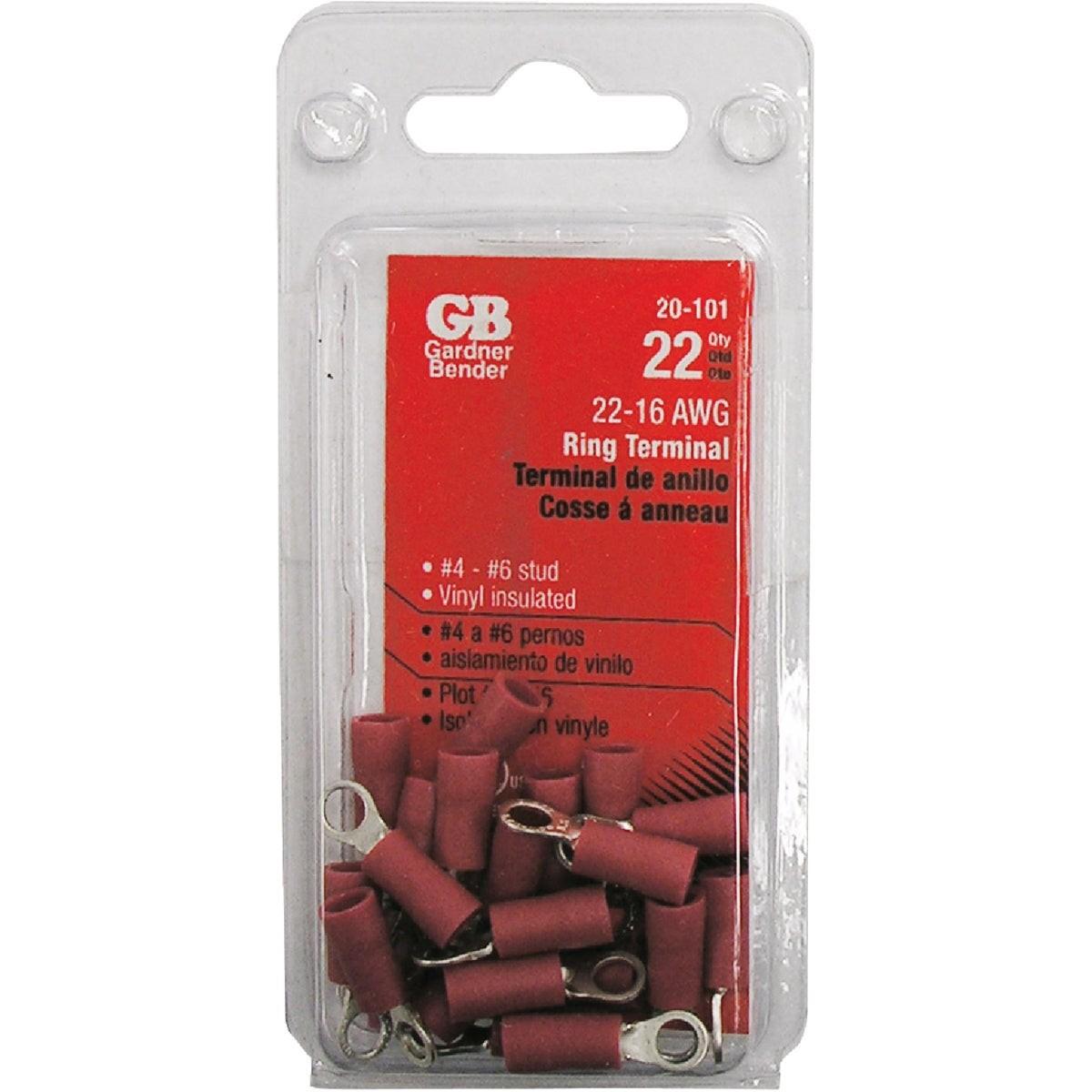

Gardner Bender 20-101 Ring Terminal 22-16 Awg 22-pack

Product Description

The GARDNER BENDER 20-101 is a vinyl-insulated barrel ring terminal designed for secure, insulated electrical connections in wire termination applications. Rated at 600 volts maximum, it accommodates 22 to 16 AWG wire and fits stud sizes 4 through 6. The red vinyl barrel insulation provides both wire strain relief and a quick visual reference for gauge range. Each pack contains 22 terminals, making it practical for panel work, fixture wiring, and general low-voltage circuit termination. Licensed electricians and experienced tradespeople use these terminals with a ratcheting or manual crimping tool to produce reliable, pull-resistant connections that meet standard wiring practice.

These ring terminals are suited for residential and light commercial electrical work wherever a secure ring-lug connection to a screw or stud terminal is required. Typical applications include control panels, junction boxes, appliance wiring, and low-voltage circuit boards. The 22 to 16 AWG range covers common small-gauge wire used in thermostats, sensors, lighting circuits, and similar installations. The 22-pack quantity supports multi-point termination jobs without the need to open additional packages.

Key Features

• 600-volt maximum rating for standard low-voltage wiring applications
• Accepts 22 to 16 AWG wire for small-gauge conductor termination
• Fits stud sizes 4 through 6
• Red vinyl barrel insulation provides strain relief and AWG range identification
• 22 terminals per pack for multi-point termination jobs
• Temperature rated to 167 degrees F (75 degrees C)

Compatibility

Designed as an OEM-style replacement and general-use ring terminal compatible with 22 to 16 AWG conductors and number 4 through 6 screw or stud termination points in standard electrical enclosures and control panels.

Installation Notes

Installation should be performed by a licensed electrician or qualified tradesperson in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any conductors. Use a calibrated ratcheting crimping tool sized for the 22 to 16 AWG range to ensure a gas-tight crimp; do not rely on solder alone or use an undersized tool. Inspect each crimped terminal for proper barrel compression and secure ring seating before re-energizing the circuit.

Technical Specifications

• Wire Range: 22 to 16 AWG
• Stud Size: 4 to 6
• Voltage Rating: 600 volts maximum
• Temperature Rating: 167 degrees F / 75 degrees C
• Insulation Material: Vinyl
• Insulation Color: Red
• Quantity per Pack: 22
• Package Weight: 0.044 pounds

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 20-101
