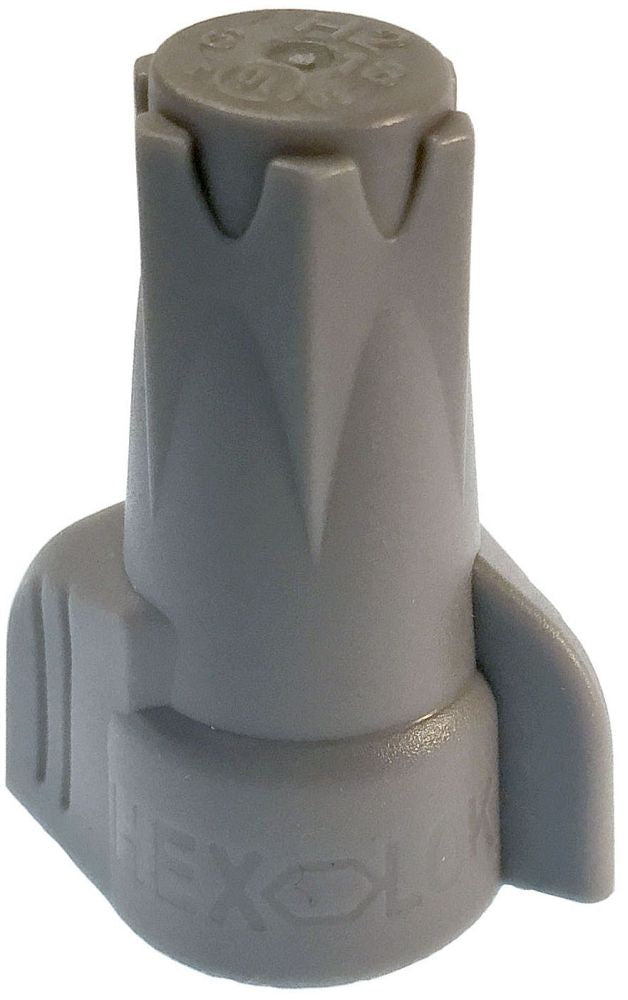

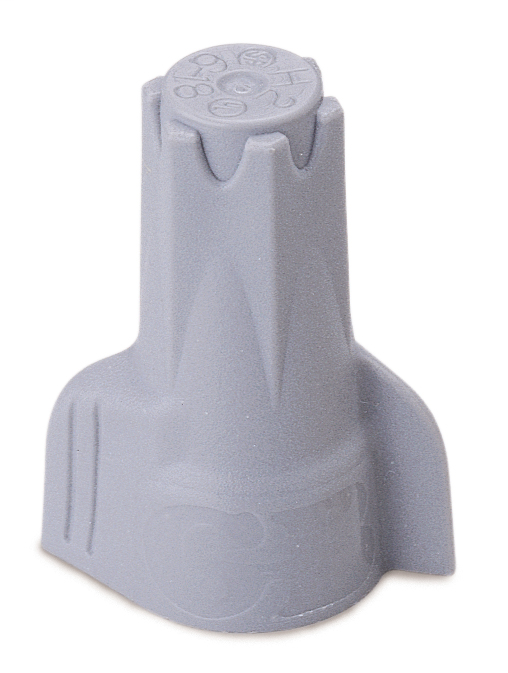

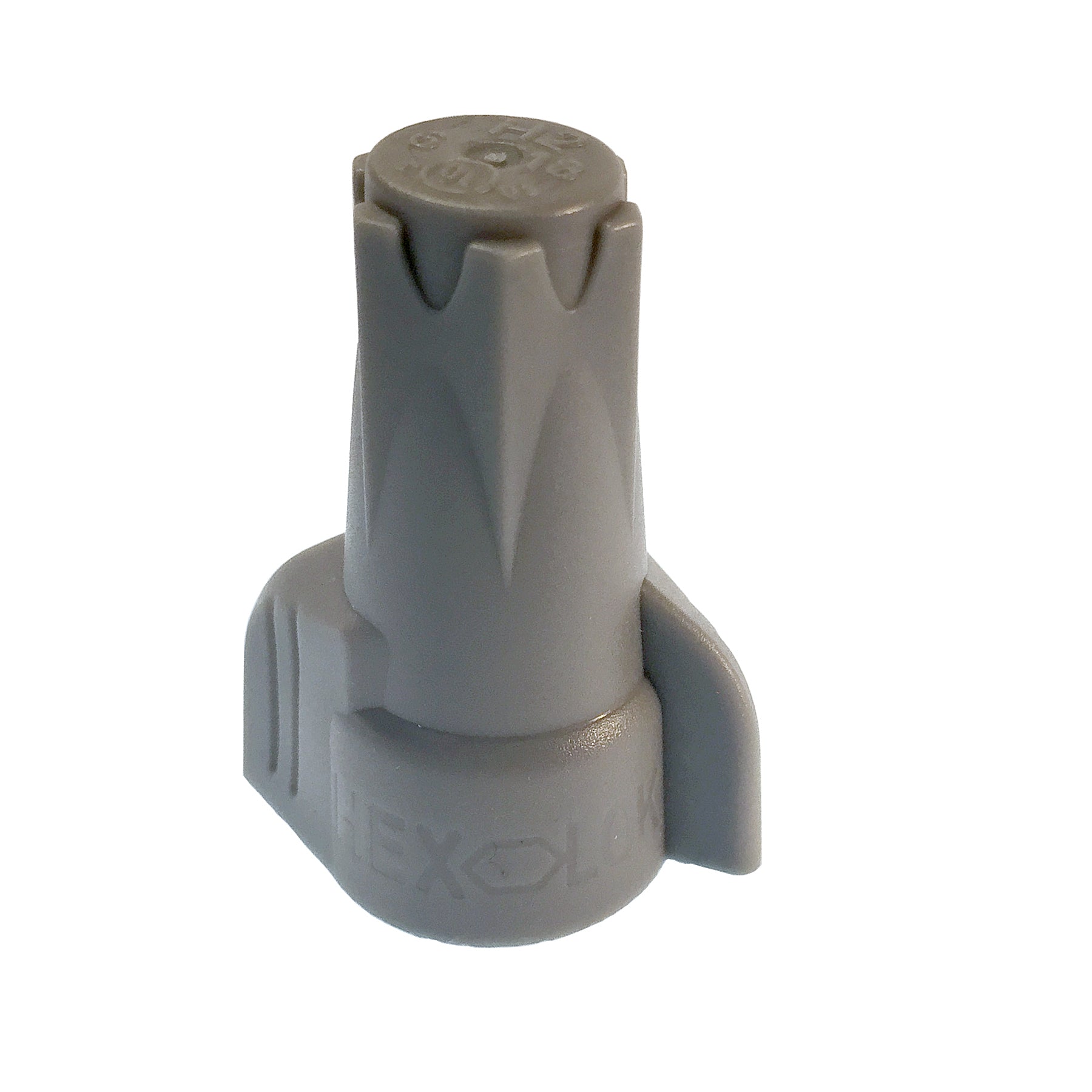

Gardner Bender 19-2H2 Wire Connector

Product Description

The Gardner Bender 19-2H2 wire connector features a hex head and a streamlined design. It is suitable for connecting copper wires, accommodating sizes from fourteen to six AWG. This connector is UL and CSA approved, with a voltage rating of six hundred volts, or one thousand volts when used for lighting fixtures, luminaires, and signs. The square wire spring ensures secure connections.

• Accommodates wire sizes fourteen to six AWG
• UL and CSA approved
• Rated for six hundred volts, or one thousand volts in lighting applications

Product Highlights

The Gardner Bender wire connector is reliable and designed for secure electrical connections.

Product Information

Standard Information

• Brand: Gardner Bender
• Model: H2

Technical Specifications

• Maximum Wire Combination Size: (1) #6, (1) #8
• Spring Type: Square Wire
• Approval: UL, CSA
• Voltage Rating: 600 V; 1000 V (Lighting Fixture, Luminaire, Sign)
• Wire Type: Copper
• Minimum Wire Combination Size: (3) #14
• Height: 1.328 inches
• Length: 1 inch
• Width: 0.438 inches
• Temperature Rating: 221 degrees F
