Gardner Bender 14-630 Heavy-duty Battery Clamp 30A 2-pack

Product Description

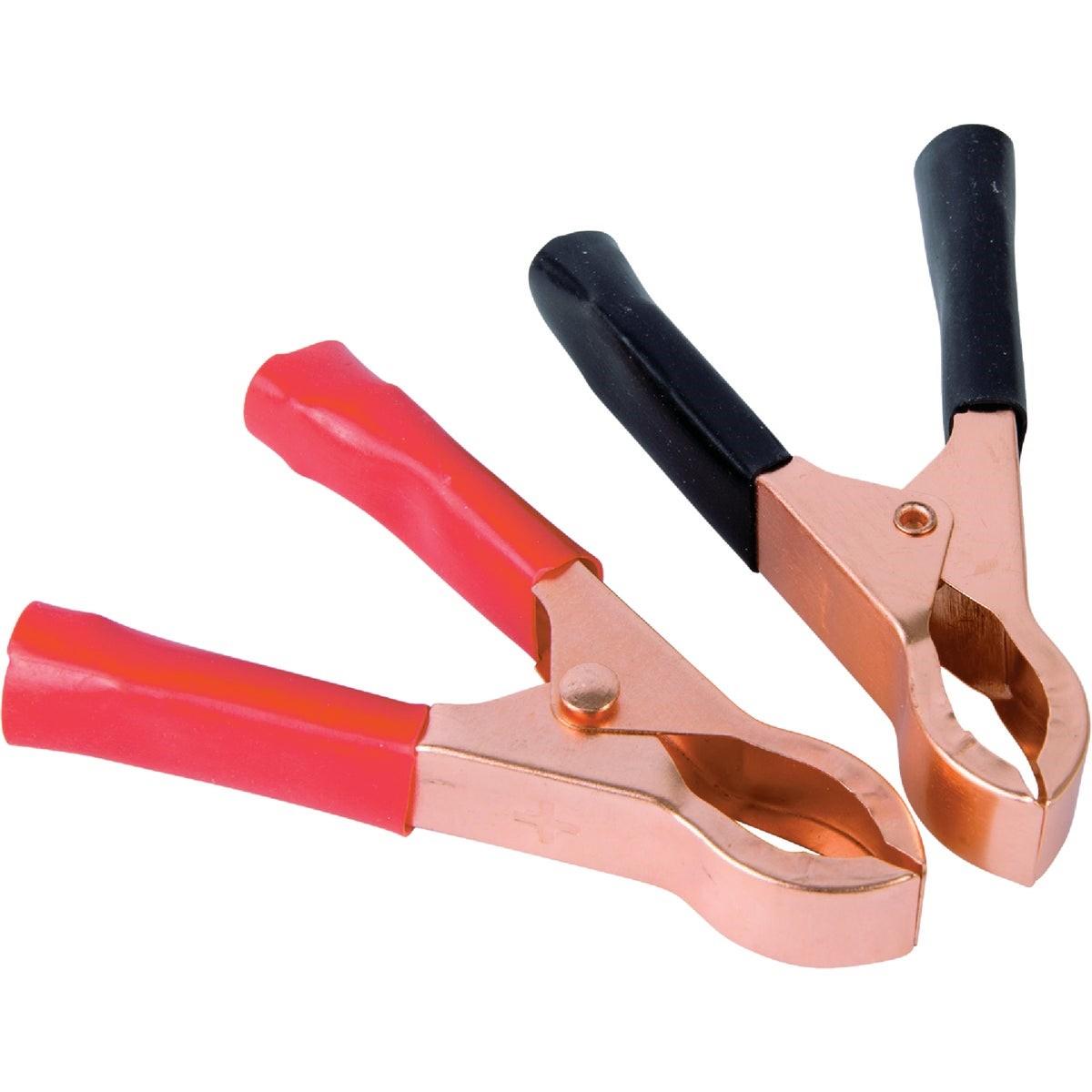

The GARDNER BENDER 14-630 is a heavy-duty copper-plated spring battery clamp sold as a 2-pack (one red, one black) for use in automotive and marine electrical service. Each clamp measures 3 inches in length with jaws that open to 15/16 inch, allowing solid contact on battery terminals, studs, and bare battery posts. Rated at 30 amps, the clamps feature tough vinyl insulators over a copper-plated steel spring body. UL listed. Electricians and marine technicians working on 12-volt battery systems will find these clamps a straightforward, code-compliant connection solution.

These clamps are suited for residential garage shops, mobile service vehicles, and marine vessel battery maintenance. Typical applications include temporary jumper connections, battery testing rigs, and semi-permanent terminal connections on automotive or marine battery banks. The paired red and black color coding supports correct polarity identification during installation and service.

Key Features

• 30-amp rated copper-plated spring construction for reliable current transfer
• Jaws open to 15/16 inch to fit standard battery terminals, studs, and bare posts
• 3-inch overall length for easy handling in tight battery compartments
• Tough vinyl insulators on each clamp for grip and protection
• One red and one black clamp per pack for polarity identification
• UL listed for automotive and marine battery applications

Compatibility

Designed for use with auto and marine batteries where a clamp-style terminal connection is required.

Installation Notes

Battery clamps of this type are installed by electricians and marine technicians performing battery service or temporary power connections. Always disconnect the negative terminal first and reconnect it last to reduce arc and short-circuit risk. Ensure jaw contact surfaces are free of corrosion before clamping to maximize conductivity. Follow applicable NEC and ABYC guidelines when making connections in automotive or marine electrical systems.

Technical Specifications

• Amperage Rating: 30 amps
• Clamp Length: 3 inches
• Jaw Opening: 15/16 inch
• Material: Copper-plated spring with vinyl insulators
• Package Quantity: 2 clamps (1 red, 1 black)
• Weight: 0.088 pounds
• Certifications: UL Listed
• UPC: 00032076146306

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 14-630
