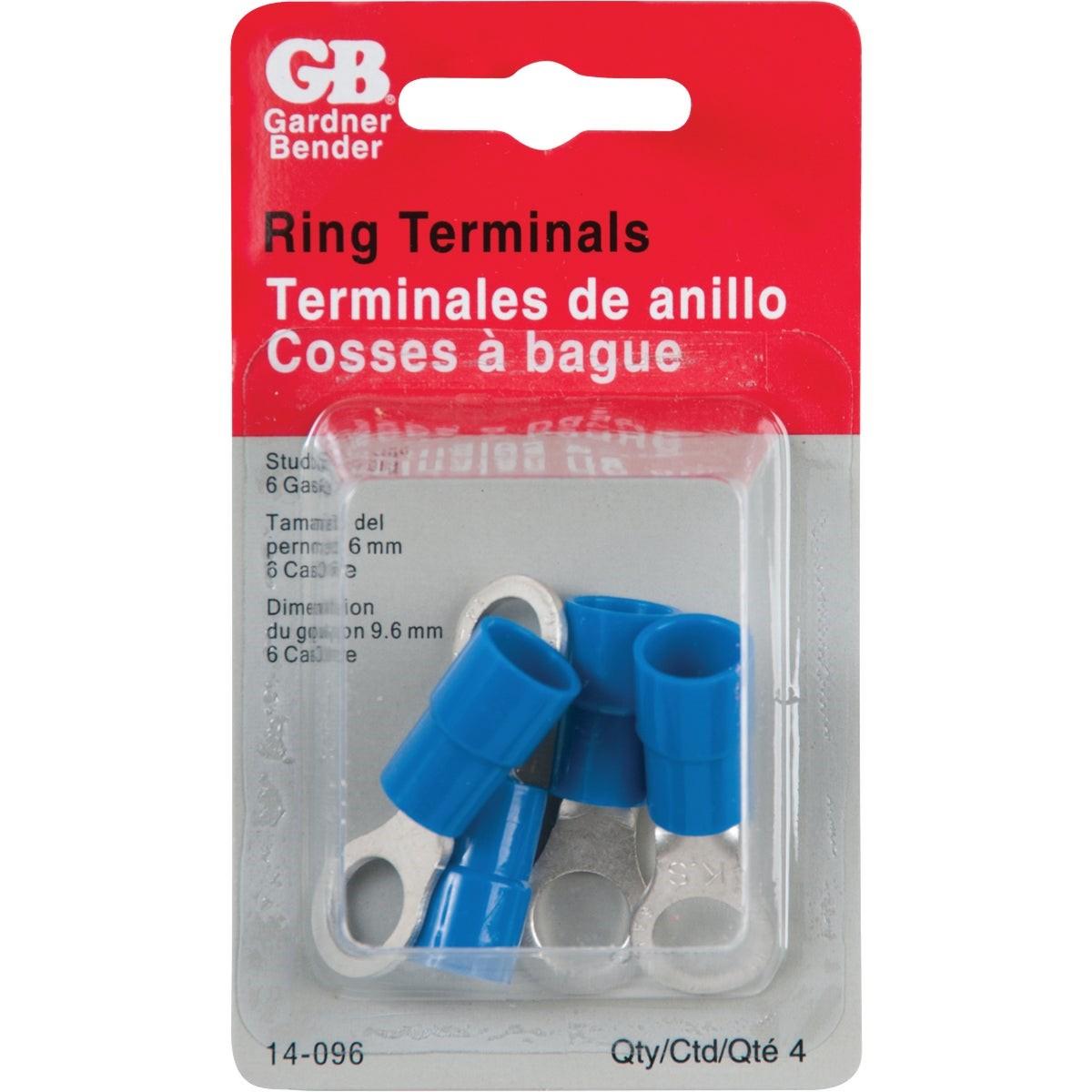

Gardner Bender 14-096 Ring Terminal 6 Awg 3/8 in 600V 4-pack

Product Description

The GARDNER BENDER 14-096 is a vinyl-insulated barrel ring terminal designed for secure, permanent electrical connections in wire termination applications. Rated at 600 volts maximum and sized for 6 AWG conductors with a 3/8 inch stud hole, this terminal provides a reliable crimp connection between a wire and a bolted lug or stud. The blue vinyl insulation indicates the 6 AWG wire gauge range and protects the connection point from abrasion and incidental contact. Sold in a 4-pack, these terminals suit electricians working on panel wiring, grounding circuits, battery connections, and similar fixed-voltage applications.

These ring terminals are suited for residential and light commercial electrical work where 6 AWG conductors terminate at a 3/8 inch stud. Typical installation scenarios include grounding electrodes, battery bank wiring, motor lead terminations, and service equipment bonding. The vinyl barrel insulation is rated for operation up to 167 degrees F (75 degrees C), making these terminals appropriate for standard indoor electrical environments. Licensed electricians and experienced installers working within NEC guidelines are the primary end users.

Key Features

• Rated 600 volts maximum for use in standard low-voltage electrical circuits
• Sized for 6 AWG wire with a 3/8 inch stud hole for secure bolted termination
• Blue vinyl barrel insulation provides mechanical protection at the crimp zone
• Temperature rated to 167 degrees F (75 degrees C) for standard indoor environments
• Sold as a 4-pack, reducing per-terminal cost on multi-connection jobs

Compatibility

Designed as a standard crimp-style ring terminal for 6 AWG conductors terminating at 3/8 inch studs or lugs in fixed electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any conductors. Use a properly sized ratcheting crimp tool rated for insulated ring terminals to ensure a gas-tight crimp. Do not solder over a crimped barrel terminal unless the terminal is specifically rated for dual crimp-and-solder use.

Technical Specifications

• Wire Gauge: 6 AWG
• Stud Size: 3/8 inch
• Voltage Rating: 600 volts
• Temperature Rating: 167 degrees F / 75 degrees C
• Insulation Material: Vinyl
• Insulation Color: Blue
• Package Quantity: 4
• Weight: 0.084 pounds
• UPC: 00032076046187

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 14-096
