Gardner Bender 13-095 GreenGard Green #95 500/Bag

Product Description

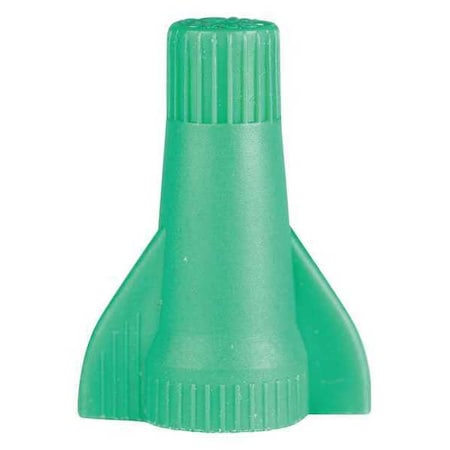

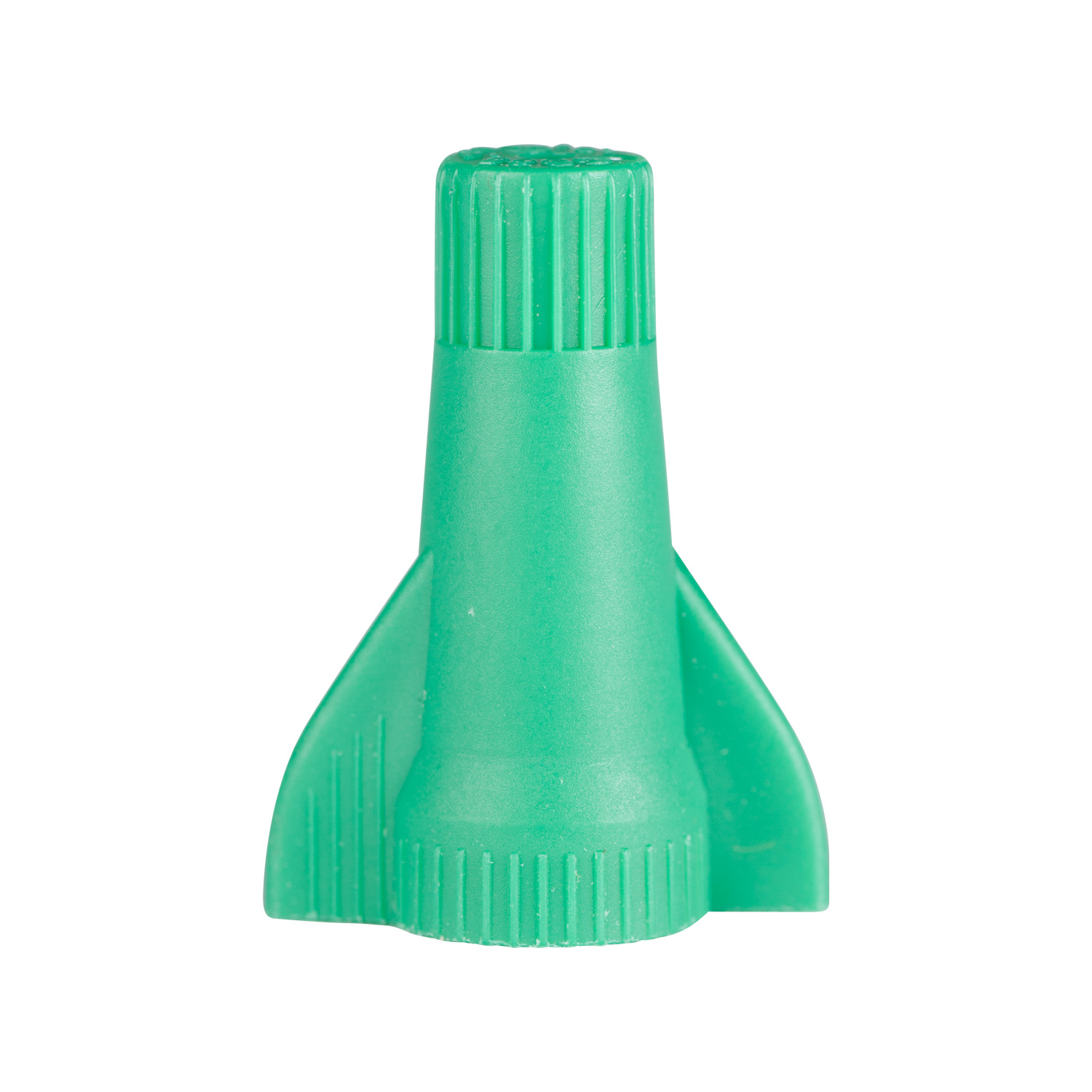

The GARDNER BENDER 13-095 GreenGard connectors are designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. These connectors feature knurled wings for a sure grip and greater twisting leverage/torque. Added plating protection provides corrosion resistance in grounding applications. Use for ground applications, building wire, lighting fixtures, luminaries and signs.

• Easier to use - New design enables torque-up with improved grip
• Contoured, offset wings enable firm ground connections
• Flame retardant thermoplastic shell resists punctures, cuts, abrasion and corrosion

Product Highlights

GreenGard connectors offer added plating protection for corrosion resistance in grounding applications. The thermoplastic shell is designed for long-lasting strength and resists chemicals.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 13-095
• Country of Origin: China

Technical Specifications

• Catalog Number: 13-095
• Brand: Gardner Bender
• Manufacturer: Gardner Bender
• Product ID: 1529877
• Cooper Electric Part Number: 1529877
• Width: 0.906 in
• Height: 1.25 in
• Length: 0.438 in
• 12-Digit UPC: 032076130954
• Product UPC: 03207613095
• Model: #95
• Out of Package Height (in): 1.25
• Out of Package Width (in): 0.31
• Out of Package Length/Depth (in): 0.91
• Part Number: 13-095
• Certificate: cUL/UL Listed, RoHS Compliant
• Product Dimensions: 0.91-in X 0.31-in X 1.25-in
• Manufacturer Part Number: 13-095
• Product Series: GreenGard Grounding Connectors
• Family Series: Gardner Bender Terminals, GreenGard Grounding Connectors Series
• Description: Greengard, Green, #95, BG/500
• Max Voltage: 600 V
• Wire Type: Copper to Copper
• Style: Wing
• Package Type: Bag
• Direct Burial: No
• Strain Relief: No
• Maximum Wire Capacity: (4) #12
• Wire Size Range: 14-12 AWG
• Approvals: cUL, UL
• Min: 2 #14
• Max: 4 #12
