Product Description

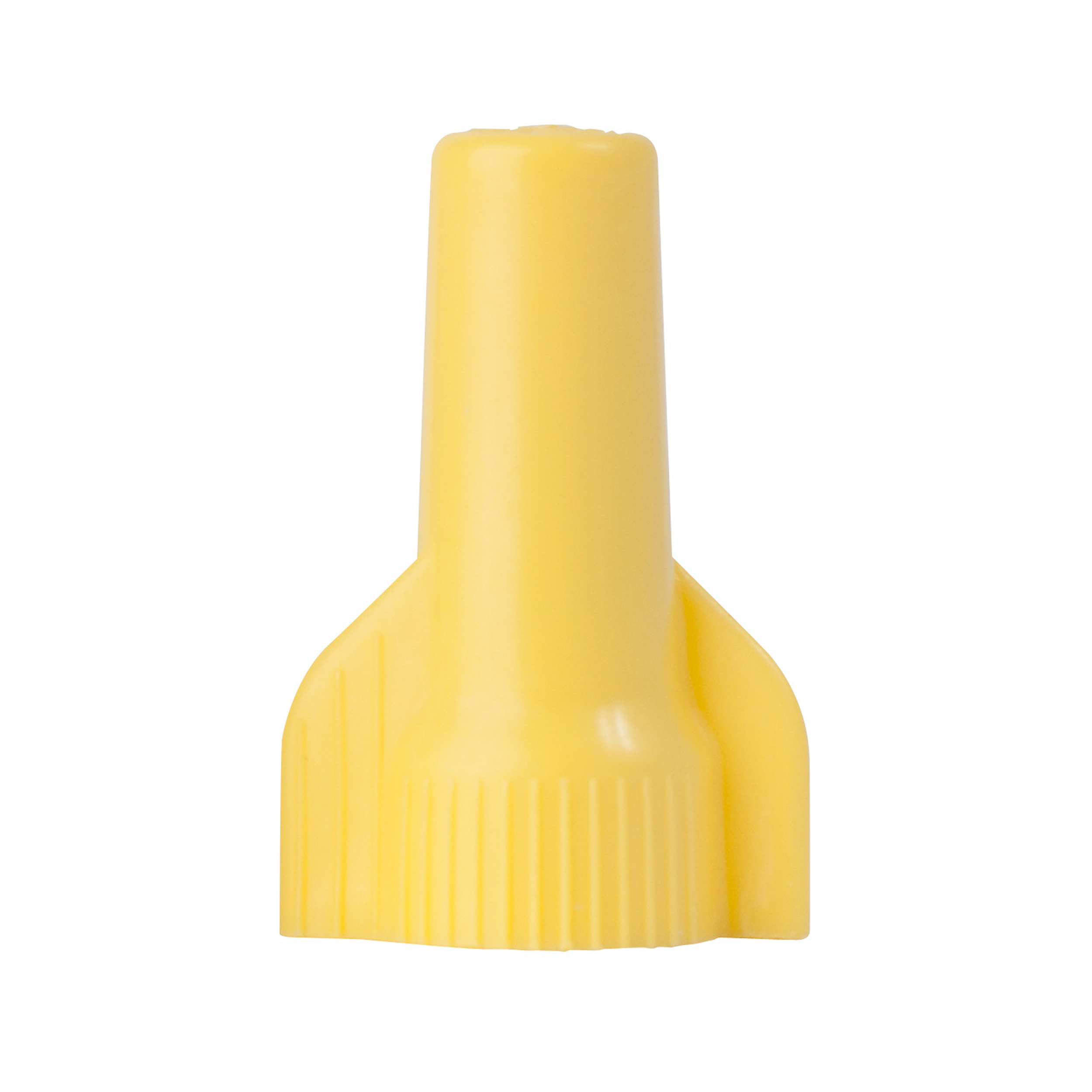

The Gardner Bender 13-084 WingGard twist-on wire connectors offer quality and durability with a high-leverage, easy-on, wing-type design. These connectors offer a wide range of connection options. The thermoplastic shell provides chemical resistance, while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring adjusts to the splice size, ensuring a lasting connection.
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
- Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit
Product Highlights
These WingGard wire connectors feature a thermoplastic shell, a zinc-plated square wire-spring, and a deep skirt design. Suitable for copper to copper connections.
Product Information
Standard Information
-
Brand: GARDNER BENDER
-
Manufacturer Part Number: 13-084
-
Country of Origin: China
Technical Specifications
-
Brand: Gardner Bender
-
Material: Thermoplastic
-
Standard: C/US UL Listed
-
Wire Range: #22 - #10 AWG
-
Package Quantity: 500
-
Manufacturers Part Number: 13-084
-
Certifications: Canada & U.S.A UL Listed
-
MPN: 13-084
-
Model: #84
-
Max Voltage: 600 V
-
Maximum Temperature: 221 °F
-
Wire Type: Copper to Copper
-
Style: Wing
-
Package Type: Bag
-
Direct Burial: No
-
Strain Relief: No
-
Maximum Wire Capacity: (3) #12
-
Wire Size Range: 22-10 AWG
-
Approvals: cUL, UL
-
Connector Style: Winged
-
Number of Ports: 1
-
Contact Material: Copper
-
Compatible Mounting Type: Wire
-
Number of Poles: 1
