Gardner Bender 13-004 WireGard 22-10 AWG

Product Description

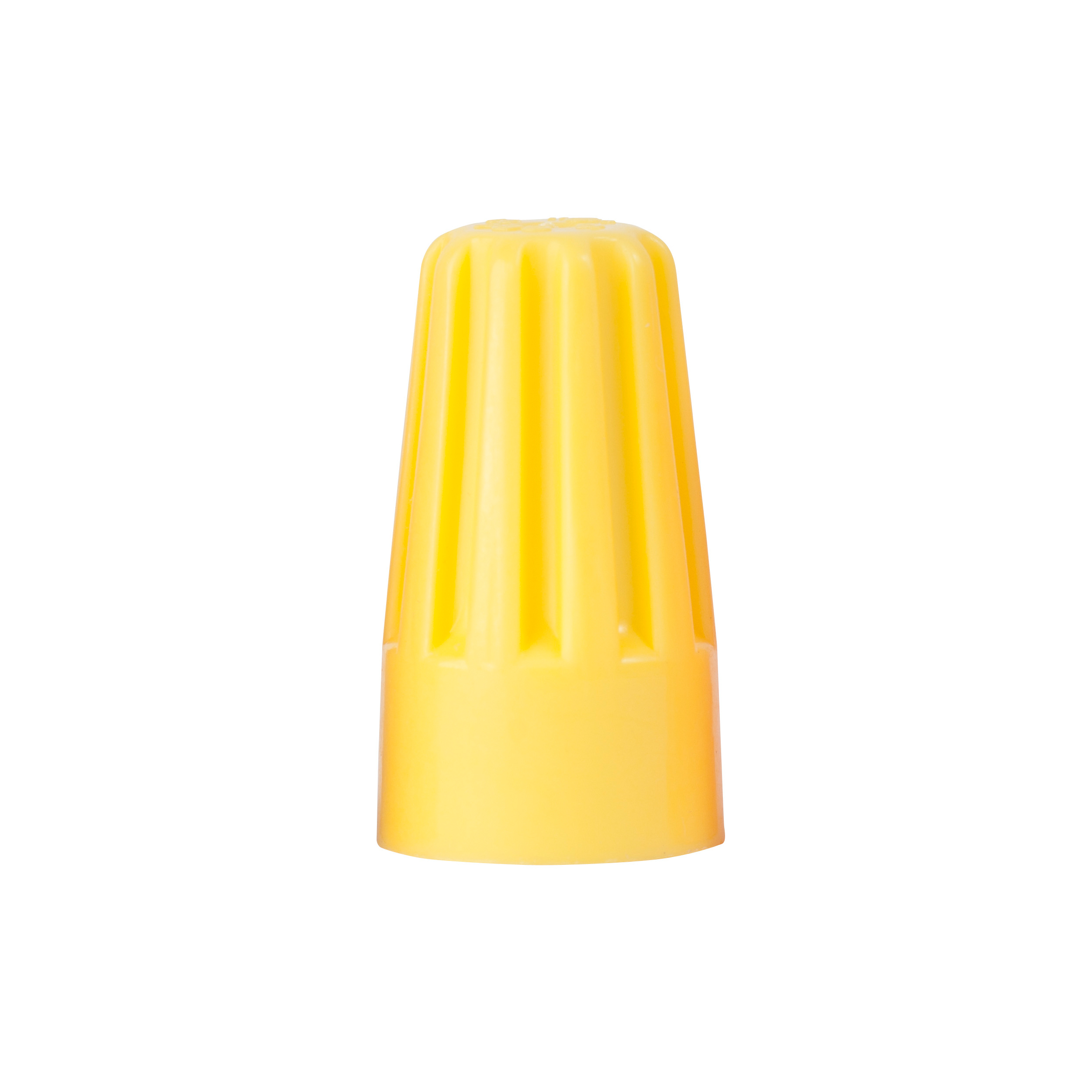

The Gardner Bender 13-004 WireGard twist-on wire connectors are designed for general purpose applications requiring the connection of 2 or more copper wires. These WireGard connectors feature a straight type Polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity.

• Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
• Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit

Product Highlights

These connectors meet or exceed UL pull out and dielectric test requirements. The thermoplastic shell shields against environmental extremes and resists chemical action. Color coded for easy size selection.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 13-004
• Country of Origin: China

Technical Specifications

• Brand: Gardner Bender
• Width: 0.547 in
• Height: 0.938 Inch
• Length: 0.547 Inch
• Material: Thermoplastic
• Standard: C/US UL Listed
• Connection Type: Screw-On
• Wire Range: #18 - #10 AWG
• Package Quantity: 500
• Certifications: Canada & U.S.A UL Listed
• Out of Package Height (in): 0.94
• Out of Package Width (in): 0.27
• Out of Package Length/Depth (in): 0.55
