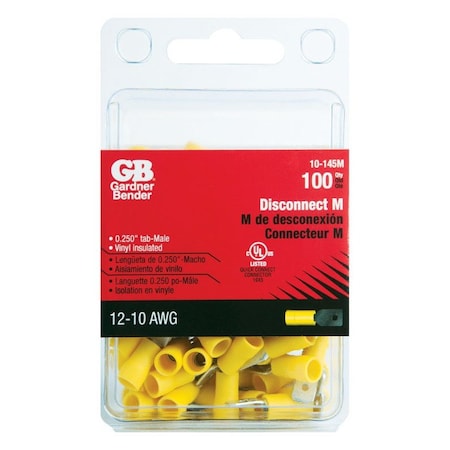

Gardner Bender 10-145M Disconnect Male 12-10 AWG (100 Pack)

Product Description

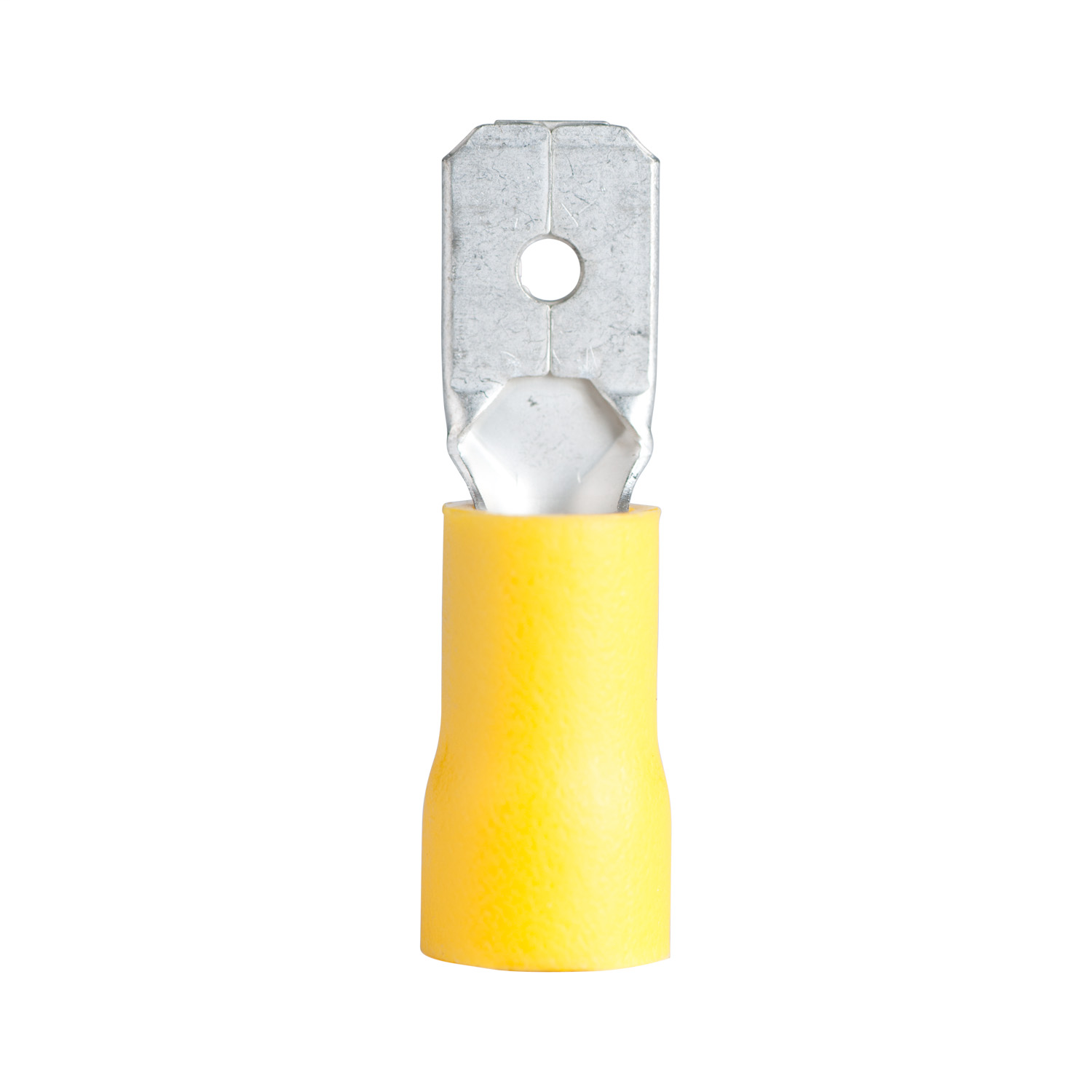

The Gardner Bender 10-145M disconnect is a male disconnect designed for quick and reliable wire connections. These crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. The vinyl insulated barrels provide a high degree of protection and carry a maximum 600V rating. Temperature ratings for the complete line are 75°C (167°F).

• Industry standard color-coded by wire gauge size
• Quick and reliable crimp-type wire connectors
• UL listed with both Canadian and U.S. Requirements

Product Highlights

These Gardner Bender disconnects provide reliable wire connections for various applications and are UL listed.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 10-145M
• Country of Origin: China

Technical Specifications

• Terminal Type: Disconnect - Male
• Wire Size Range: 12-10 AWG
• Insulated: Insulated
• Insulation Material: Vinyl
• Maximum Temperature: 167 °F
• Approvals: cUL, UL
• Part Number: 10-145M
• Certificate: cUL/UL Listed, RoHS Compliant
• Product Dimensions: 0.25-in X 0.25-in X 0.87-in
• Out of Package Height (in): 0.87
• Out of Package Width (in): 0.25
• Out of Package Length/Depth (in): 0.25
• MPN: 10-145M
• Brand: Gardner Bender
