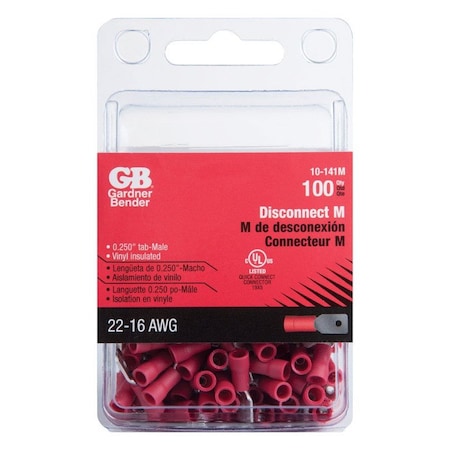

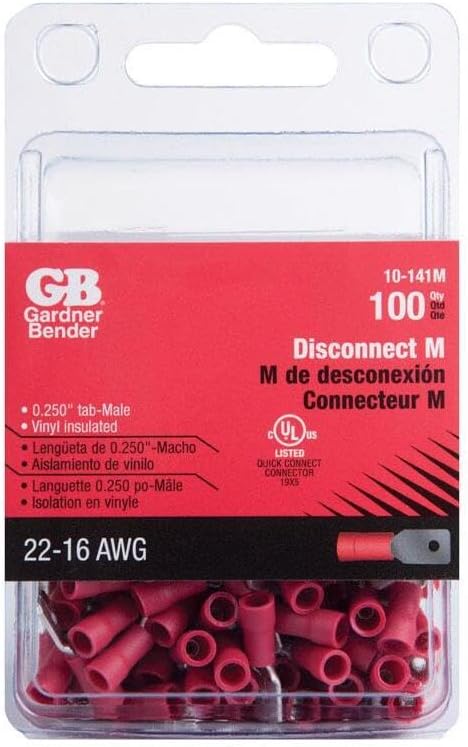

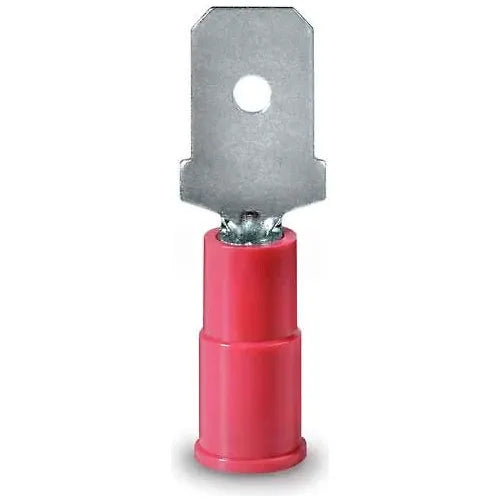

Gardner Bender 10-141M Disconnect Male 22-16 AWG 0.250 Tab

Product Description

The Gardner Bender 10-141M disconnect is a male, crimp-type wire connector designed for quick and reliable connections. It accommodates wire sizes from 22-16 AWG and features a 0.250" tab. The disconnect is rated at 600V maximum and has a temperature rating of 167°F (75°C).

• 0.250" Tab quick and reliable crimp-type wire connector
• Rated at 600V maximum
• Temperature rating is 167°F (75°C)

Product Highlights

This Gardner Bender disconnect provides secure wire connections for various electrical applications, ensuring safety and durability.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 10-141M
• Country of Origin: China

Technical Specifications

• Brand: Gardner Bender
• Manufacturers Part Number: 10-141M
• Rating: 600 Volts
• Wire Range: 22-16 AWG
• Package Quantity: 100
• RoHS Compliant: Yes
• Connector Type: Disconnect
• Contact Material: Copper
• Insulation Material: Vinyl
• Specification Met: UL
• Maximum Voltage: 600 Volts
• UPC: 032076103415
• Part Number: 10-141M
• Item model number: 10-141M
• Style: Fully Insulated - Male
• Voltage: 600 Volts
• Item Package Quantity: 1
• Included Components: Gardner Bender 10-141M Disconnect Male, Vinyl-Insulated Barrel
• Batteries Included?: No
• Batteries Required?: No
• Width: 2.750
• Length: 1.250
• Product Series: General Purpose Disconnects
• Family Series: Gardner Bender Terminals, General Purpose Disconnects Series
• Description: Disconnect M, 22-16 AWG, 0.250 Tab, Red; , CL/100
• Terminal Type: Disconnect - Male
• Wire Size Range: 22-16 AWG
• Insulated: Insulated
• Maximum Temperature: 167 °F
• Approvals: cUL, UL
• Net Weight: 0.2438 lbs
• Gross Weight: 0.2775 lbs
• Temperature Rating: 167 degree fahrenheit
