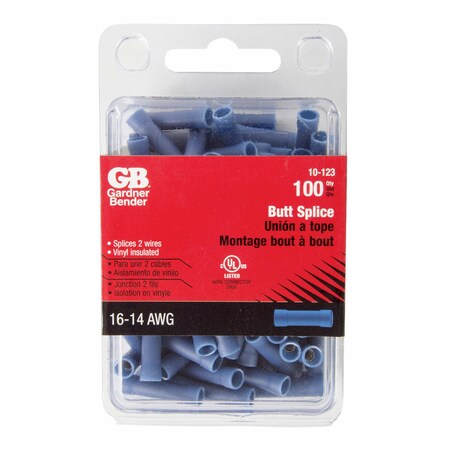

Gardner Bender 10-123 Butt Splice 16-14 AWG (100-Pack)

Product Description

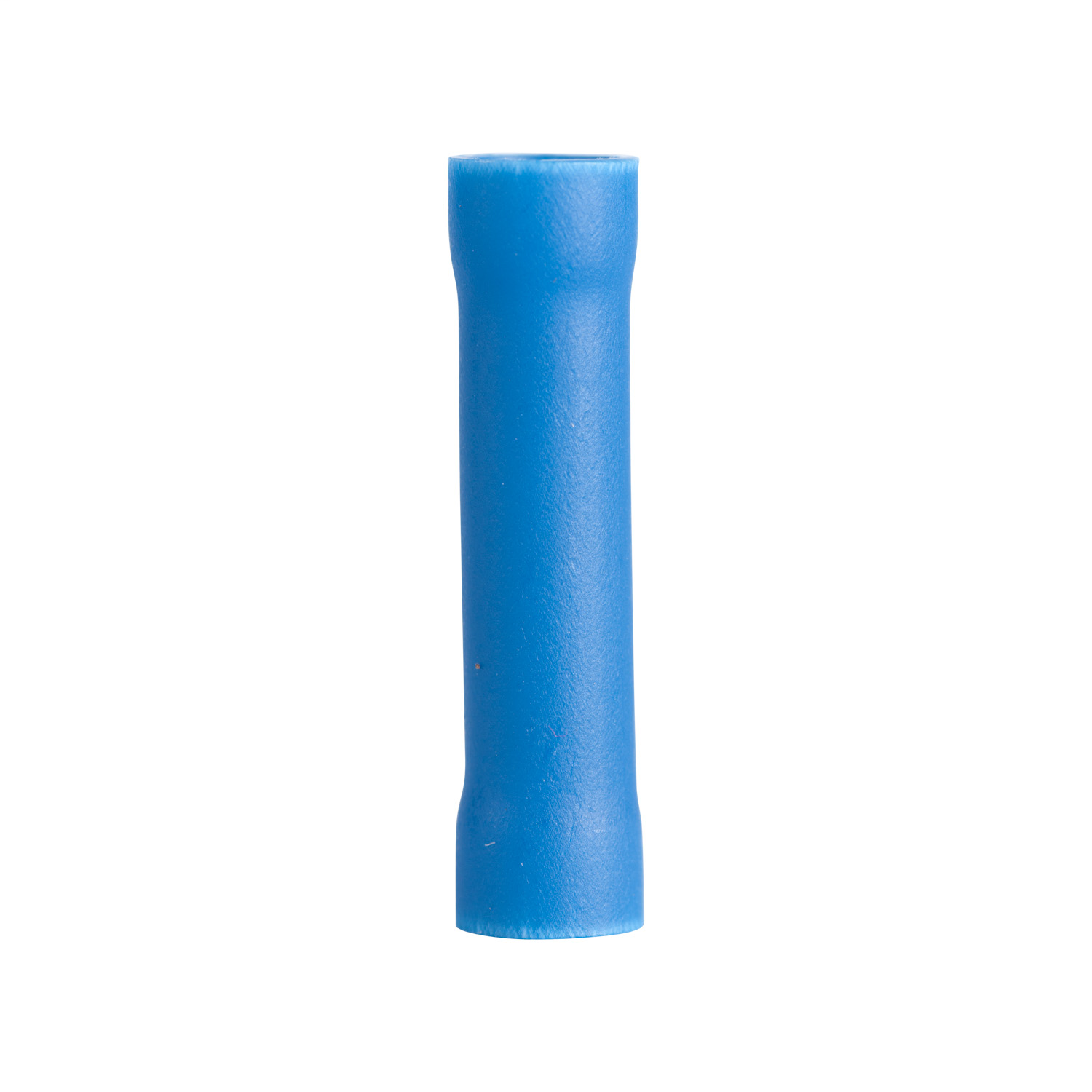

The Gardner Bender 10-123 butt splice provides a protective seal for electrical splices. These wire connectors accommodate 16 AWG to 14 AWG wires and are constructed of vinyl. They are heat resistant up to 167 degrees Fahrenheit and are rated at 600V maximum. This product provides quick and reliable crimp-type wire connections.

• Protects and seals electrical wire splice connections
• Vinyl construction
• High-temperature rating up to 167 degrees Fahrenheit
• UL and CSA safety listings

Product Highlights

These Gardner Bender butt splices offer a reliable insulated connection for general purpose electrical applications.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 10-123
• Country of Origin: Taiwan, Province of China

Technical Specifications

• MPN: 10-123
• ItemID: GBE10123
• DisplayName: GBE10-123
• UOM: Pack
• Manufacturer: GB Electrical
• Brand: Gardner Bender
• Voltage: 600 Volt
• Standard: C/US UL Listed
• Terminal Type: Butt Connector
• Rating: 600 Volts
• Wire Range: #16 - #14 AWG
• Package Quantity: 100
• Wire Gauge: 16 to 14 AWG
• Conductor Material: Copper
• Listing: cULus Listed
• RoHS Compliant: Yes
• Type: Insulated
• Voltage Rating: 600 V
• Wire Size: 16 to 14 AWG
• UPC: 032076101237
• Model: 10-123
• Product Series: General Purpose Butt Splices
• Family Series: Gardner Bender Terminals, General Purpose Butt Splices Series
• Description: Butt Splice, 16-14 Awg, CL/100
• Wire Size Range: 16-14 AWG
• Insulated: Insulated
• Insulation Material: Vinyl
• Maximum Temperature: 167 °F
• Approvals: cUL, UL
