Product Description

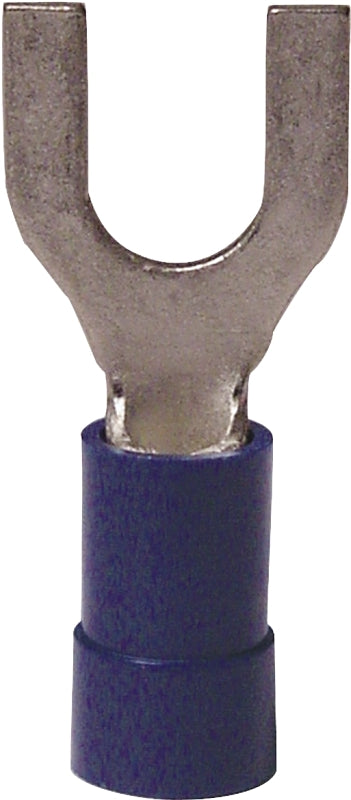

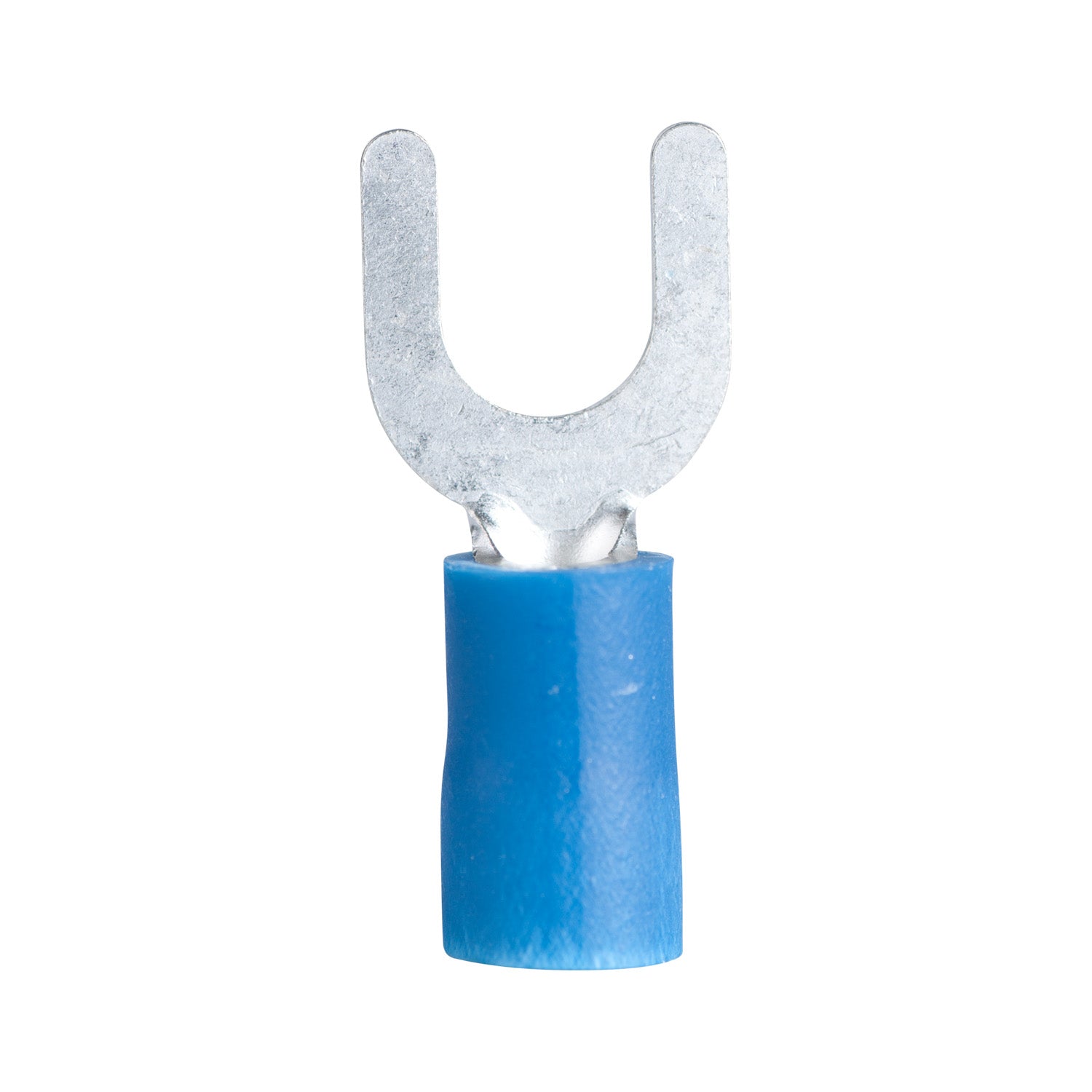

The Gardner Bender 10-113 spade terminal provides a dependable and flexible wiring solution. These vinyl-insulated, copper spade terminals are UL listed and accommodate 16 to 14 AWG wire and #4 to #6 stud sizes. They are rated at 600V maximum with a temperature rating of 167°F.
- Vinyl insulated barrel
- Accommodates 16 - 14 AWG wire and 4 - 6 stud sizes
- Quick and reliable crimp-type wire connections
Product Highlights
These Gardner Bender spade terminals offer secure wire connections for applications requiring up to a 600-Volt rating.
Product Information
Standard Information
-
Brand: GARDNER BENDER
-
Manufacturer Part Number: 10-113
-
Country of Origin: Taiwan, Province of China
Technical Specifications
-
Terminal Type: Spade
-
Brand: Gardner Bender
-
Product UPC: 03207610113
-
Item: Spade Terminal
-
Stud Size: #4, #6
-
Wire Range: 16 to 14 AWG
-
Max. Voltage: 600V
-
Insulation Type: Vinyl
-
Insulation Color: Blue
-
Voltage: 600 V
-
Insulation: Vinyl
-
Material: Copper
-
Temperature Rating: 167 deg F
-
Connector Type: Crimp
-
Contact Material: Copper
-
Insulation Material: Vinyl
-
Terminal: Spade Terminal
-
Specification Met: UL
-
Maximum Voltage: 600 Volts
-
Number of Items: 1
-
Unit Count: 1.0 Count
-
Manufacturer: Actuant
-
Connector Gender: Male
-
UPC: 032076101138
-
Part Number: 10-113
-
Item model number: 10-113
-
Is Discontinued By Manufacturer: No
-
Style: Spade
-
Item Package Quantity: 1
-
Included Components: Rough Electrical^spade-terminals
-
Batteries Included?: No
-
Batteries Required?: No
-
Warranty Description: Warranty
-
ASIN: B000BW0YUS
-
Voltage Rating: 600 V
-
Wire Size: 16 to 14 AWG
-
Application: For general purpose
-
Manufacturer Part Number: 10-113
-
MPN: 10-113
-
Gauge: 16-14
-
Type: Connectors & Terminals
-
Model: 10-113
-
Wire connector type: Spade Terminal
-
Features: Insulated
-
Wire Type: Insulated Wire
-
Product Type: Spade Terminal
-

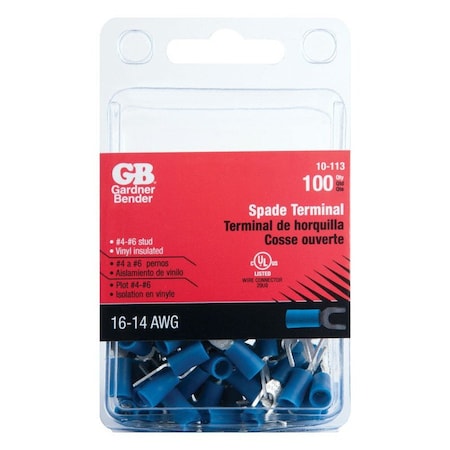

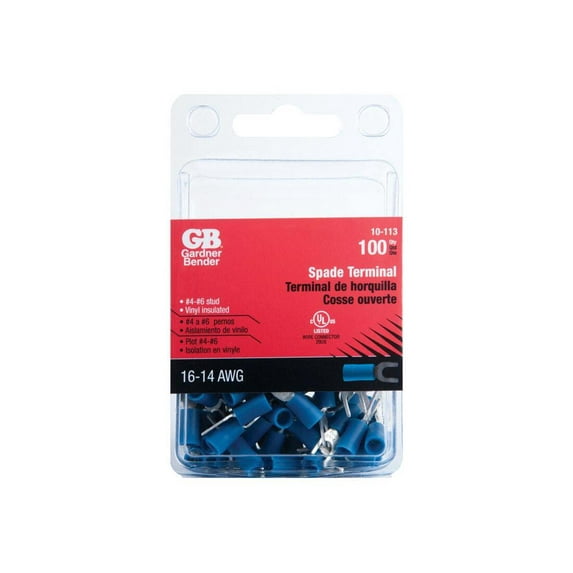

Number in Package: 100 pk
-
Packaging Type: Clamshell
-
UL Listed: Yes
-
CSA Listed: Yes
-
Country of Origin (subject to change): Taiwan, Province of China
-
Out of Package Height (in): 0.75
-
Out of Package Width (in): 0.39
-
Out of Package Length/Depth (in): 1
-
Each in Package Height (in) *: 4.38
-
Each in Package Width (in) *: 2.75
-
Each in Package Length/Depth (in) *: 1.25
-
Each in Package Weight (lbs) *: 0.21
-
Inner Pack Weight (lbs) *: 1.08
