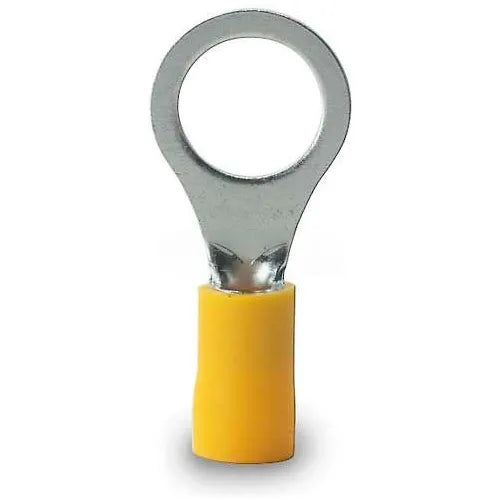

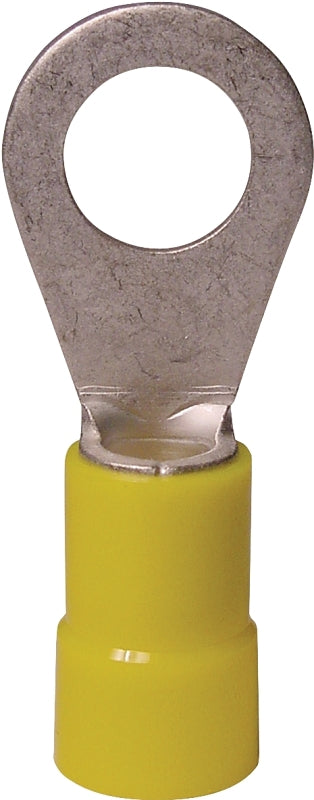

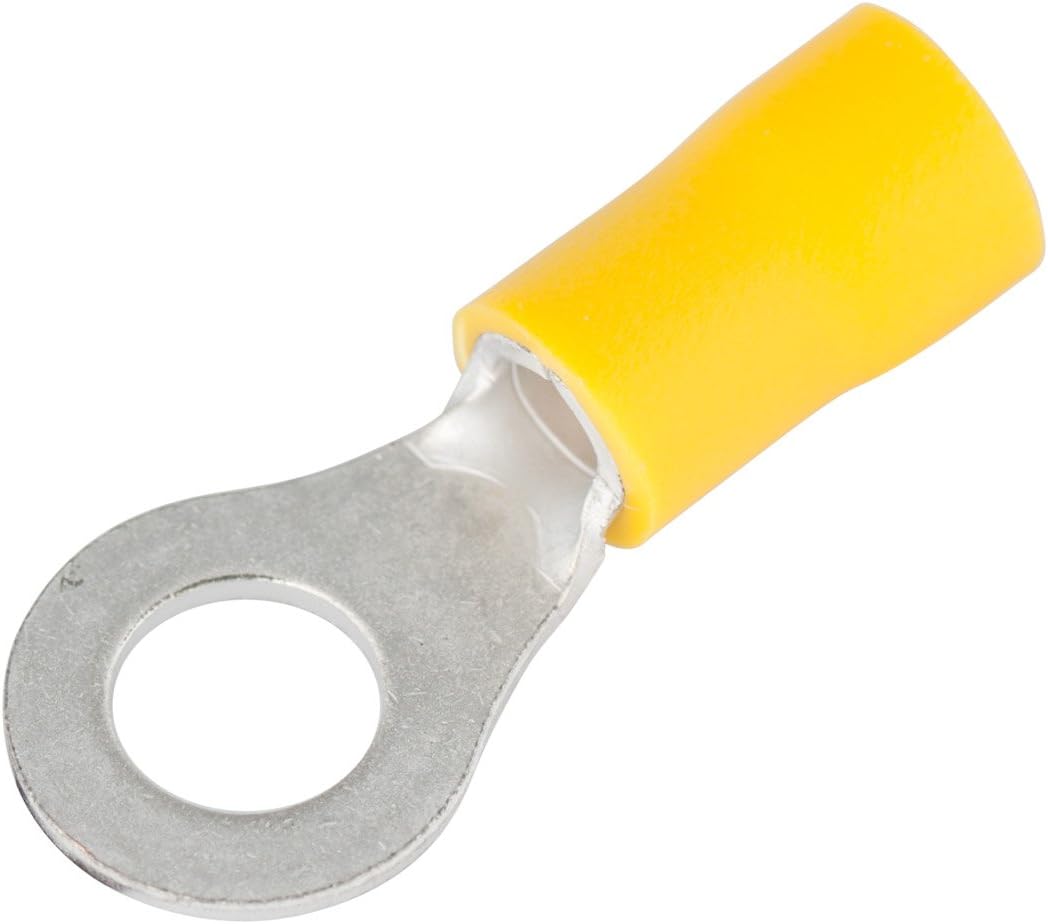

Gardner Bender 10-107 Terminal Ring 12-10 AWG Stud Sz 12-1/4 (50 pk)

Product Description

The Gardner Bender 10-107 Terminal Ring provides quick and reliable crimp-type wire connections. Color-coded by wire gauge size and available in a variety of packaging options and stud sizes. Rated at 600 Volt Max with a temperature rating of 167 °F (75 °C).

• Quick and reliable crimp-type wire connections.
• Color-coded by wire gauge size.
• Available in a variety of packaging options and stud sizes.

Product Highlights

The Gardner Bender 10-107 ring terminals offer high quality and application flexibility for secure wire connections. UL listed for safety.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 10-107
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Color: Yellow
• Material: Plastic
• Item Model Number: 10-107
• Part Number: 10-107
• Rating: 600 Volts
• Wire Range: 12 to 10 AWG
• Stud Size: 1/4"
• Package Quantity: 50
• Manufacturers Part Number: 10-107
• Voltage: 600 V
• Insulation: Vinyl
• Contact Material: Copper
• Max. Voltage: 600V
• Terminal Type: Ring Tongue
• Insulation Type: Vinyl
• Temperature Rating: 167F (75C)
• Out of Package Height (in): 0.37
• Out of Package Width (in): 0.62
• Out of Package Length/Depth (in): 1.25
• Connector Type: Ring
• Insulation Material: Polyvinyl Chloride
• Specification Met: UL
• Maximum Voltage: 600 Volts
• Unit Count: 1.0 Count
• Connector Gender: Male
• Item Package Quantity: 1
• Product Series: General Purpose Ring Terminals
• Description: Ring Terminal, 12-10 Awg, Stud Sz 12-1/4, Yellow, CL/50
• Wire Size Range: 12-10 AWG
• Insulated: Insulated
• Maximum Temperature: 167 °F
• Approvals: cUL, UL
• Voltage Rating: 600 V
• Application: For general purpose
