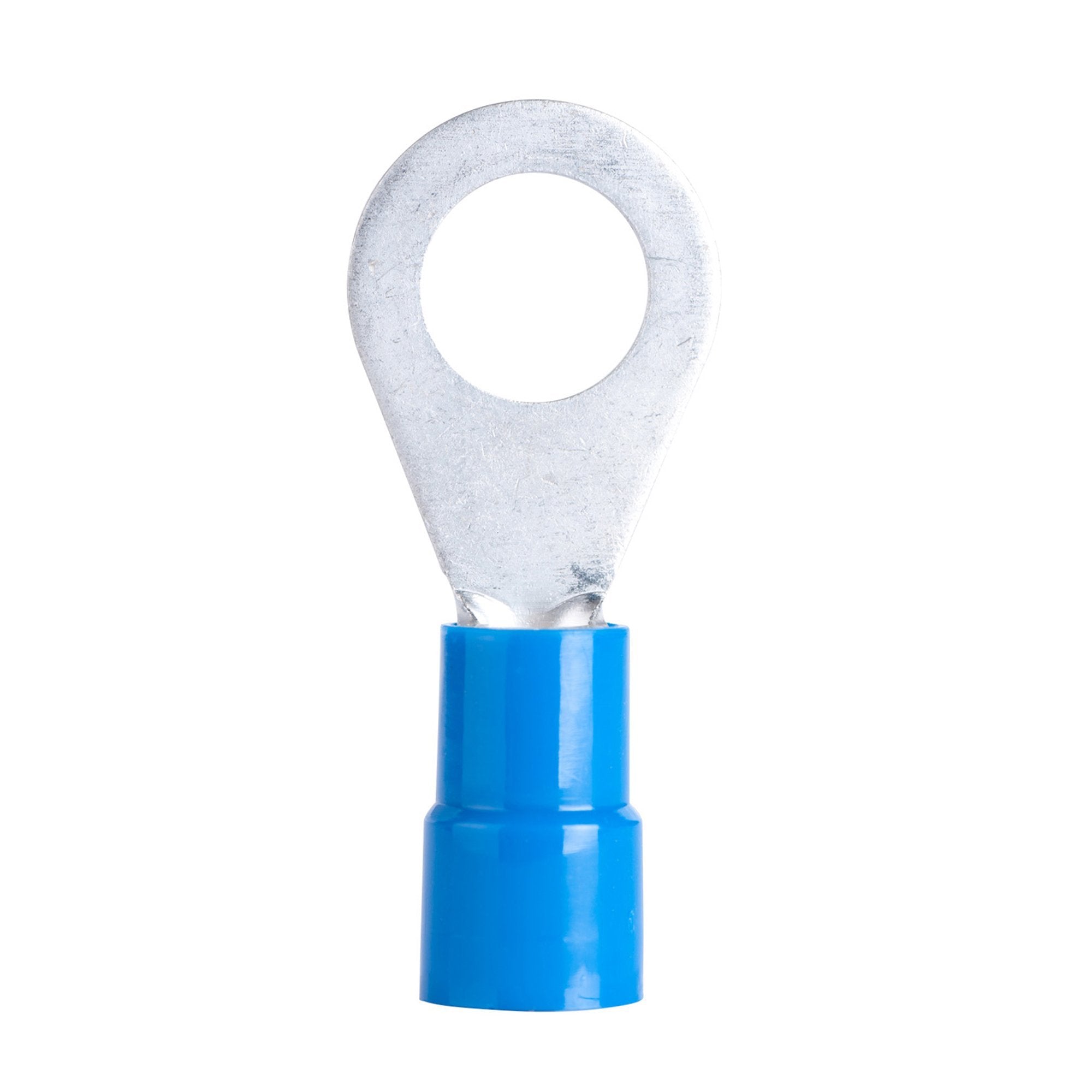

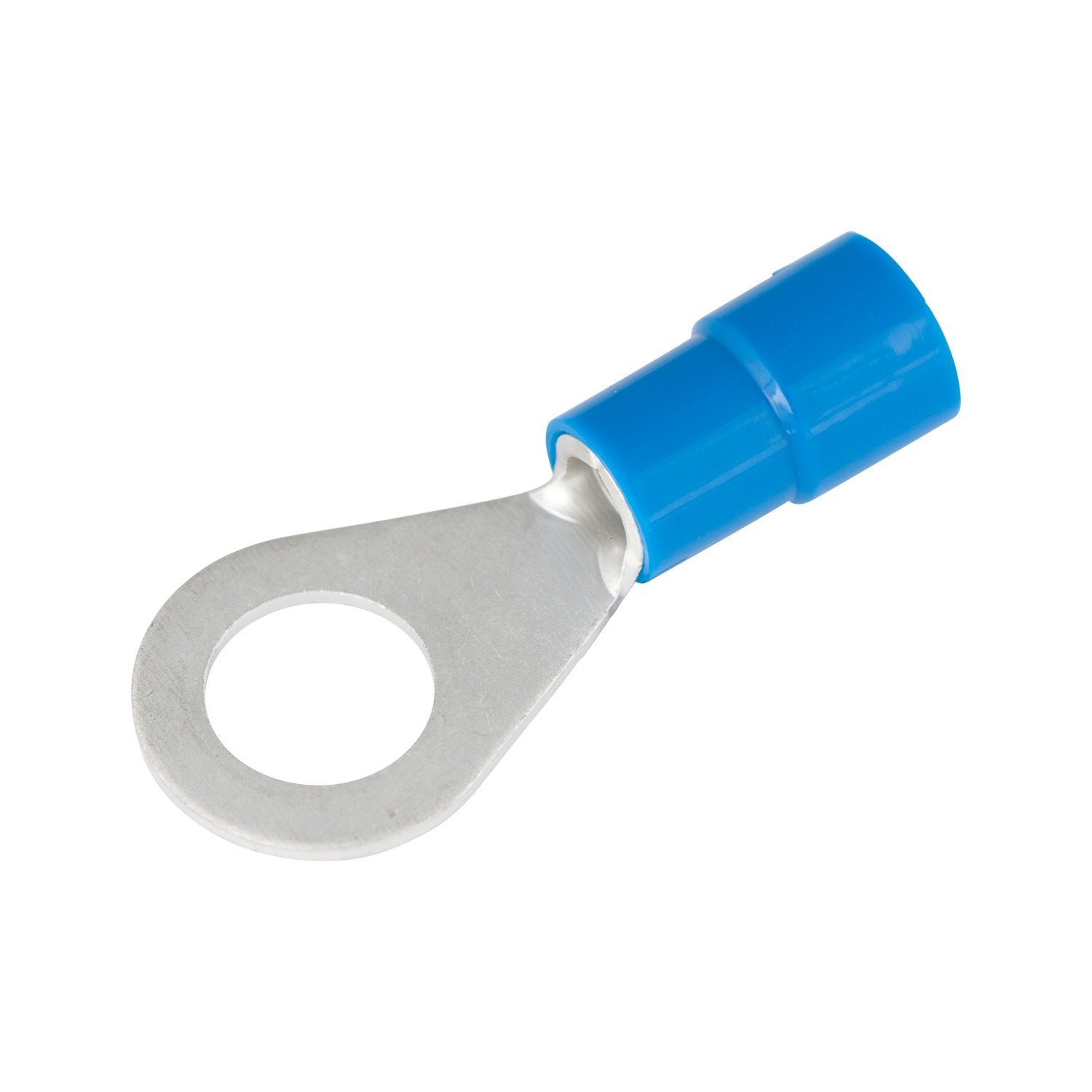

Gardner Bender 10-103 Electrical Ring Terminal 16-14 AWG (4 to 6 Stud)

Product Description

The Gardner Bender 10-103 electrical ring terminals feature color-coded barrels denoting industry standard wire gauge sizes. These crimp-type wire terminals are vinyl insulated, providing protection and a 600V maximum rating. Temperature ratings for the complete line are 75°C (167°F). These terminals offer quality and durability for various circuit protection devices.

• Industry standard color-coded by wire gauge size

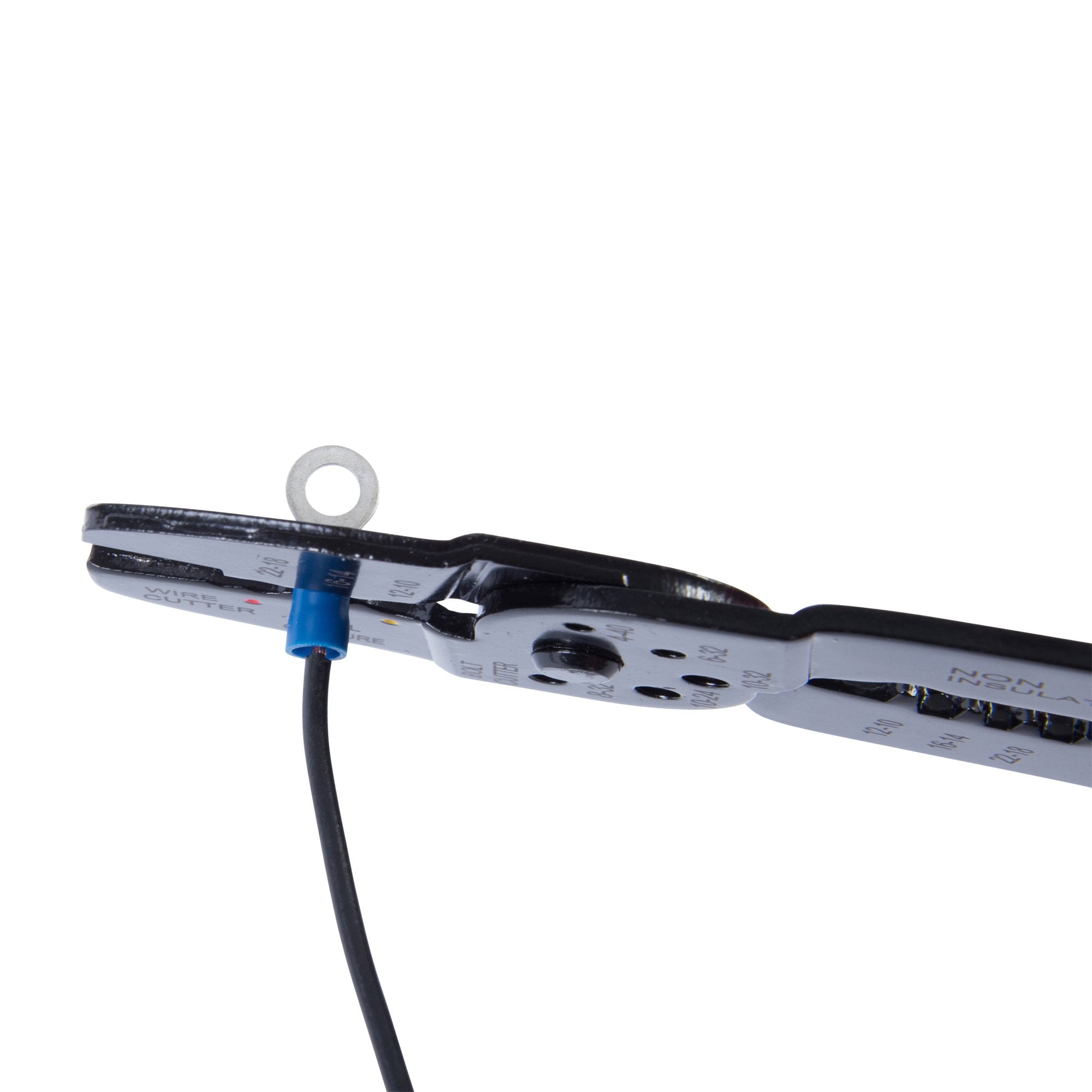

• Quick and reliable crimp-type wire connectors
• UL Listed with both Canadian and U.S. requirements

Product Highlights

Gardner Bender ring terminals offer secure wire connections with vinyl insulation and a 600V rating.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 10-103
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Stud Size: #4, #5, #6
• Wire Gauge: 16-14 AWG
• Connection Type: Crimp
• Insulation: Vinyl Insulated
• Voltage Rating: 600V Max
• Temperature Rating: 75°C (167°F)
• Item: Ring Terminal
• Wire Range: 16 to 14 AWG
• Terminal Type: Ring Tongue
• Insulation Type: Vinyl
• Material: Vinyl
• Manufacturer Part Number: 10-103
• Manufacturer: Gardner Bender
• Product Series: General Purpose Ring Terminals
• Family Series: Gardner Bender Terminals, General Purpose Ring Terminals Series
• Description: Ring Terminal, 16-14 Awg, Stud Sz 4-6, Blue, CL/100
• Insulated: Insulated
• Insulation Material: Vinyl
• Maximum Temperature: 167 °F
• Approvals: cUL, UL
• Net Weight: 0.2 lbs
• Gross Weight: 0.2369 lbs
• Certificate: RoHS Compliant
