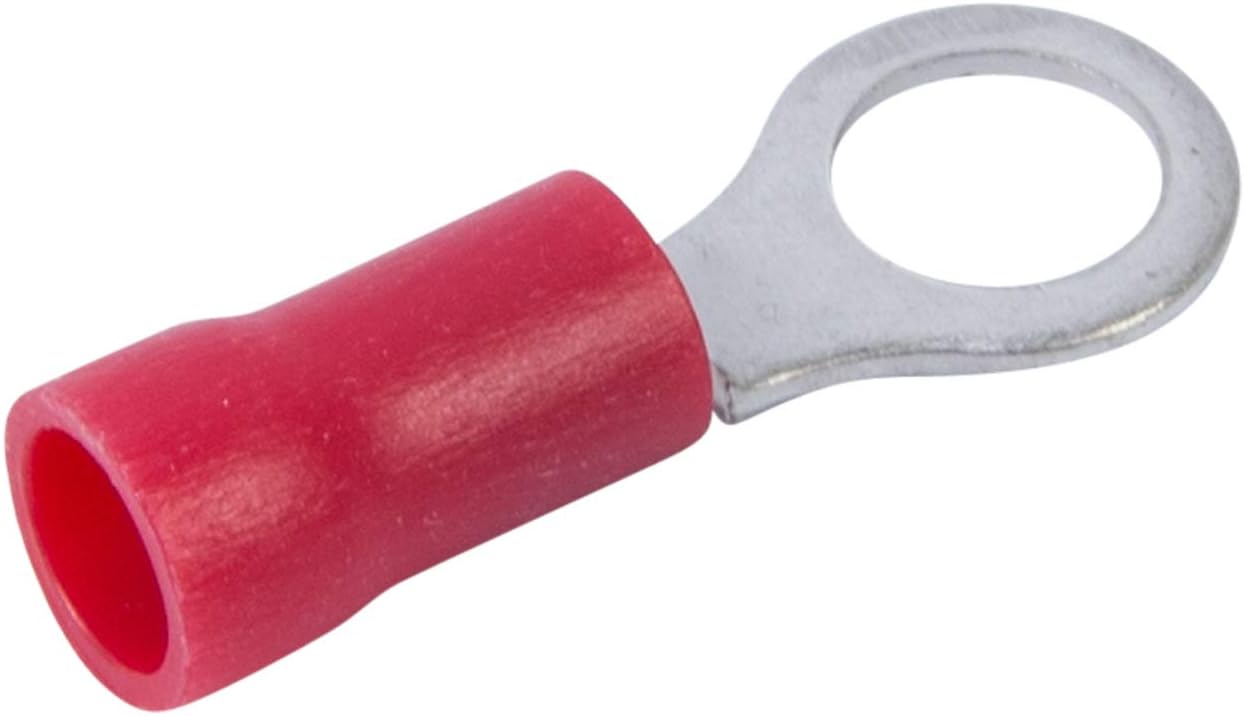

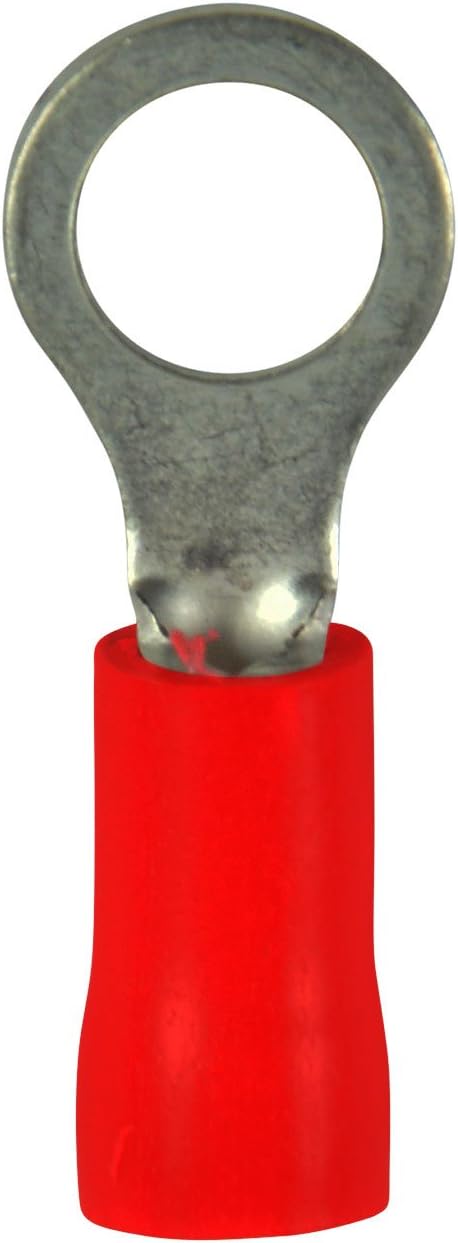

Gardner Bender 10-102 Electrical Ring Terminal 22-18 AWG

Product Description

The Gardner Bender 10-102 Electrical Ring Terminal features an insulated barrel and is designed for crimp connections. Suitable for 22-18 AWG wires, these terminals feature color-coded barrels denoting industry standard wire gauge sizes. The vinyl insulated barrels provide protection and carry a maximum 600V rating. Temperature ratings are up to 167 degrees Fahrenheit.

• Electrical Ring Terminal
• 22-18 AWG
• Insulated Barrel

Product Highlights

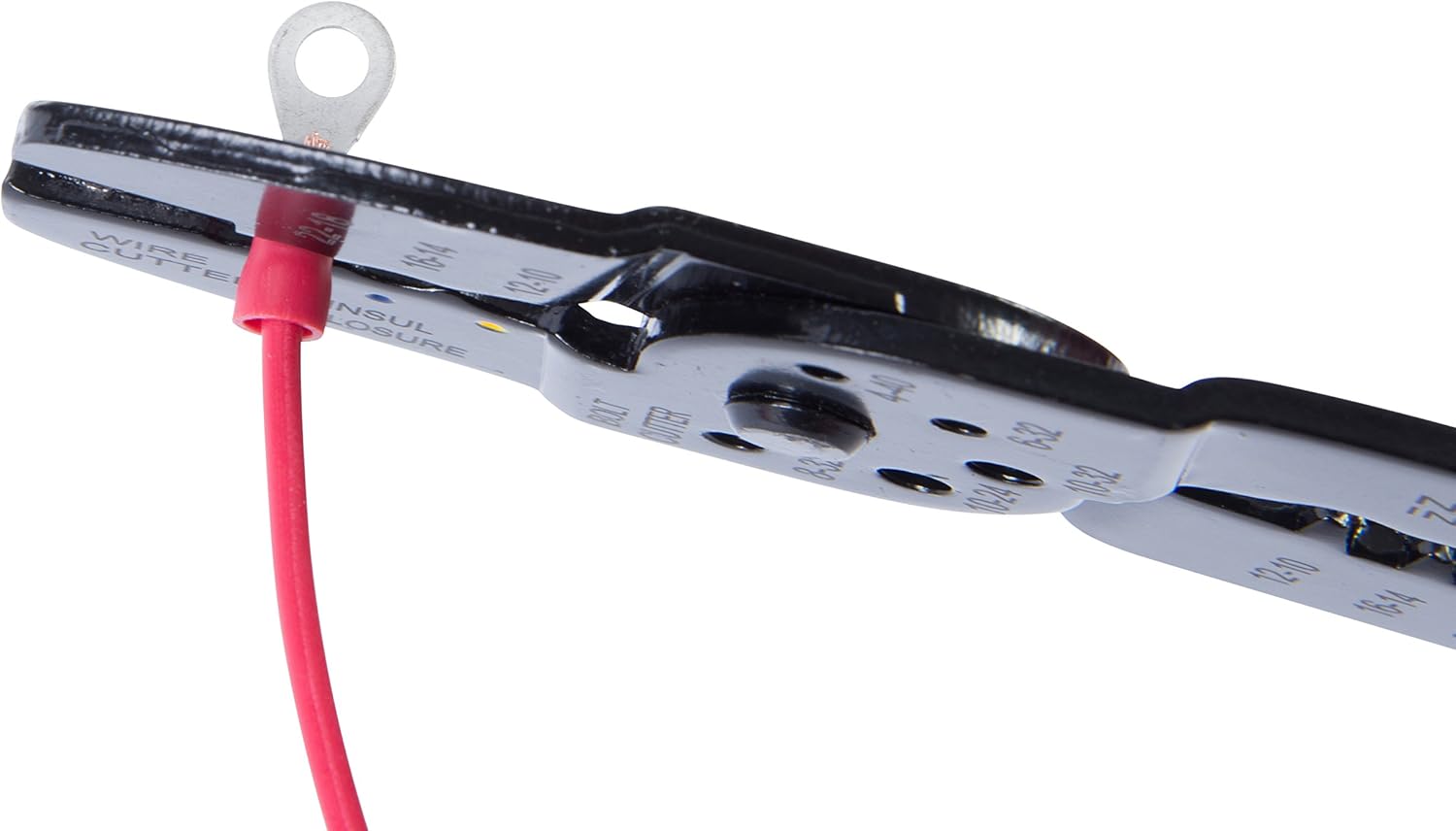

These Gardner Bender ring terminals offer reliable crimp-type wire connections and are UL Listed for both Canadian and U.S. requirements.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: 10-102

Technical Specifications

• Color: Red
• Gauge: 18.0
• Terminal: Ring Terminal
• Connector Type: Crimp
• Maximum Voltage: 600 Volts
• Contact Material: Alloy Steel
• Specification Met: UL
• Measurement System: Imperial
• Temperature Rating: 167 degree fahrenheit
• Batteries Included?: No
• Batteries Required?: No
• Insulation Material: Polyvinyl Chloride
• Brand: Gardner Bender
• Material: Copper
• Number of Items: 1
• Unit Count: 1.0 Count
• Part Number: 10-102
• Item model number: 10-102
• Item Package Quantity: 1
• Wire Gauge: 22-16 AWG
