Haydon H-132-OS Galvanized Unistrut Channel

Product Description

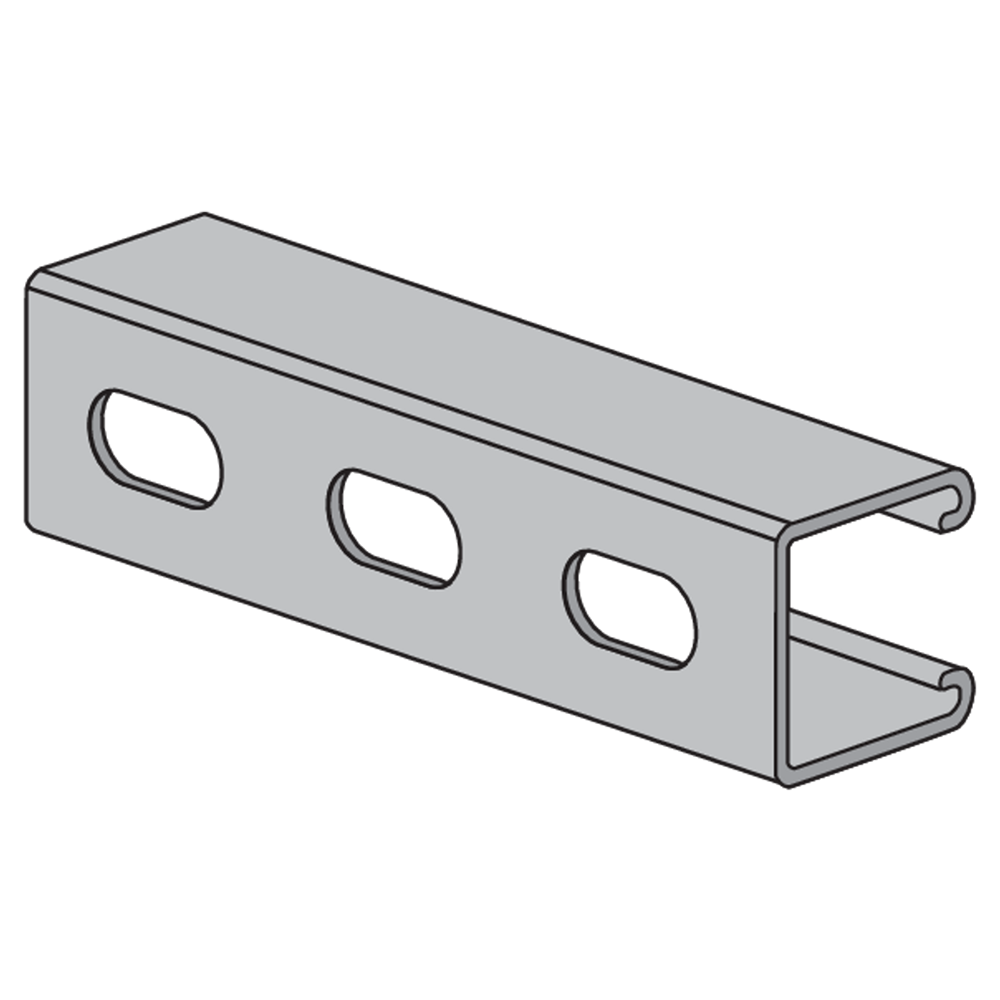

The HAYDON H-132-OS is a galvanized Unistrut channel, measuring 1-5/8 in. x 1-5/8 in. x 12 GA. This slotted channel is constructed from steel with slots on the back measuring 9/16 in. x 1-1/8 in. and spaced 2 inches apart. Standard lengths are 10' and 20'.

• Galvanized
• 1-5/8 in. X 1-5/8 in. X 12 GA
• Holes on 2 in. centers

Product Highlights

The HAYDON H-132-OS Unistrut channel is ideal for various installation applications. It is available in pre-galvanized, plain, powder-coated, zinc trivalent, aluminum, stainless steel 304, and 316L.

Product Information

Standard Information

• Brand: HAYDON
• Manufacturer Part Number: H-132-OS

Technical Specifications

• Brand: HAYDON
• MPN: H-132-OS
• Category 1: Supplies
• Category 2: Installation
• Category 3: Unistrut Channel
• Configuration: 1⁵/₈" x 1⁵/₈"
• Gauge: 12 Gauge
• Materials: Aluminum (Type 6063T6) – ASTM B-221, Plain Steel – ASTM A-1011-SS33, Pre-Galvanized Steel – ASTM A-653-SS33, Stainless Steel (Type 304 & 316L) – ASTM A-240
• Finishes: Hot Dipped Galvanized – ASTM A-123, Powder-Coated – ASTM B-117, Zinc Trivalent Chromium (ZTC) – ASTM B-633-85
• Type: Slotted Channel
• Height: 1-5/8 in.
• Width: 1-5/8 in.
• Holes: Slots-Back, 9/16 in.x1-1/8 in., 2 in. OC
• Length: 10 ft.
• Manufacturer Series: H-Strut
• Depth: 1-5/8 in
• Slot Size: 9/16 x 1-1/8 in
