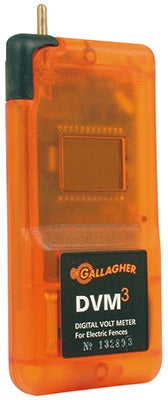

Gallagher North America G503014 Digital Fence Voltage Meter

Product Description

The GALLAGHER NORTH AMERICA G503014 is a digital voltage meter designed for diagnosing and troubleshooting electric fence systems. It reads fence voltage in real time, helping technicians and fence installers trace line shorts and locate faults quickly. The meter operates in 100-volt increments for readings under 10 kilovolts and switches to 1,000-volt increments for readings between 10 kilovolts and 12 kilovolts. It includes a built-in earth stake for ground connection and a fence stud for direct, tool-free contact with the fence wire. Power comes from a single 9-volt battery rated for 6 to 12 months of service life. The unit activates automatically when a fence pulse is detected, making it straightforward to use in the field.

This meter is suited for use with both battery-powered and mains-powered electric fence energizers. A key capability is its ability to read voltage from battery energizers even when those energizers are operating in battery save mode, which is a common diagnostic gap with standard voltage testers. It is appropriate for residential, agricultural, and light commercial fence installations where ground performance verification and fault isolation are routine service tasks. The water-resistant housing supports outdoor use in variable weather conditions.

Key Features

• Reads fence voltage in 100-volt increments for values under 10 kilovolts
• Reads fence voltage in 1,000-volt increments from 10 kilovolts to 12 kilovolts
• Compatible with battery energizers in battery save mode
• Built-in earth stake for fast ground connection without additional hardware
• Fence stud contact point for quick, tool-free fence wire connection
• Auto power-on activation triggered by detected fence pulse
• Low battery indicator display and water-resistant construction

Compatibility

Designed for use with electric fence energizers and fence line systems where voltage measurement and fault tracing are required. Suitable for battery and mains energizer types.

Installation Notes

This meter is a diagnostic instrument used by fence installers and agricultural equipment technicians. No permanent wiring is required. Before probing an energized fence line, confirm the voltage range displayed is within the meter operational limits of 12 kilovolts maximum. Keep the earth stake in firm soil contact for accurate ground reference readings.
