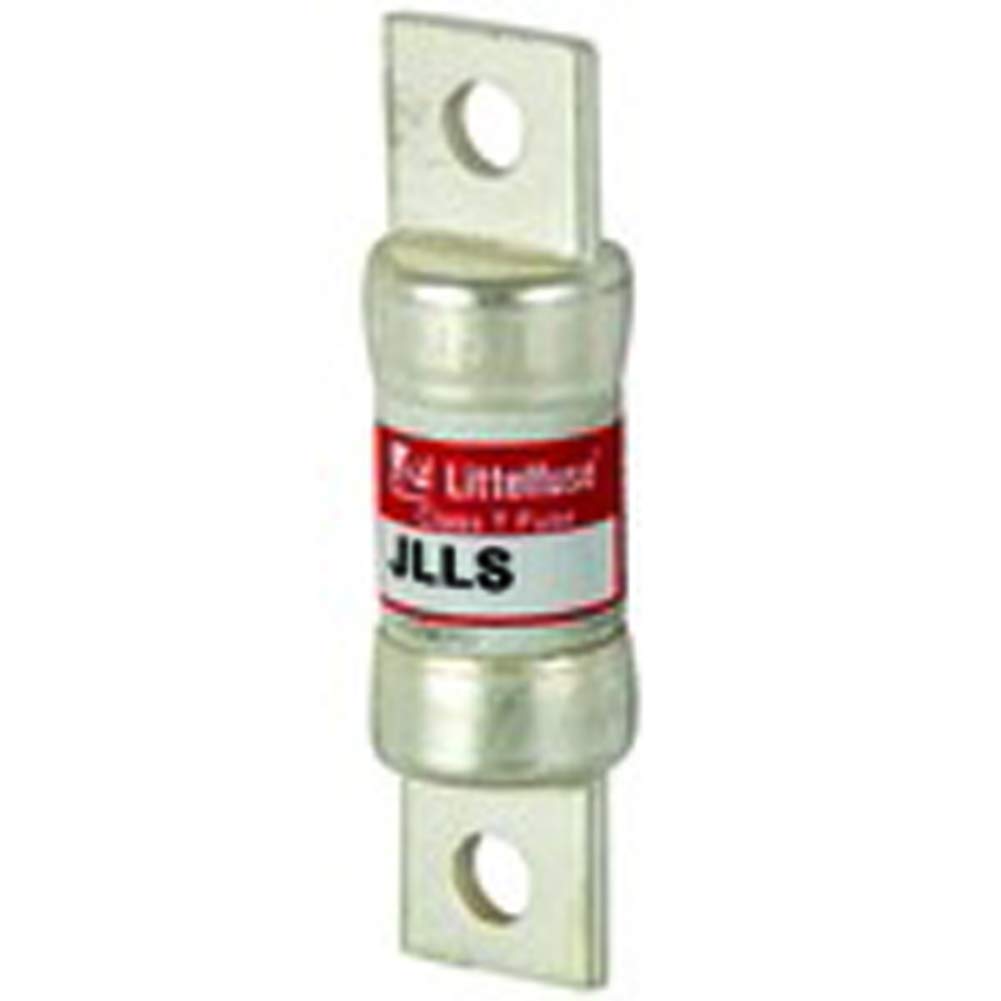

Littelfuse JLLS090 Class T Fast Acting Fuse 90A 600VAC/300VDC

Product Description

The Littelfuse JLLS090 is a Class T fast-acting fuse designed for high voltage electrical systems. Rated at 90A and 600VAC/300VDC, it offers robust protection in various industrial applications. This fuse ensures quick interruption of excessive currents to maintain the integrity of your equipment.

• High voltage rating
• Fast-acting design
• Suitable for industrial use

Product Highlights

Efficiently safeguards electrical systems from overcurrent and short circuits. Ideal for use in high-temperature applications, providing reliable and effective protection for motors, transformers, and other critical components.

Product Information

Standard Information

• Catalog Number: JLLS090
• Manufacturer: Littelfuse
• Brand: Littelfuse

Technical Specifications

• Type: Current Limiting
• Class: T
• Series: JLLS
• Amperage Rating: 90A
• Voltage Rating: 600VAC/300VDC
• Body Size: 0.828 inches Dia x 2.953 inches L
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Knife Blade
• Country of Origin: Mexico
• Standards/Approvals: UL 248-15, UL E81895, CSA Certified, RoHS
• Interrupt Rating: 20/200 kA
