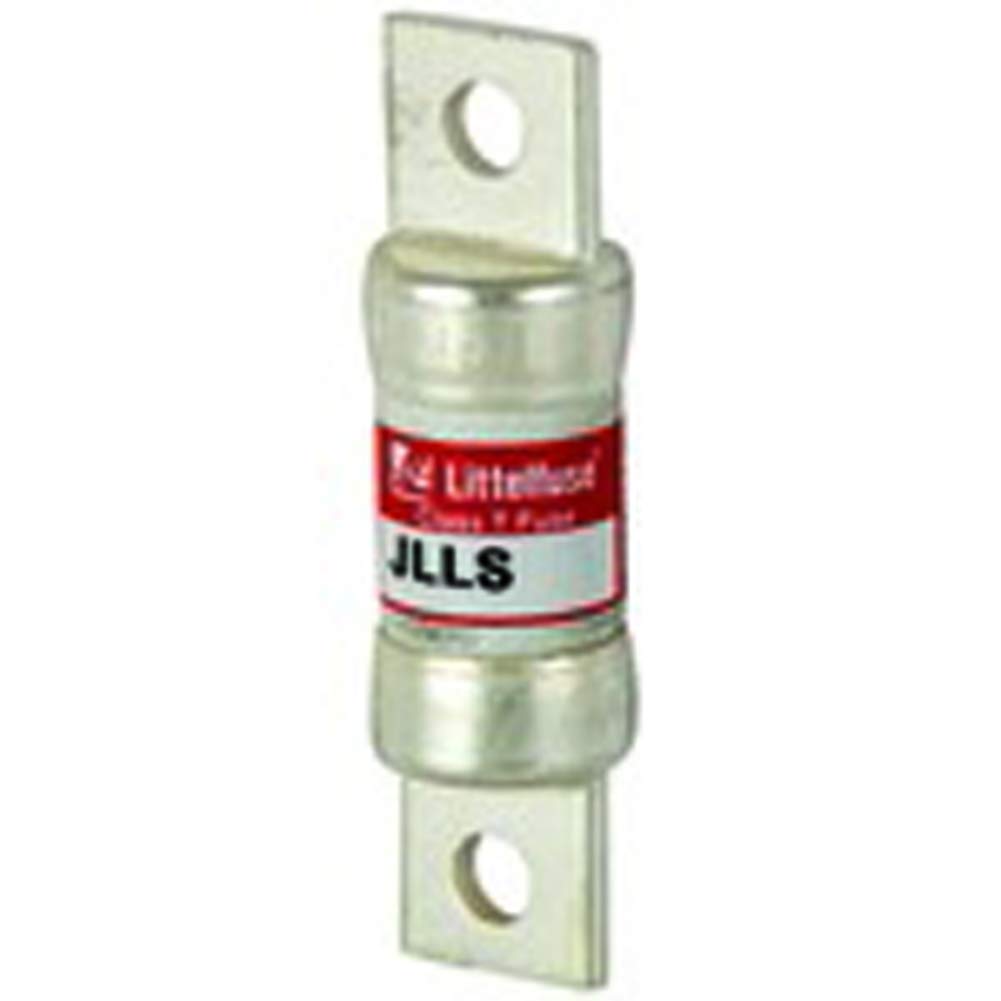

Littelfuse JLLS100 Fuse 600V 100A Class T

Product Description

The Littelfuse JLLS100 is a 100 ampere, 600V Class T fuse. It offers fast-acting overload and short circuit protection for non-inductive circuits and equipment. Its compact design is ideal for installations where space is limited.

• Fast-acting overload protection
• Compact Class T size
• Rated for 600V AC

Product Highlights

This Littelfuse JLLS100 Class T fuse provides reliable protection for various electric applications including individual electric services and meters. Suitable for use in main switches providing compact protection for meter stacks, its fast-acting nature makes it highly effective in safeguarding sensitive components.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse
• Sub Brand: POWR-GARD JLLS Series
• Catalog Number: JLLS100

Technical Specifications

• Voltage Rating: 600 Volt AC/300 Volt DC
• Amperage Rating: 100 Ampere
• Size: 2.95 inches length, 0.81 inches diameter
• Interrupt Rating: 200kA at 600V AC, 20kA at 300V DC
• Mounting Type: Blade
• Body Material: Melamine
• Response Time: Fast Acting
• Standards: UL 248-15, CSA Certified, RoHS
• Country of Origin: Mexico
