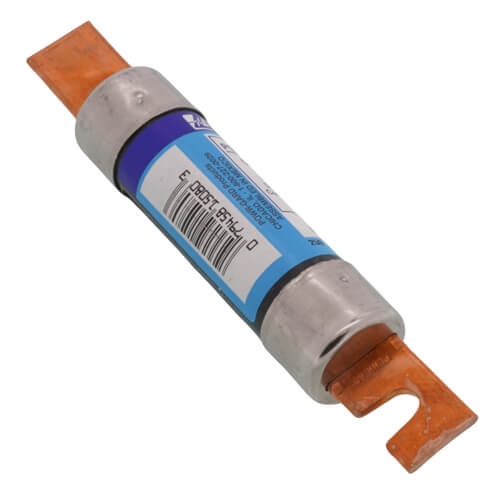

Littelfuse FLNR150 Time-Delay Fuse 250V 150A Class RK5

Product Description

The Littelfuse FLNR150 fuse is designed for reliable circuit protection. Its dual-element, time-delay feature makes it highly effective in industrial applications, including motors and general purpose circuits.

• Dual-element structure for efficient protection
• Time-delay functionality allows tolerance to temporary overloads
• High interrupting capacity of 200kA at 250V

Product Highlights

Among its standout features, the FLNR150 fuse offers excellent durability and performance, ensuring safety in high-demand environments. This fuse can handle up to 150 amps with a voltage up to 250V, making it ideal for severe industrial applications.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLnr150
• Category: Time Delay Fuses
• Applications: Suitable for Service entrance switches, switchboards, motor control centers, and more.

Technical Specifications

• Voltage Rating: 250V
• Current Rating: 150 Amp
• Interrupting Rating: 200,000 A.I.R.
• Fuse Size: 7-1/8 inches L x 1-19/32 inches dia.
• Class: RK5
• Body Material: Fiberglass
• Element: Dual
